Stator
Repair manual
Seals
Leaking seals must be replaced.
Changing the choker seal:
1. Remove the choker (figure 91, point C) fastening screws (6 pcs).
2. Pull the choker off.
3. Remove the old seal (figure 93).

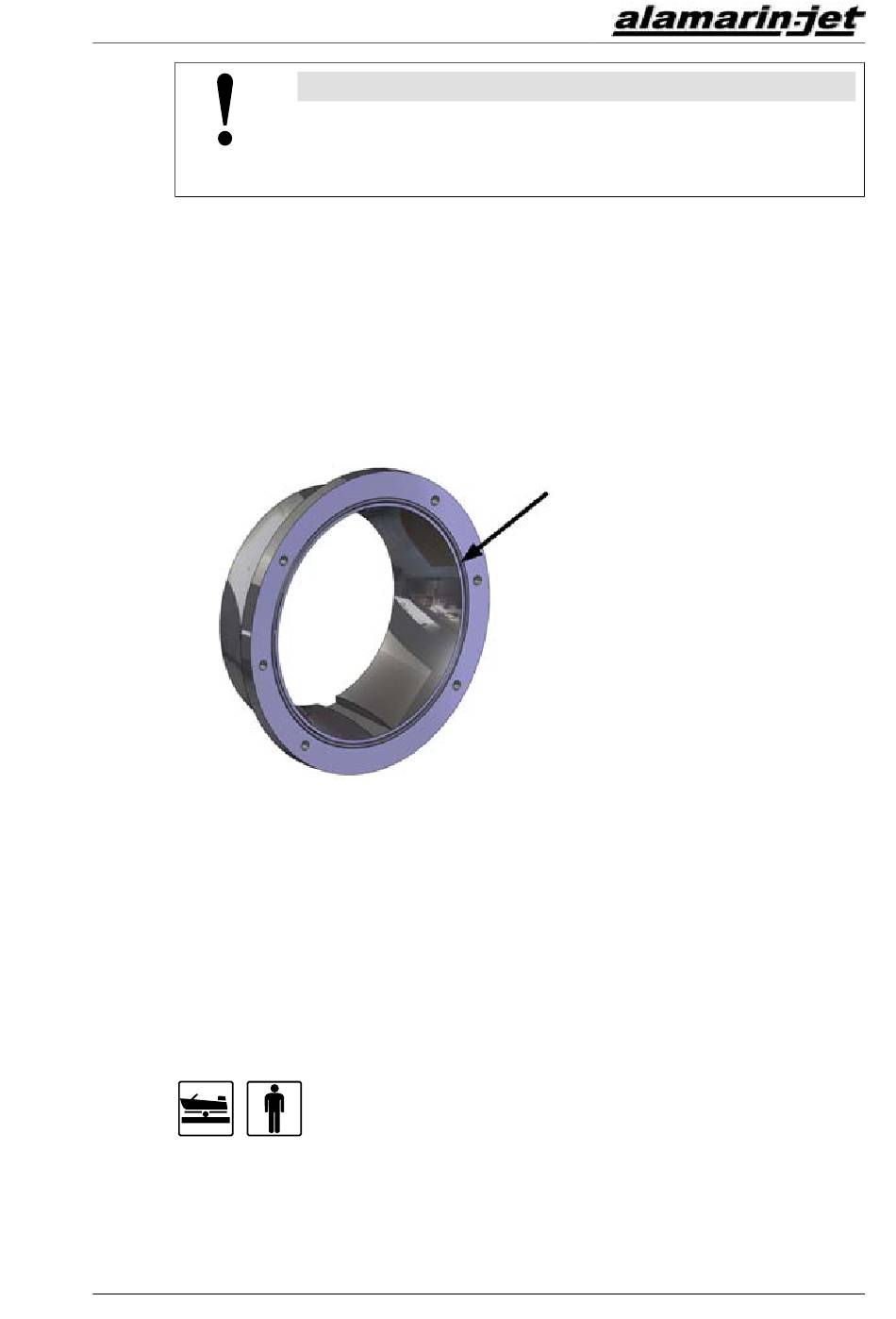

Figure 93. Choker seal
4. Place the new seal in the groove with waterproof petroleum jelly (such as
Shell Gadus S2 V220AC).
5. Fasten the choker back into place.
The tightening torque of the fastening screws is 10 Nm. Use a thread
locking compound (such as Loctite 242) for the fastening.
6.3. Installing the stator
1. Ensure that the stator seal is undamaged and the dowel pins are in place
either in the stator or the impeller tunnel (figure 94).
KM/285/EN/1.1.0
NOTE!
Bare aluminium areas must be painted when welding the
stator. Use paints suitable for aluminium. Check the correct
paint type from the paint supplier.
