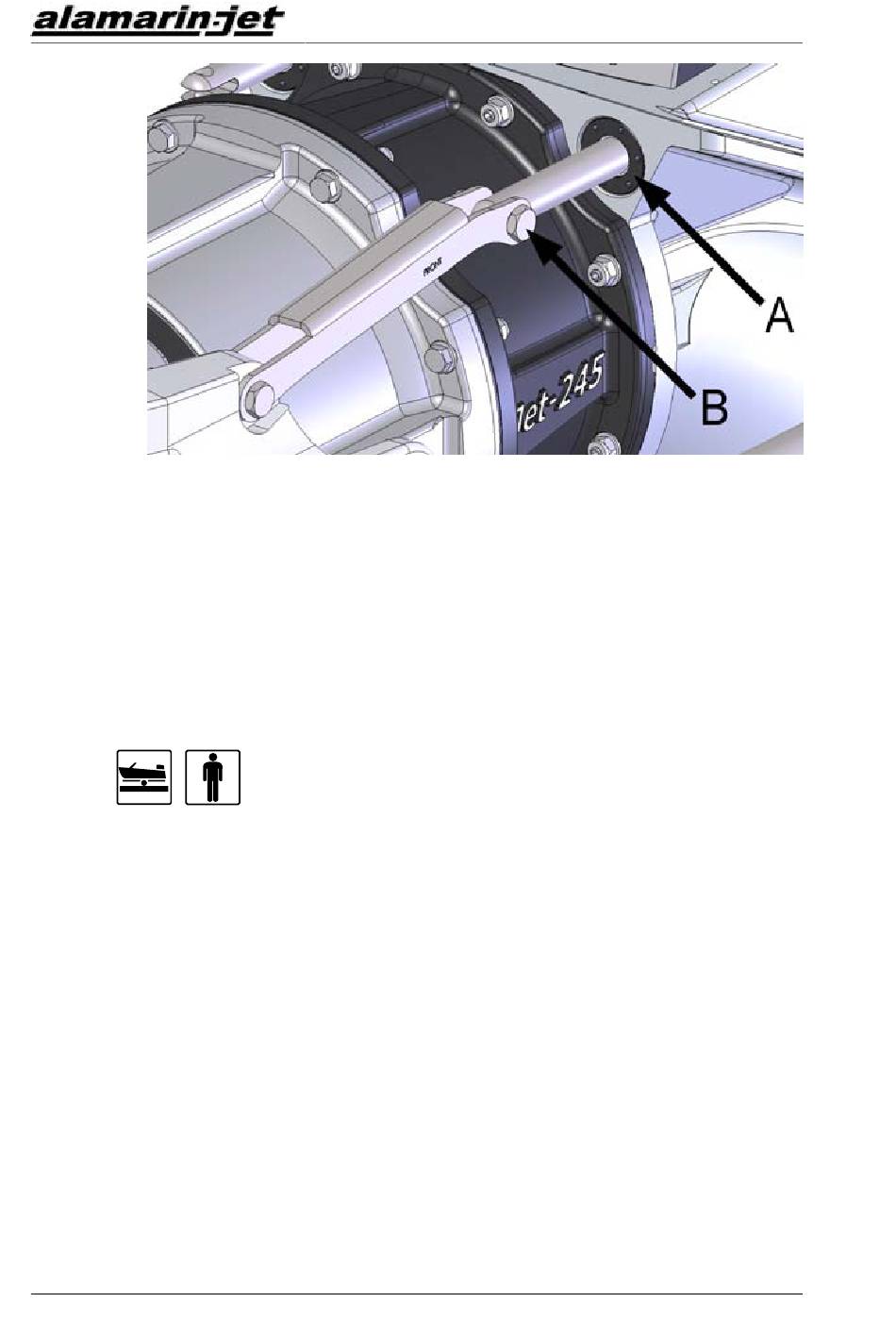

Figure 61. Cylinder rear end seal
2. Unscrew the seal sleeve using the holes in the sleeve.
3. Install the new sleeve, making sure to apply some sealing compound (such
as Sikaflex 291i) to the thread.
4. Attach the cylinder's intermediate bar joint screw if the cylinder is
installed in place (figure 61, point B).
4.2.3. Installing the cylinder
The cylinder is installed in the reverse order to which it was removed.
1. Clean the cylinder attachment hole and thread in the frame (figure 62,
point A).
2. Screw the locking nut on to the thread at the end of the cylinder in the
correct position (figure 62, point B).
3. Screw the cylinder onto the threads in the frame. It is a good idea to apply
some lubricant to the thread to prevent it from seizing up (figure 62, point
C).
