Main shaft and bearing
Repair manual
5. Remove excess adhesive compound from the hole (figure 35, point D).
6. Install the sleeve at the end of the shaft on to the shaft along with the o-
ring.
The correct installation sequence is illustrated in figure 36.
Use thread locking compound (such as Loctite 243) on the fastening screw
in order to prevent any unintentional loosening of the screw.

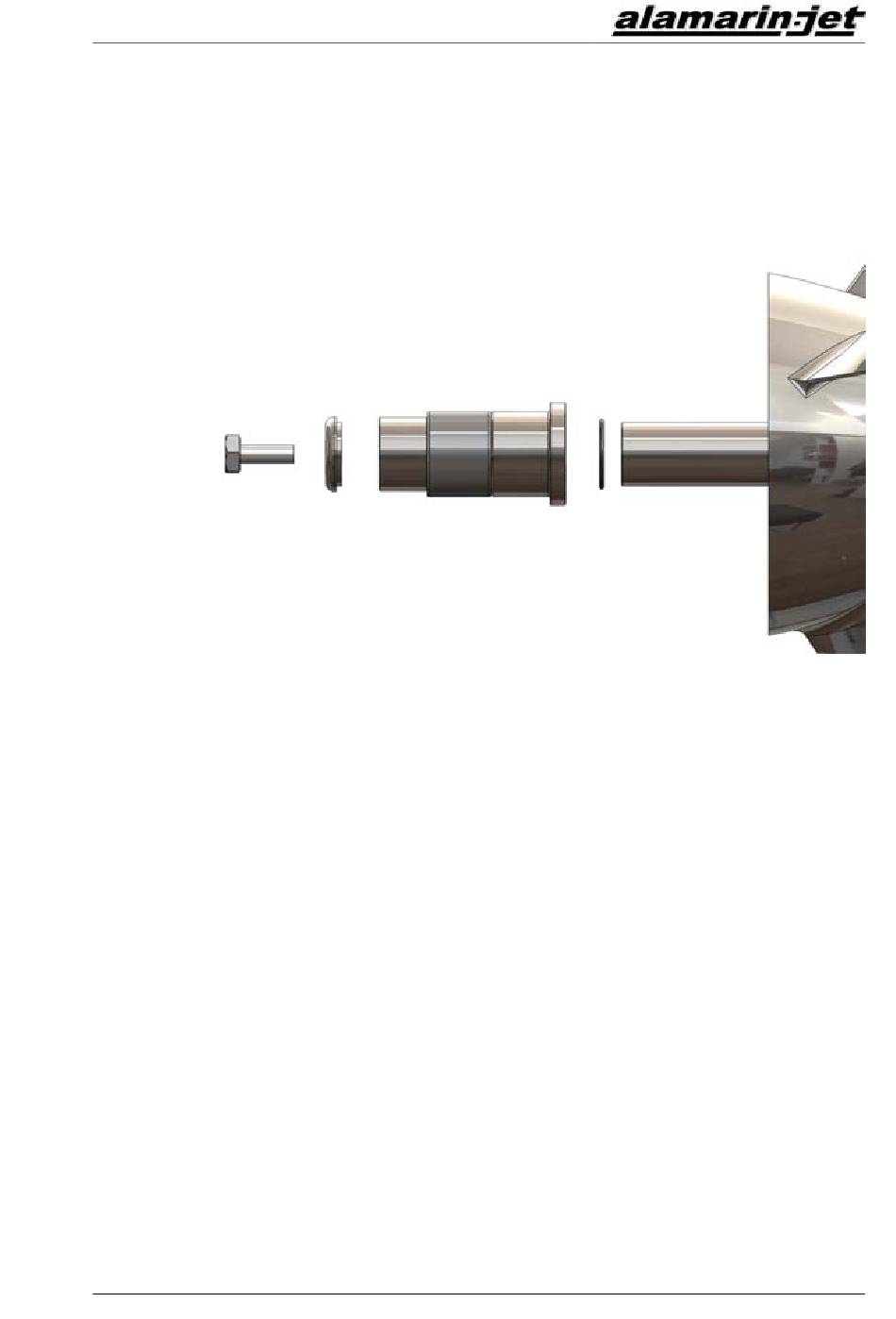

Figure 36. Installation sequence of the sleeve
7. Install the stator (section 6.3.
2.3. Intermediate shaft
The intermediate shaft is the transmission shaft between the motor and jet.
Usually, the intermediate shaft has been acquired and installed by the boat
manufacturer.
The most common types of intermediate shaft are the constant speed shaft and
the cardan shaft. In addition, various flexible shaft couplings are used.
The intermediate shaft is attached to the jet's coupling flange and the flywheel
or gearbox. An adapter flange can be used between the jet and the shaft.
The manufacturer's instructions must always be followed in the maintenance,
repair, and installation of the intermediate shaft.
KM/285/EN/1.1.0
, page 69).
Installing the stator
