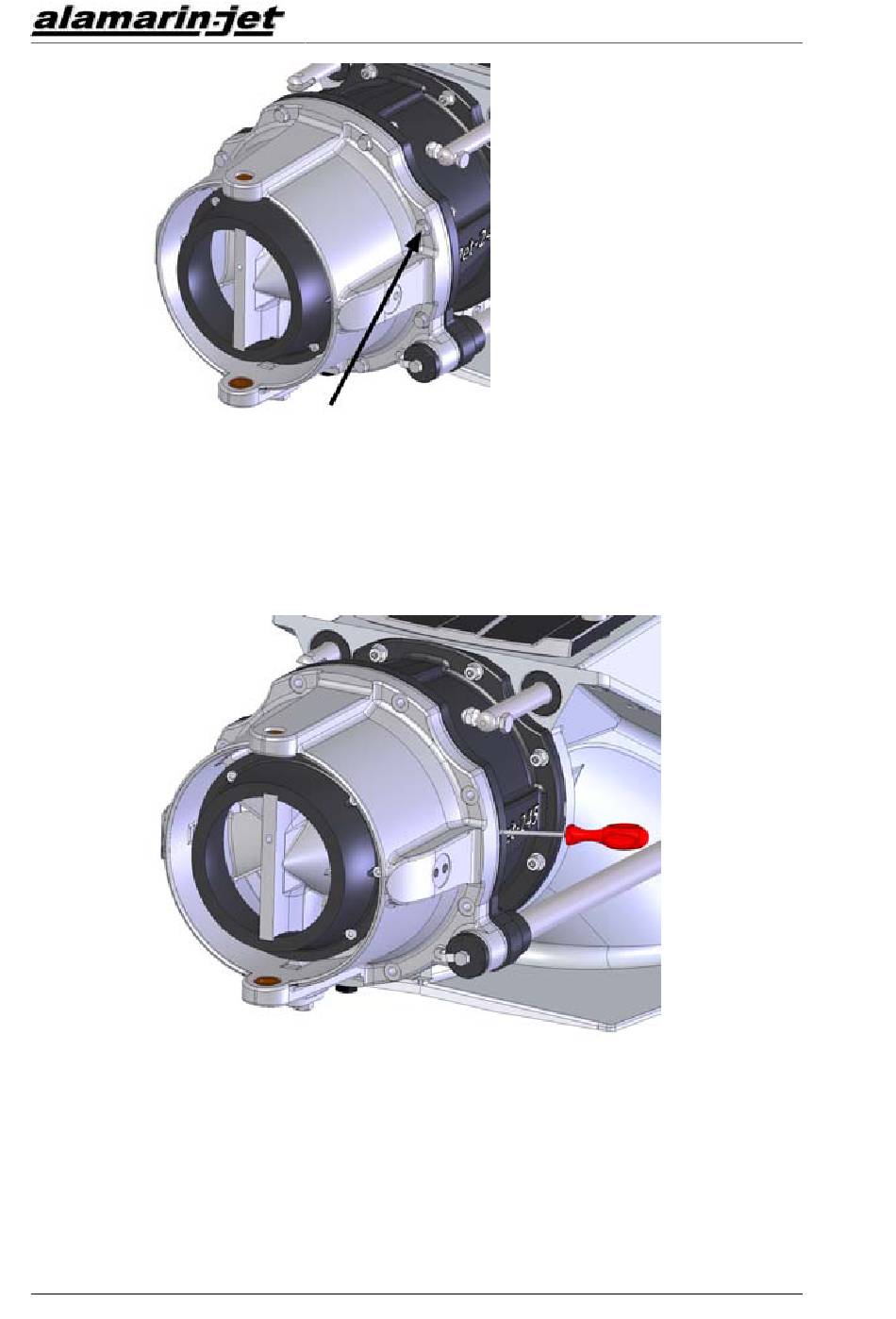

Figure 88. Stator fastening screws
3. Pull the stator off.
If the stator cannot be detached easily, you can use a screwdriver by
inserting it between the stator and impeller tunnel (figure 89). There is a
groove in the seal between the parts for inserting the screwdriver.
Figure 89. Removing the stator
Removing the stator as a complete unit:
1. Remove the joint between the reversing deflector and the hydraulic
cylinder (figure 82) as well as the joint between the steering nozzle and
the steering cylinder (figure 83, point A).
2. Open the stator fastening screws (8 pcs, figure 88).
