Installing the rear-end bearing:
1. Spread adhesive sealing compound around the bearing housing on the
area indicated in figure 34 .

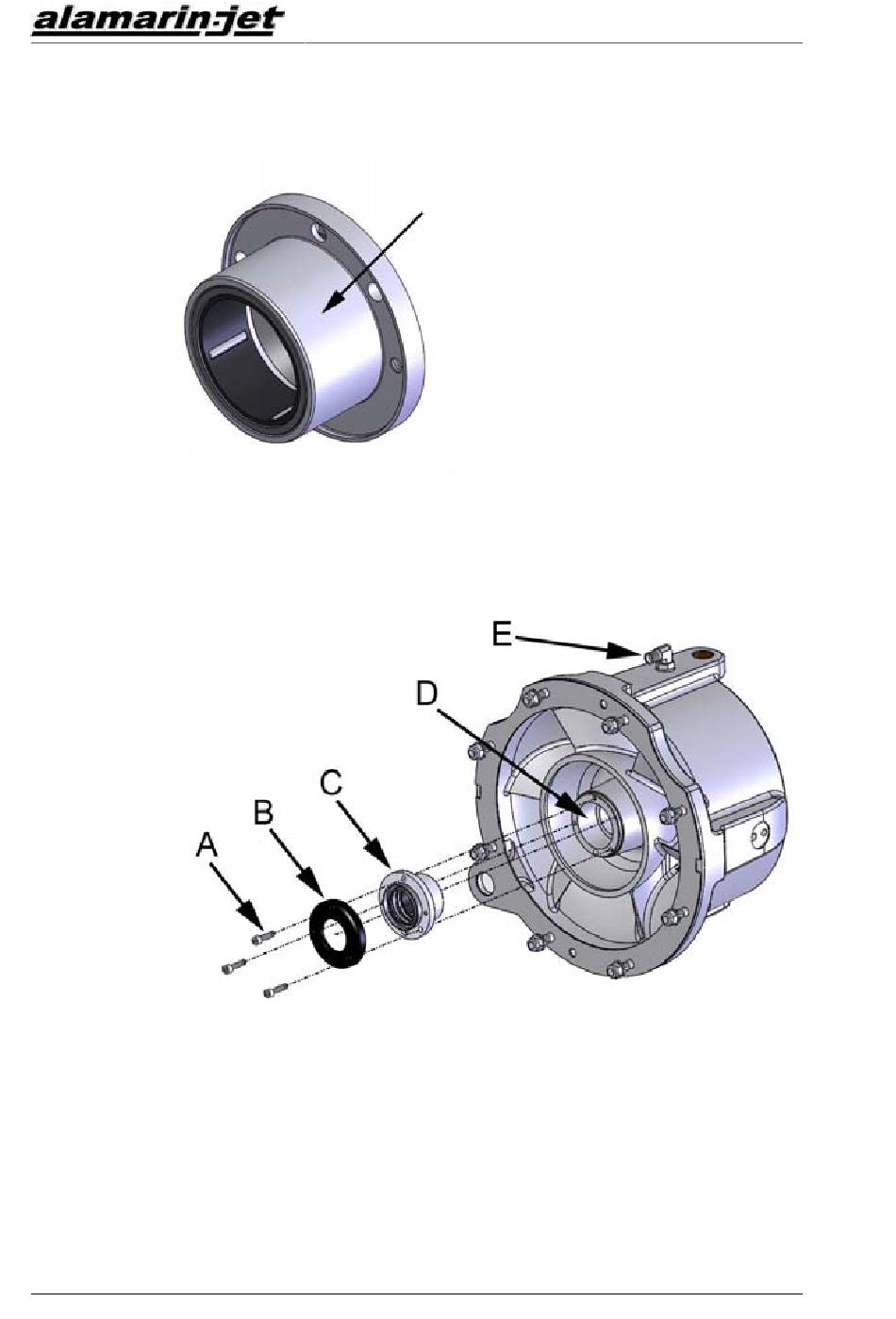

Figure 34. Spreading area of the adhesive compound
2. Clean the rear end bearing lubrication channel located on the stator
(figure 35, point E) of old grease.
Figure 35. Installing the bearing housing cover
3. Push the bearing housing (figure 35, point C) into the stator hole (figure
35, point D) in the correct position so that the three fastening screw
(figure 35, point A) holes are aligned. This is when the housing is in the
correct position.
4. Install the cover (figure 35, point B) in place and tighten the fastening
screws.
Apply thread locking compound (such as Loctite 242) to the screws. The
tightening torque of the screws is 10 Nm.
