Impeller
Repair manual

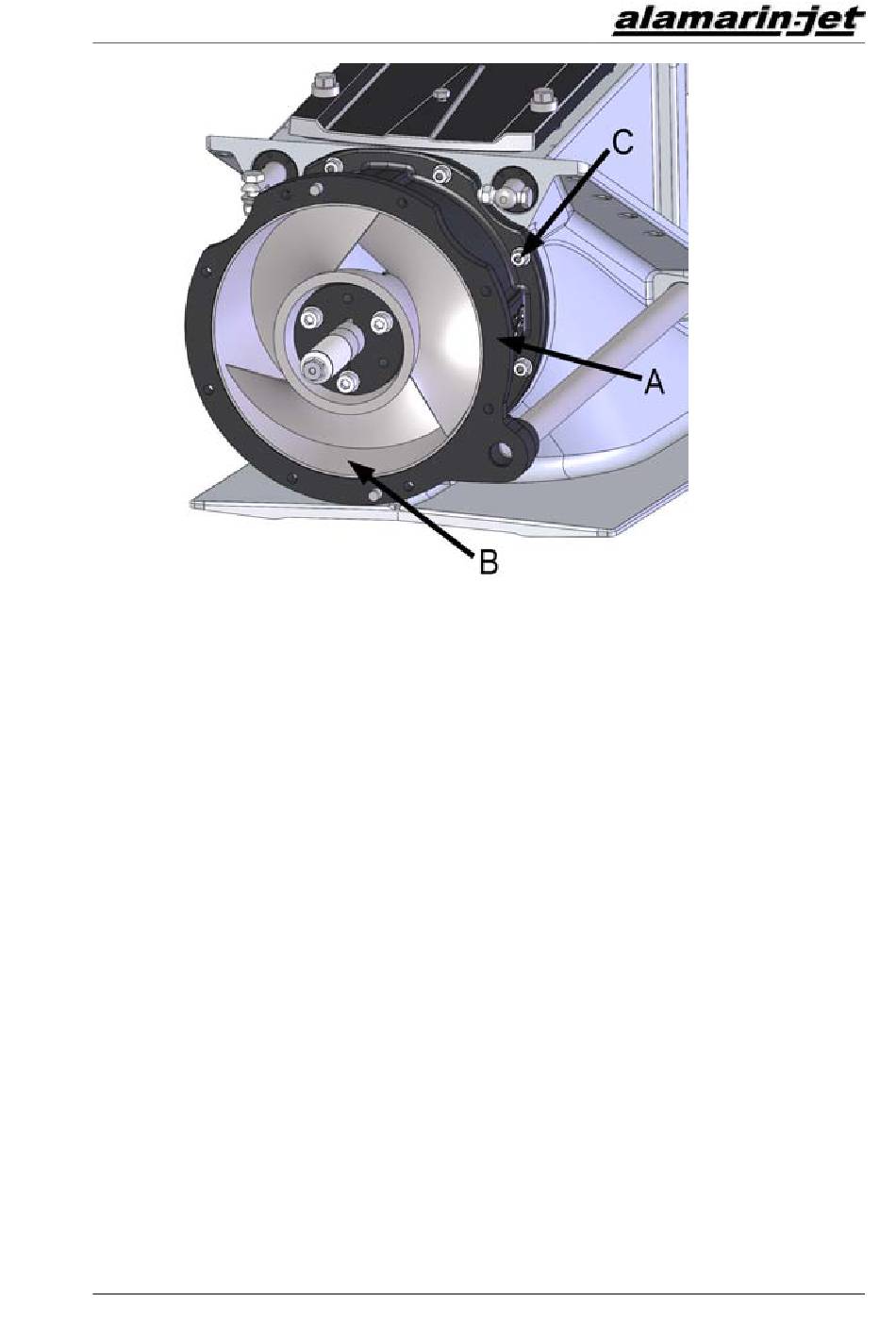

Figure 47. Impeller tunnel
Removing the impeller tunnel
Before removing the impeller tunnel, detach the stator (section 6.1.
, page 65) and the the impeller (section 3.2.
the stator
, page 29).
Impeller
1. Open the connection to the raw water line at the pipe end on the engine
room side (figure 48, point A).
2. Screw the raw water pipe to disconnect it from the rear end (figure 48,
point B). However, you can leave it attached to the frame.
