Main shaft and bearing
Repair manual

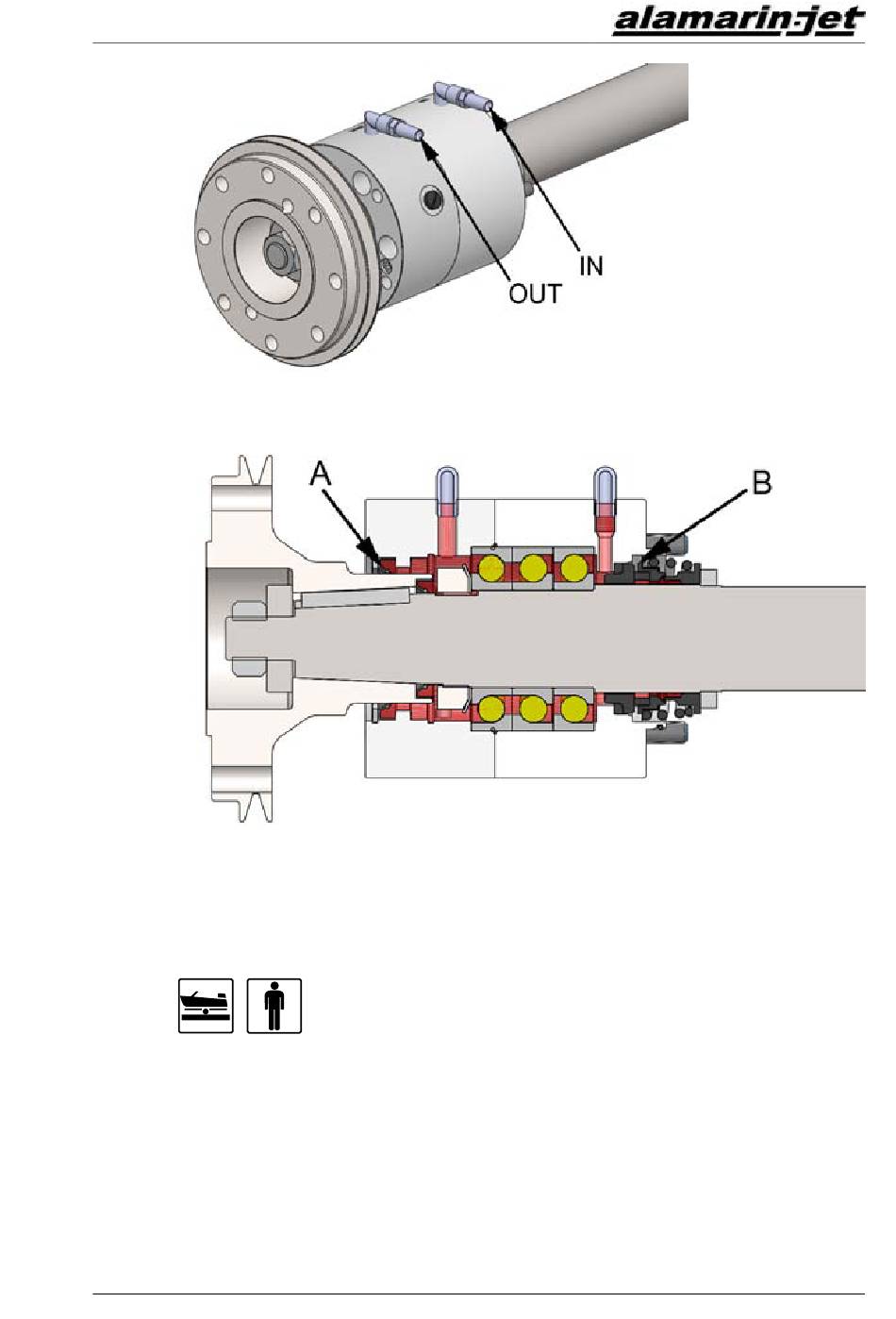

Figure 23. Bearing housing connectors
Figure 24. Lubricating the bearing housing (cross-section)
Lubricating oil is indicated in red.
2.1.4. Installing the front bearing
Assemble the front bearing before installing (section 2.1.3.
, page 11).
bearing
Front bearing installation:
1. Clean the part of the jet's frame where the bearing housing is to be
installed.
The installation surface must be free of any old sealing compound or other
impurities and be straight.
KM/285/EN/1.1.0
Assembly of the front
17
