Alamarin Jet COMBI-FRAME AJ 285 Repair Manual page 48

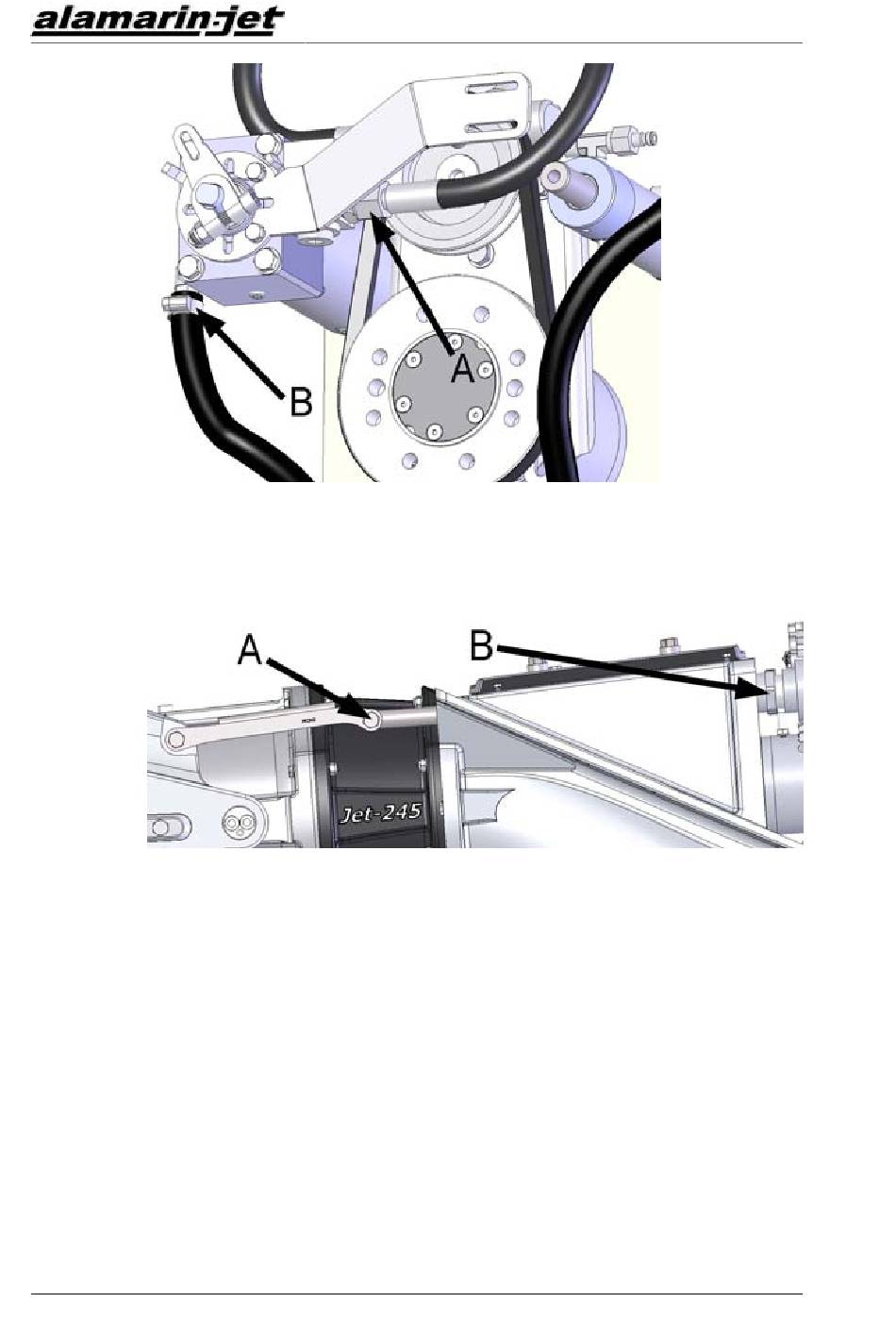

Figure 58. Removing the hoses
3. Open the joint screw of the intermediate bar between the hydraulic
cylinder and the reversing deflector (figure 59, point A).
Figure 59. Removing the cylinder
4. Open the fastening nut of the hydraulic cylinder (figure 59, point B).
If you cannot open the nut with conventional tools, you can use special tool
10718.
5. Unscrew the cylinder from the jet's frame towards the engine room.
