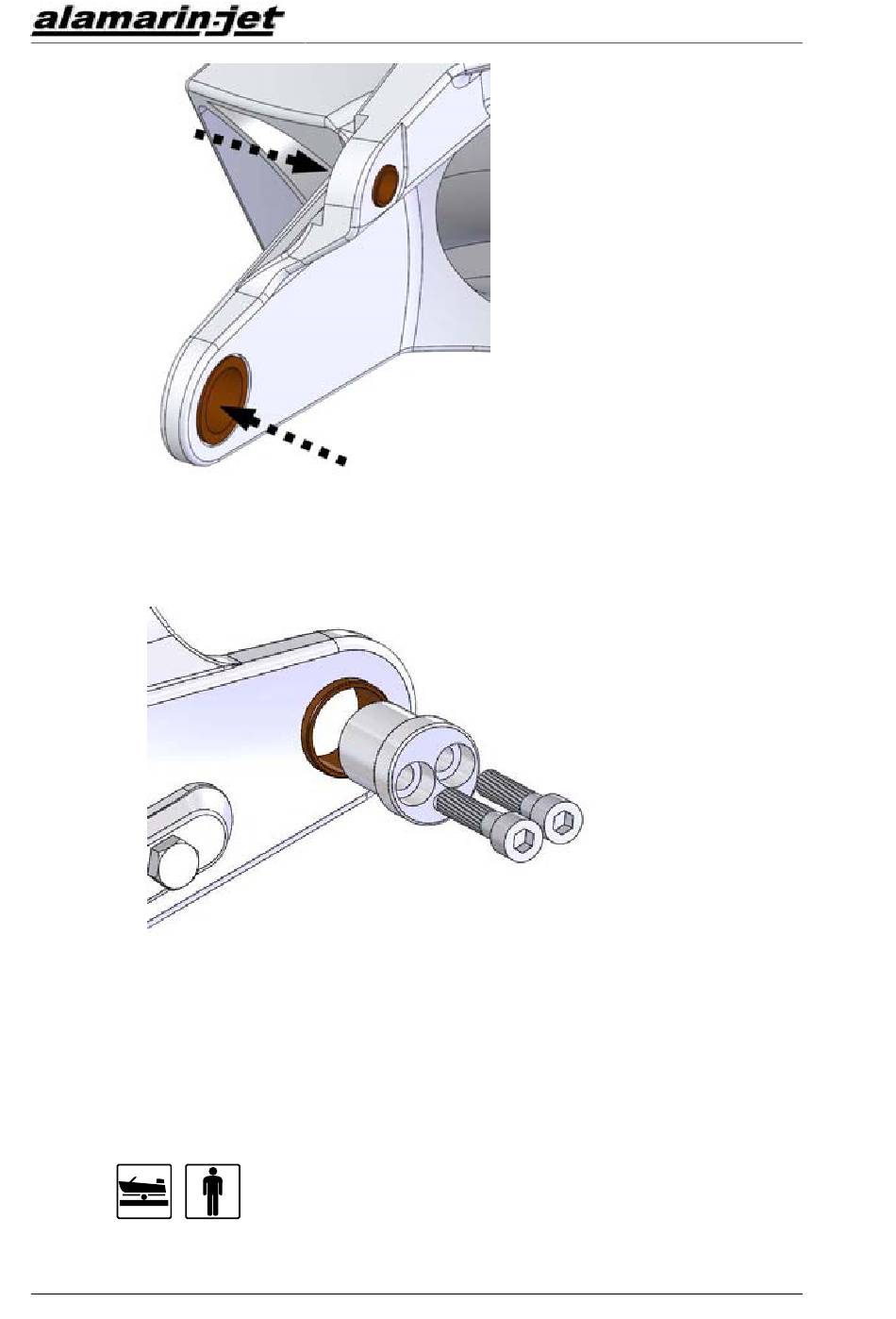

Figure 55. Direction of the plastic bearing flange
2. Lift the reversing deflector in place and push the joint pins in the holes.
3. Tighten the fastening screws (2 on each side) (figure 56).
Figure 56. Attaching the joint pins
4. Attach the joint screw of the hydraulic cylinder intermediate bar (figure
52, point A).
Please note that there must be a sleeve in the reversing deflector's hole.
4.2. Operating hydraulics
4.2.1. Removing the cylinder
42
Reversing deflector and operating hydraulics
Repair manual
KM/285/EN/1.1.0
