6. Stator
6.1. Removing the stator
The stator can be removed as a complete unit with the reversing deflector and
steering nozzle or one part at a time. Be sure to always first disconnect the
lubrication hose from the stator angle fitting (figure 87).

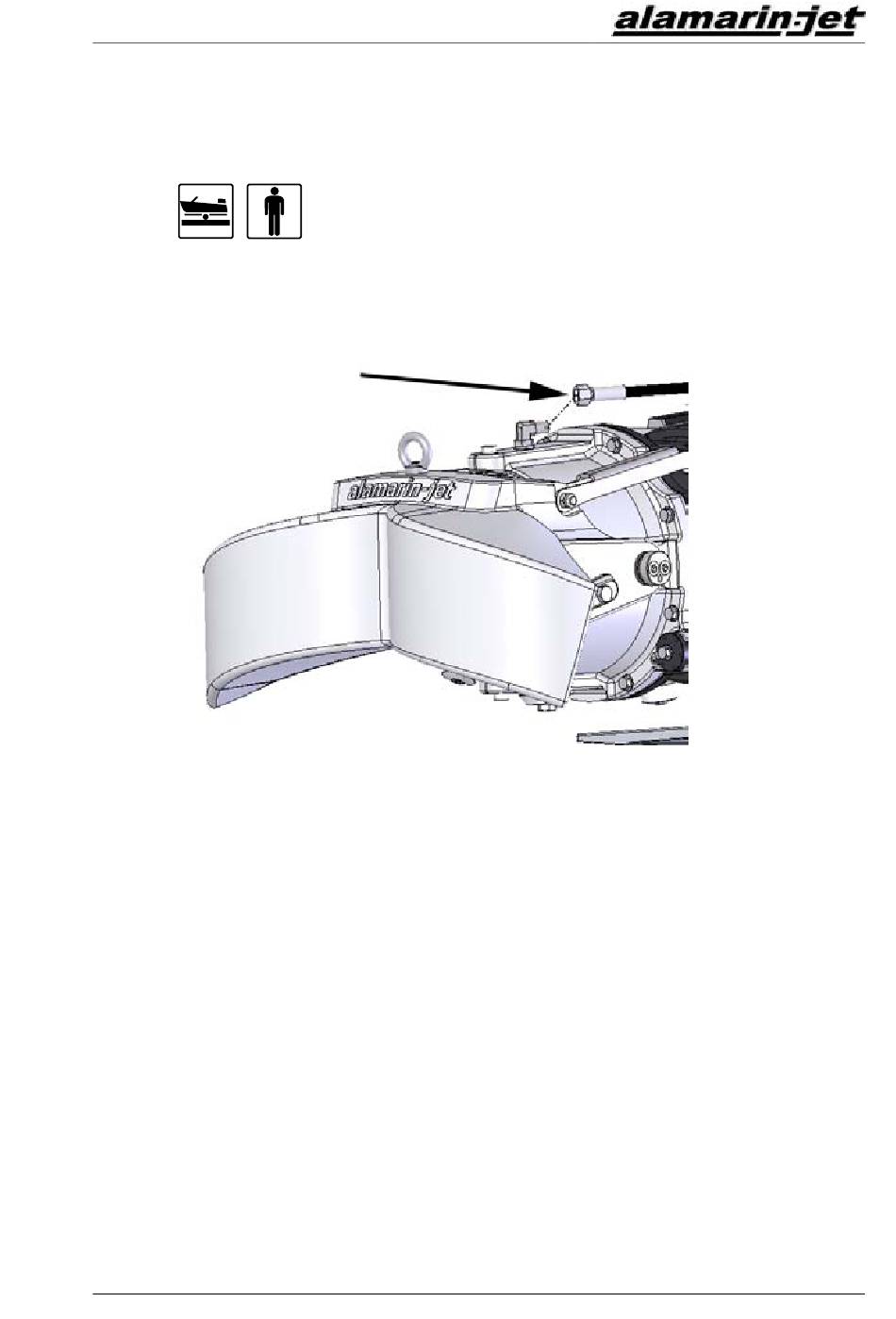

Figure 87. Disconnecting the lubrication hose
Detachment one part at a time:
1. Remove the reversing deflector and the steering nozzle (sections 4.1.1.
Removing the reversing deflector
, page 59).
nozzle
2. Open the stator fastening screws (8 pcs, figure 88).
