btsr SMART MATRIX MTC Operating Manual page 28

(*)The totale number of configured devices
SECTION) must match the total number of devices previously set on
Otherwise a "DEVICE NUMBER
•

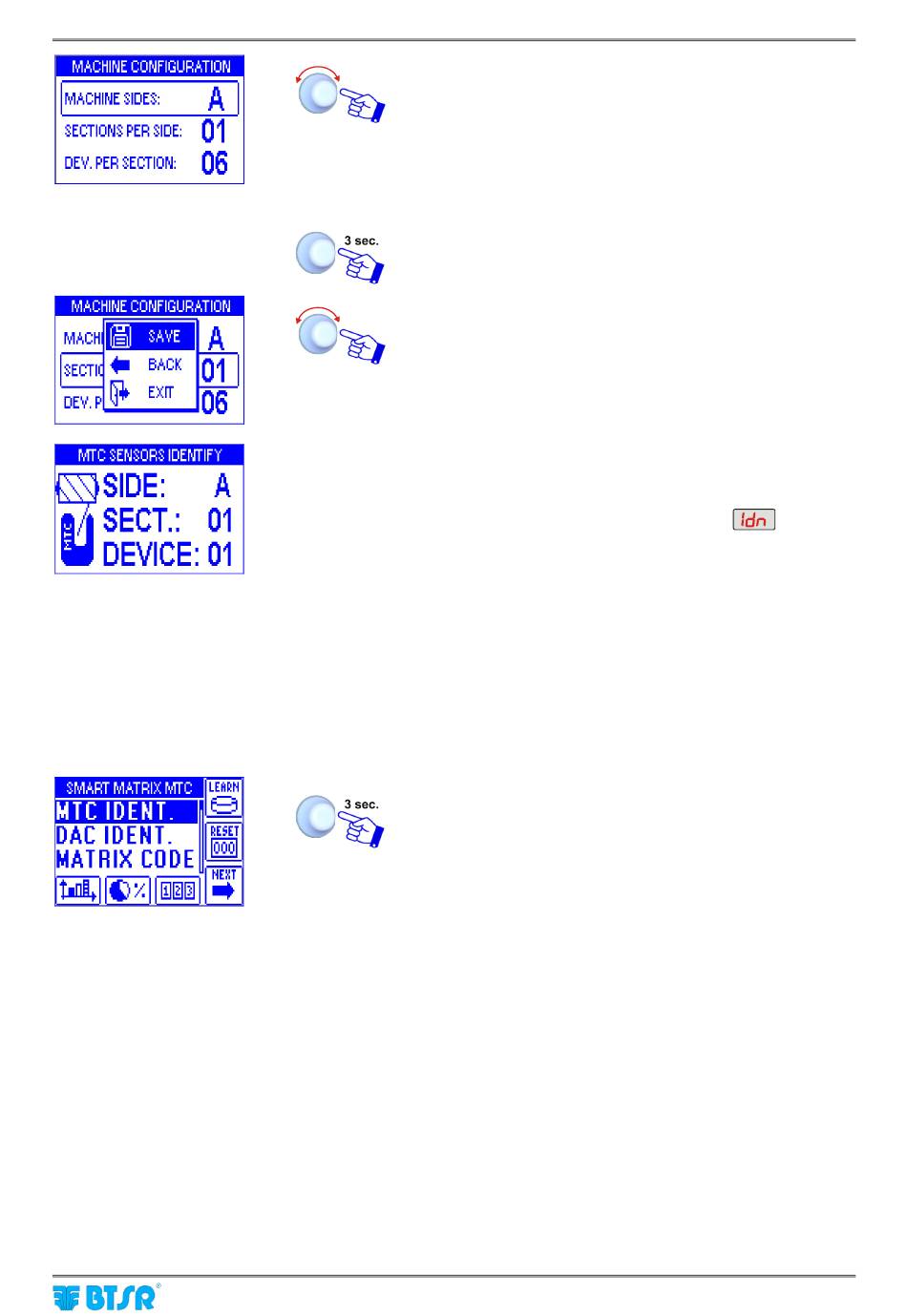

Point and select
•
Set the number of machine sides (A corresponds to 1,
AB to 2, ABC to 3 and ABCD to 4).
•
Point and select
number of sections per side.
•
Point and select
To confirm the set values.
SAVE to save the settings and startup the numbering
procedure.
•
The example shown indicates that the numbering
(identification) procedure of the 6 configured sensors is
going to begin.
•
The display of SM-DIN Boards will show
•
The green led will flash on all sensors
•
Shim the touch light of the sensor corresponding to
SIDE:
The sensor's led changes from flashing green to red.
•
On SMART MATRIX display, the
and SIDE
by-one the sensors to be numbered
•
Shim the touch light of the relevant sensor and continue
with the numbering of all sensors.
At the end of the numbering operation, the configuration
menu will re-appear.
To return to
(MACHINE SIDES
MISMATCH" error message will appear"
SMART MATRIX MTC
Sensor Configuration and Numbering
MACHINE SIDES.
SECTIONS PER
DEV. PER SECTION
A, SECT.: 01, DEVICE:
fields will automatically increase to select one-
SETUP menu
x SECTIONS PER SIDE
BOARDS CONFIGURATION
SIDE. Set the
(e.g. 06)(*).
01.
DEVICE, SECTION
x DEV. PER
screen.
2 - 10
