SMART MATRIX MTC Operation
Navigation throughout the Display Windows
Many configuration/parameter setting functions of SMART MATRIX system require a number of parameters
distributed among multiple display windows.
All the "Window Selection", "Parameter Selection within a Window" and "Parameter Setting" functions on
SMART MATRIX terminal, can be carried out using exclusively the multi-function Rotary Selector, through a
navigation technique based upon "Pointing", "Selecting" and "Value Setting" actions.
The following example explains this navigation technique.

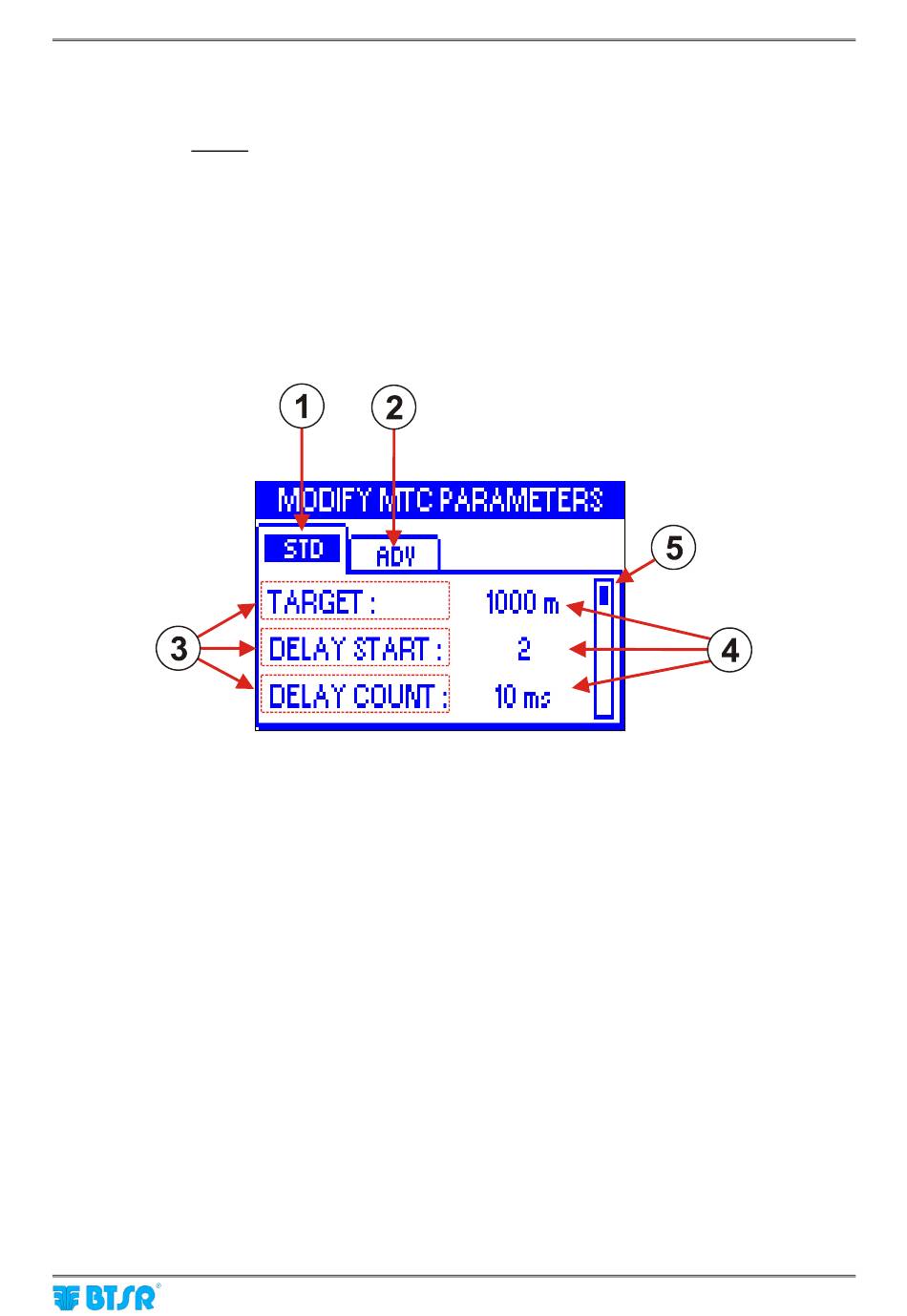

The example refers to the Modify function on STYLE EDIT menu, which makes use of 2 windows
(STD and
ADV).
1 - Name (label) of currently selected window (foreground)
2 - Name (label) of non-selected window (hidden)
3 - Name of fields within the currently selected window
4 - Field values
5 - Scroll Bar (it indicates that additional fields are available).
SMART MATRIX MTC
2 - 2
