Sensor Configuration and Numbering

This function allows you to univocally identify each MTC sensor connected to SM-DIN MTC Boards.
For instance, let suppose now to configure an application comprising 6 IS3W sensors only,
Sensor Configuration and Numbering

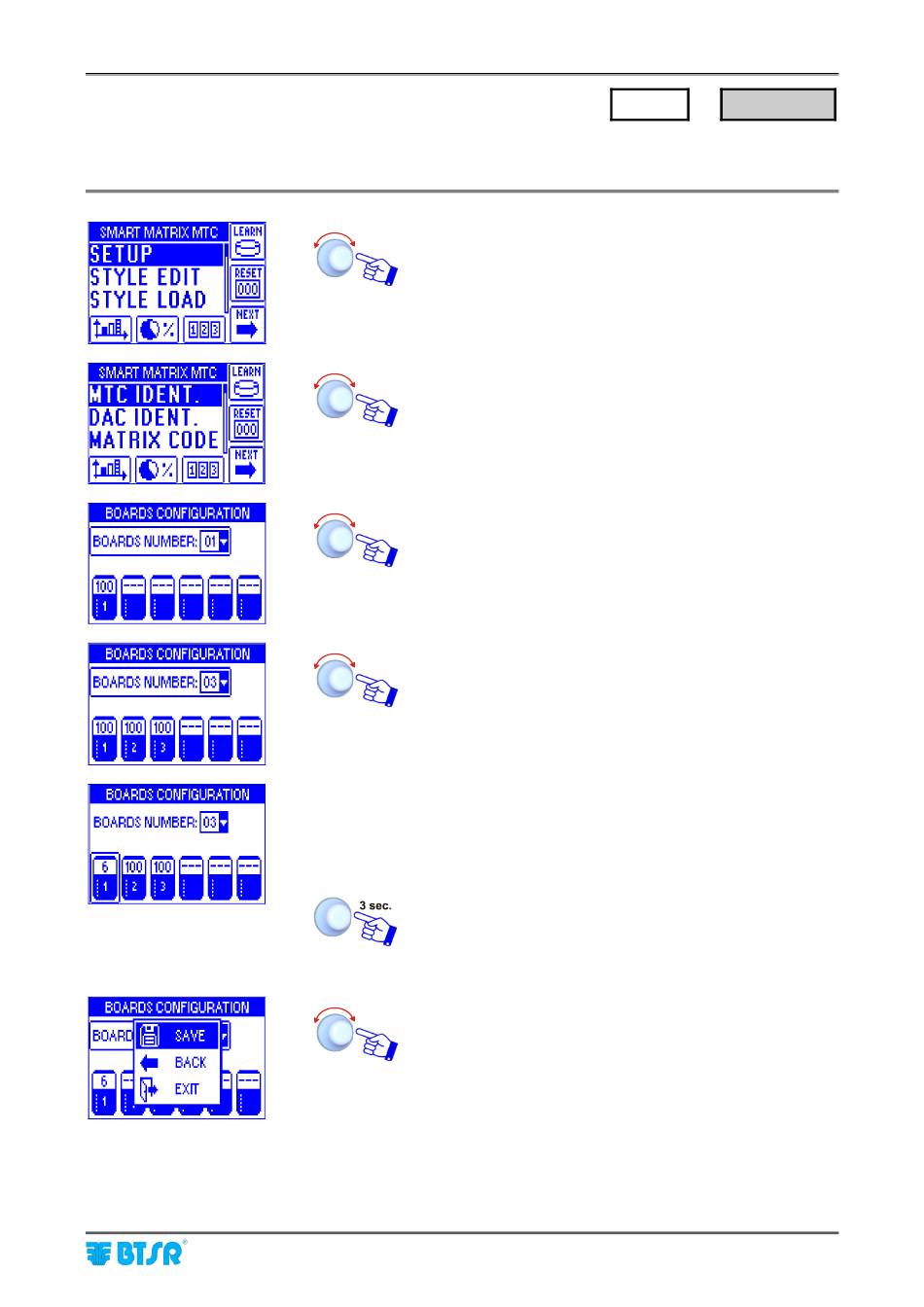

Enter the SETUP menu.
Select MTC IDENT.
•
Point and select BOARDS
•
Set the number of SM-DIN MTC Boards used [1..10] (3
in this example).
•
Point the symbol of 1
Select the field indicating the number of sensors connected
to Board 1 (default 100).
•
Set the number of sensors actually connected to Board
1 (e.g. 6) and confirm.
•
Point the symbol of 2
Boards used.
Once you have configured all the Boards.
SAVE to save the settings.
SMART MATRIX MTC
→
SETUP MTC IDENT.
NUMBER:
st
Board.
nd
Board and so on for all the
Entrare nel
