Sensor Interface

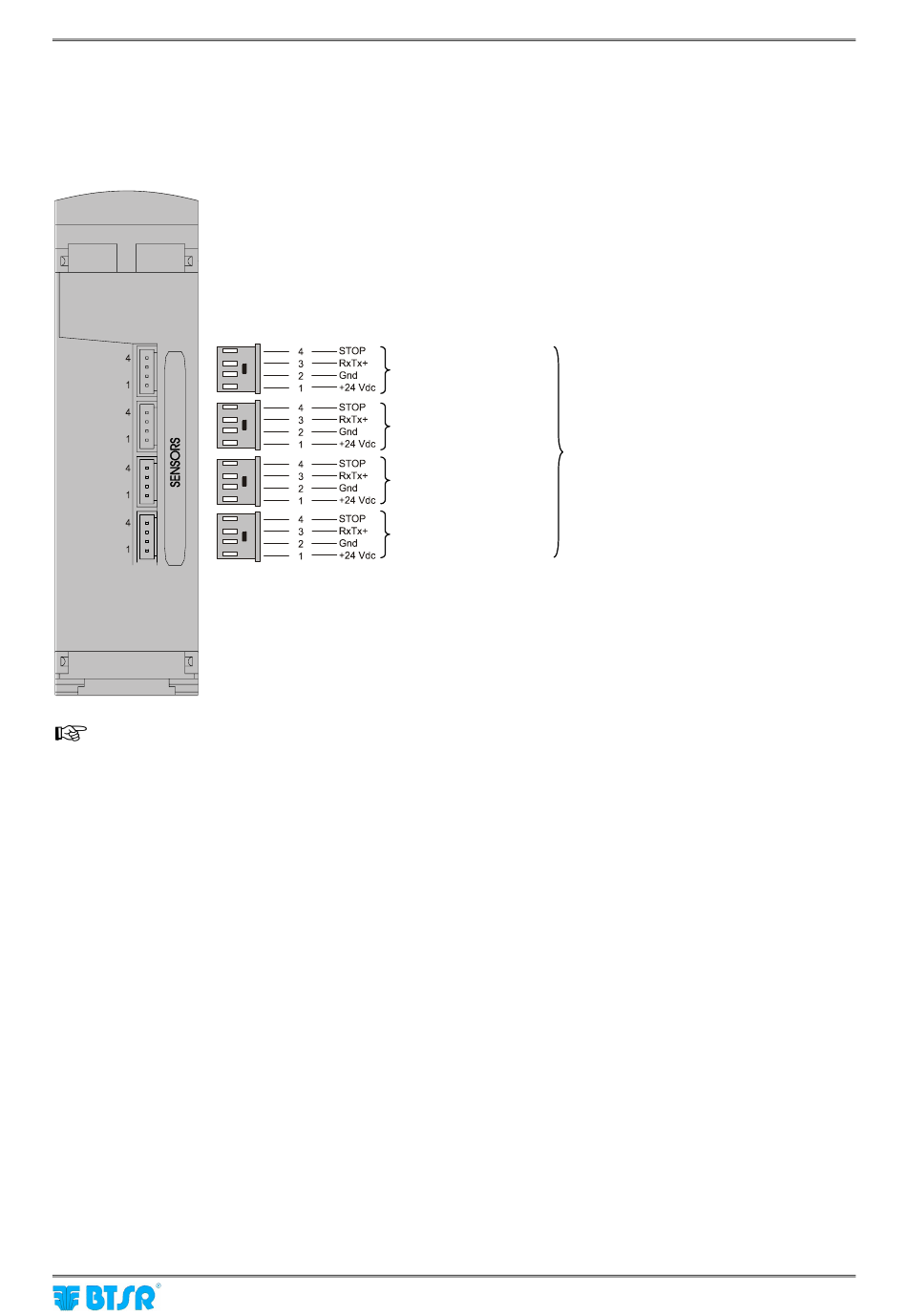

The following diagram shows the electrical interface (pin assignment) of SM-DIN to sensors connection.
As you may note, 4 identical connectors are available, allowing you to connect up to 4 IS3W/MTC.
SM-DIN nn Module – (Identified by means of Edt function directly on the SM-DIN
module)
The number of IS3W sensors actually connectable to the Board, depends on the capacity of power
supply system used.
Sensors
Sensors
Sensors
Sensors
SMART MATRIX MTC
Sensor Interface
Max 100 IS3W/MTC sensors
1 - 4
