4/ System specifications

4.1. Component Main Data

The table below summarizes the features of the pITX-iMX8M embedded motherboard.

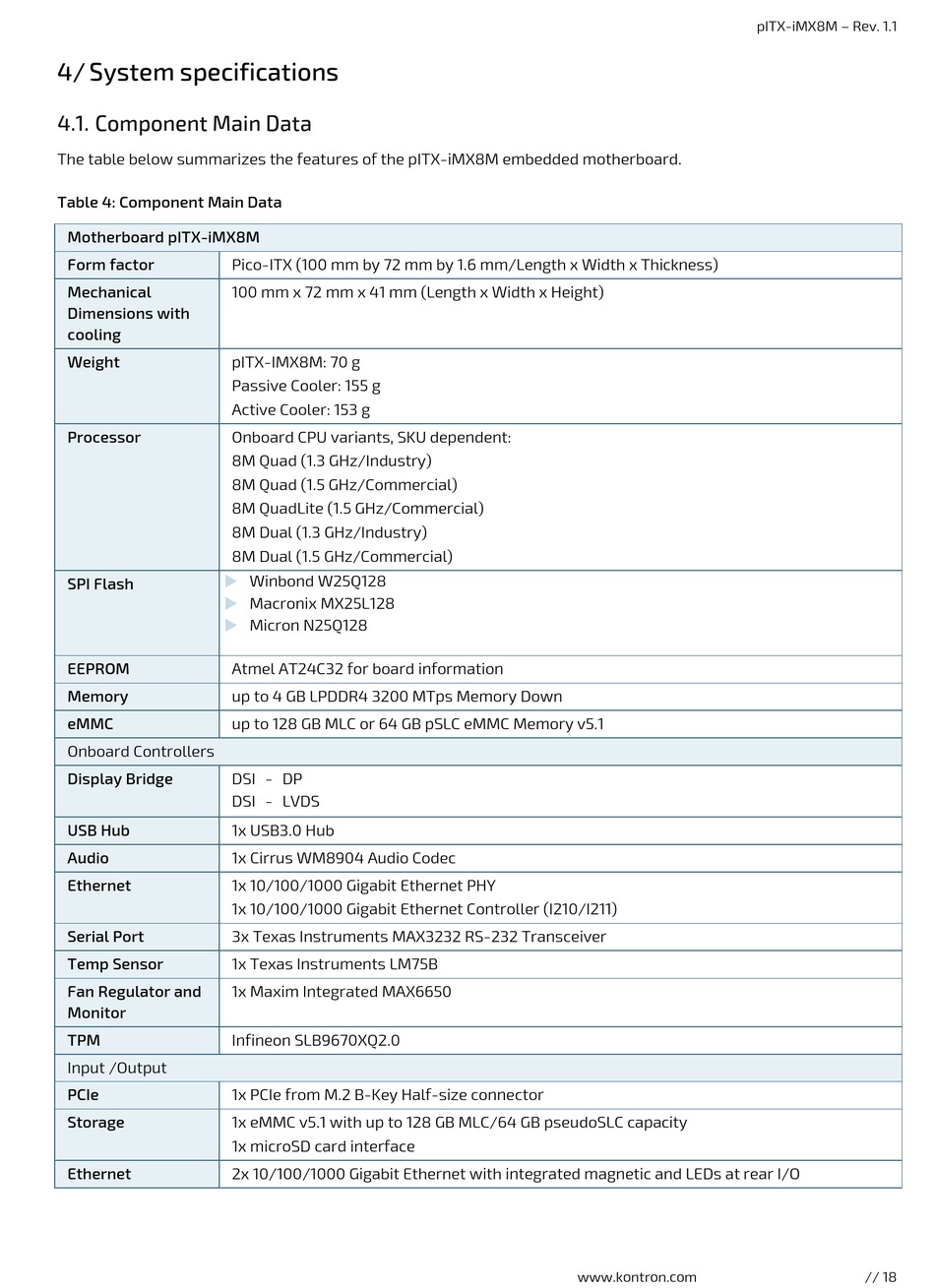

Table 4: Component Main Data

Motherboard pITX-iMX8M
Form factor Pico-ITX (100 mm by 72 mm by 1.6 mm/Length x Width x Thickness)
Mechanical 100 mm x 72 mm x 41 mm (Length x Width x Height)
Dimensions with
cooling
Weight pITX-IMX8M: 70 g
Passive Cooler: 155 g
Active Cooler: 153 g
Processor
Onboard CPU variants, SKU dependent:
8M Quad (1.3 GHz/Industry)
8M Quad (1.5 GHz/Commercial)
8M QuadLite (1.5 GHz/Commercial)
8M Dual (1.3 GHz/Industry)
8M Dual (1.5 GHz/Commercial)

SPI Flash


EEPROM Atmel AT24C32 for board information
Memory up to 4 GB LPDDR4 3200 MTps Memory Down
eMMC up to 128 GB MLC or 64 GB pSLC eMMC Memory v5.1
Onboard Controllers
Display Bridge DSI - DP
DSI - LVDS
USB Hub
1x USB3.0 Hub
Audio
1x Cirrus WM8904 Audio Codec
Ethernet 1x 10/100/1000 Gigabit Ethernet PHY
1x 10/100/1000 Gigabit Ethernet Controller (I210/I211)
Serial Port 3x Texas Instruments MAX3232 RS-232 Transceiver
Temp Sensor
1x Texas Instruments LM75B
Fan Regulator and 1x Maxim Integrated MAX6650
Monitor
TPM Infineon SLB9670XQ2.0
Input /Output
PCIe 1x PCIe from M.2 B-Key Half-size connector
Storage 1x eMMC v5.1 with up to 128 GB MLC/64 GB pseudoSLC capacity
1x microSD card interface
Ethernet
2x 10/100/1000 Gigabit Ethernet with integrated magnetic and LEDs at rear I/O
Winbond W25Q128
Macronix MX25L128
Micron N25Q128
