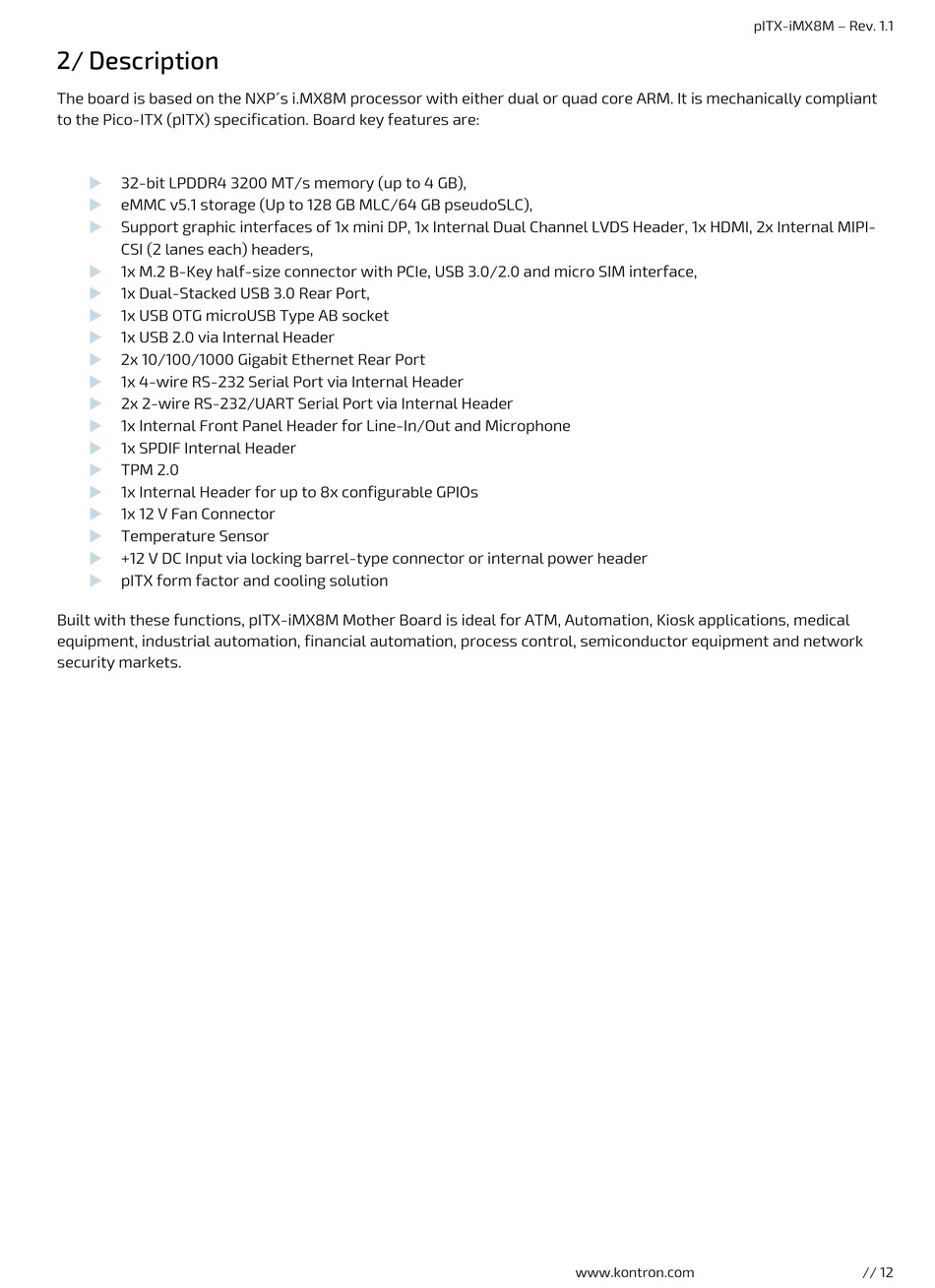

2/ Description
The board is based on the NXP´s i.MX8M processor with either dual or quad core ARM. It is mechanically compliant
to the Pico-ITX (pITX) specification. Board key features are:
32-bit LPDDR4 3200 MT/s memory (up to 4 GB),
eMMC v5.1 storage (Up to 128 GB MLC/64 GB pseudoSLC),
Support graphic interfaces of 1x mini DP, 1x Internal Dual Channel LVDS Header, 1x HDMI, 2x Internal MIPI-
CSI (2 lanes each) headers,
1x M.2 B-Key half-size connector with PCIe, USB 3.0/2.0 and micro SIM interface,
1x Dual-Stacked USB 3.0 Rear Port,
1x USB OTG microUSB Type AB socket
1x USB 2.0 via Internal Header
2x 10/100/1000 Gigabit Ethernet Rear Port
1x 4-wire RS-232 Serial Port via Internal Header
2x 2-wire RS-232/UART Serial Port via Internal Header
1x Internal Front Panel Header for Line-In/Out and Microphone
1x SPDIF Internal Header
TPM 2.0
1x Internal Header for up to 8x configurable GPIOs
1x 12 V Fan Connector
Temperature Sensor
+12 V DC Input via locking barrel-type connector or internal power header
pITX form factor and cooling solution
Built with these functions, pITX-iMX8M Mother Board is ideal for ATM, Automation, Kiosk applications, medical
equipment, industrial automation, financial automation, process control, semiconductor equipment and network
security markets.
