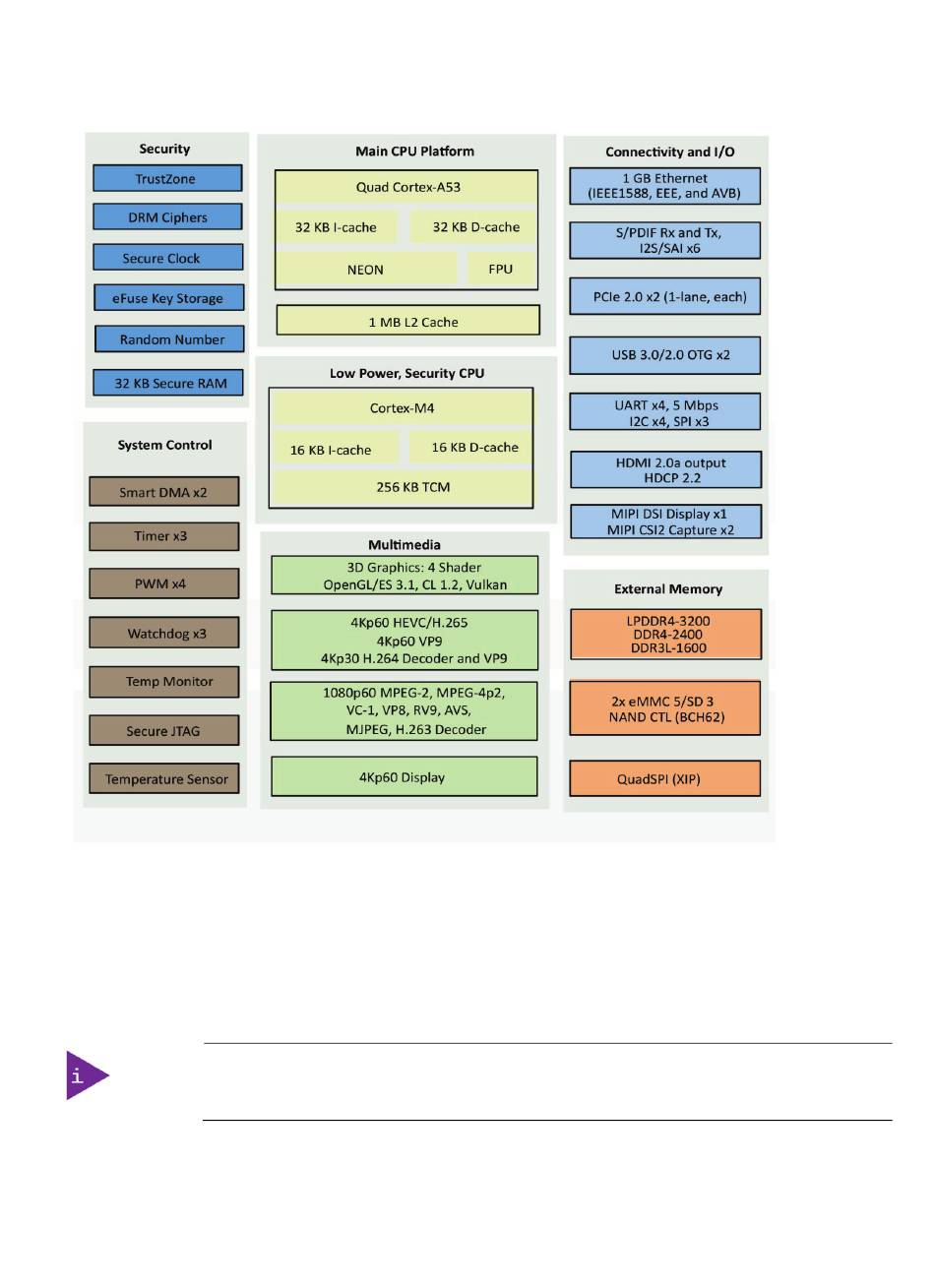

Figure 10: Block Diagram i.MX8M processor (Source: NXP)

6.2. System Memory Support

The pITX-iMX8M board supports a 32-bit DRAM interface LPDDR4 memory interface. The integrated memory
controller can support memory speeds up to 3200 MT/s. Maximum memory supported is 4 GB.
If using 32 Bit OS, less than 4 GB are displayed in the system (Shared Video Memory/PCI
resources are subtracted).
