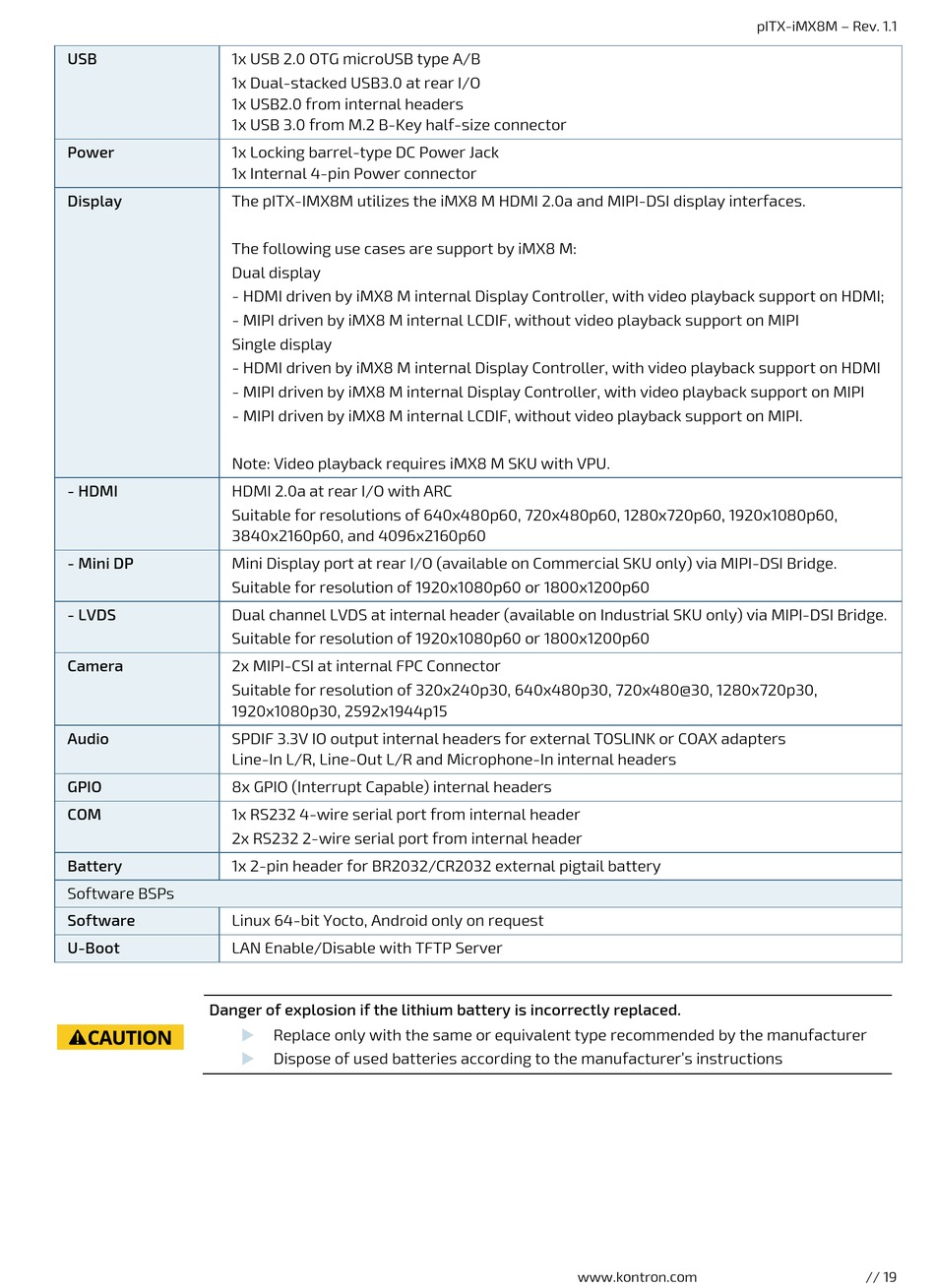

USB
1x USB 2.0 OTG microUSB type A/B
1x Dual-stacked USB3.0 at rear I/O
1x USB2.0 from internal headers
1x USB 3.0 from M.2 B-Key half-size connector
Power
1x Locking barrel-type DC Power Jack
1x Internal 4-pin Power connector
Display
The pITX-IMX8M utilizes the iMX8 M HDMI 2.0a and MIPI-DSI display interfaces.
The following use cases are support by iMX8 M:
Dual display
- HDMI driven by iMX8 M internal Display Controller, with video playback support on HDMI;
- MIPI driven by iMX8 M internal LCDIF, without video playback support on MIPI
Single display
- HDMI driven by iMX8 M internal Display Controller, with video playback support on HDMI
- MIPI driven by iMX8 M internal Display Controller, with video playback support on MIPI
- MIPI driven by iMX8 M internal LCDIF, without video playback support on MIPI.
Note: Video playback requires iMX8 M SKU with VPU.
- HDMI
HDMI 2.0a at rear I/O with ARC
Suitable for resolutions of 640x480p60, 720x480p60, 1280x720p60, 1920x1080p60,
3840x2160p60, and 4096x2160p60
- Mini DP
Mini Display port at rear I/O (available on Commercial SKU only) via MIPI-DSI Bridge.
Suitable for resolution of 1920x1080p60 or 1800x1200p60
- LVDS
Dual channel LVDS at internal header (available on Industrial SKU only) via MIPI-DSI Bridge.
Suitable for resolution of 1920x1080p60 or 1800x1200p60
Camera
2x MIPI-CSI at internal FPC Connector
Suitable for resolution of 320x240p30, 640x480p30, 720x480@30, 1280x720p30,
1920x1080p30, 2592x1944p15
Audio
SPDIF 3.3V IO output internal headers for external TOSLINK or COAX adapters
Line-In L/R, Line-Out L/R and Microphone-In internal headers
GPIO
8x GPIO (Interrupt Capable) internal headers
COM
1x RS232 4-wire serial port from internal header
2x RS232 2-wire serial port from internal header
Battery
1x 2-pin header for BR2032/CR2032 external pigtail battery
Software BSPs
Software
Linux 64-bit Yocto, Android only on request
U-Boot
LAN Enable/Disable with TFTP Server
Danger of explosion if the lithium battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer
Dispose of used batteries according to the manufacturer's instructions
www.kontron.com
pITX-iMX8M – Rev. 1.1
// 19
