Signal/Function
Optional Pull-up is
not assembled
NC
V_3V3_M2, +3.3V S0
filtered
V_3V3_M2, +3.3V S0
filtered
V_3V3_M2, +3.3V S0
filtered

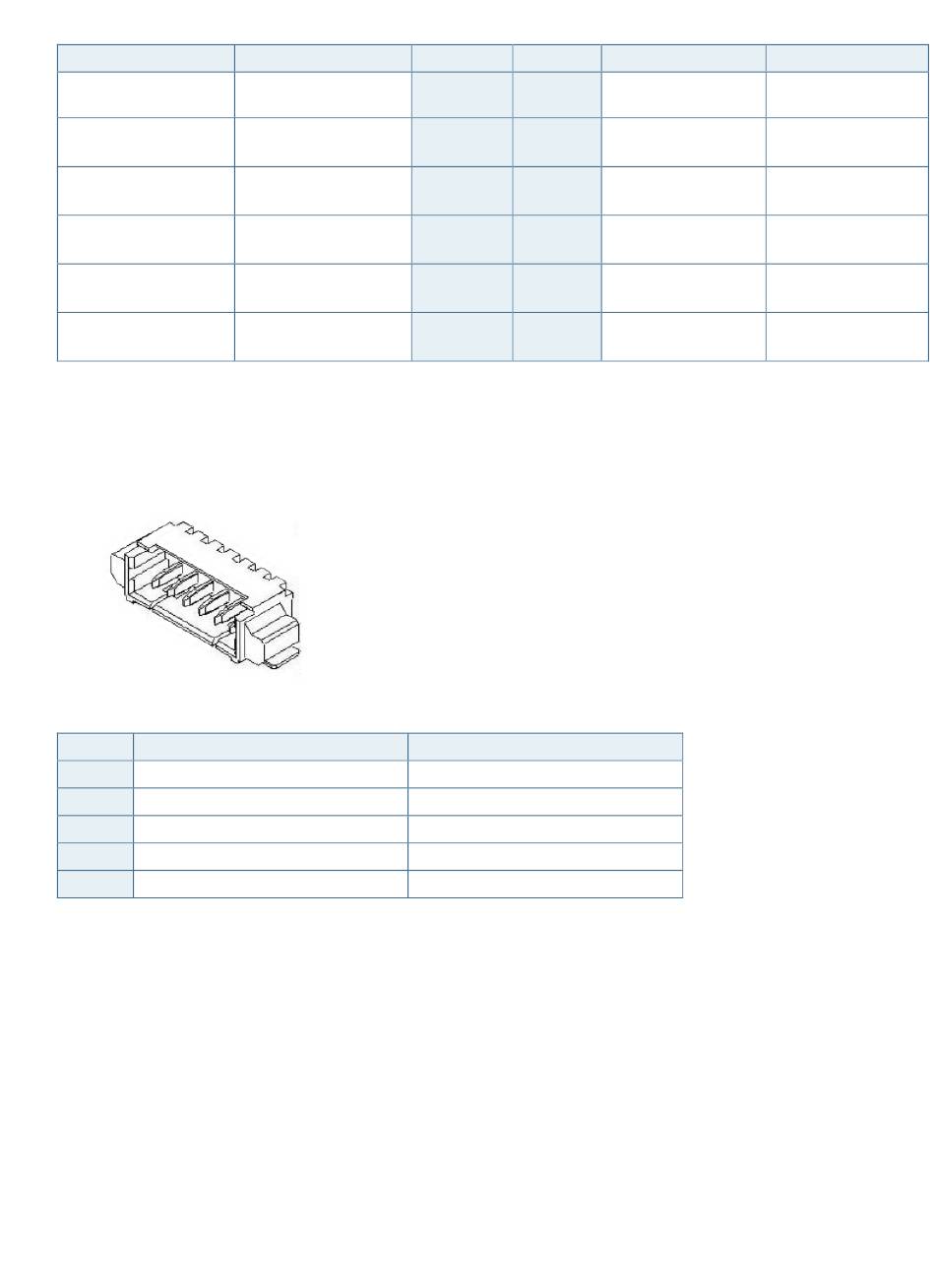

6.20. Serial COM P1 (J25)
Figure 28: Serial Wafer Socket COM P1
1
Table 36: Pin Assignment
Pin
Signal
1
RS232_P1_TXD
2
RS232_P1_RXD
3
NC
4
NC
5
GND
M.2 Signal
Pin
SUSCLK (32kHz) (O)
68
(0/3.3V)
3.3V
70
3.3V
72
3.3V
74
Direction
OUT
IN
Ground
Pin
M.2 Signal
67
RESET# (O) (0/1.8V)
69
CONFIG_1
71
GND
73
GND
75
CONFIG_2
www.kontron.com
pITX-iMX8M – Rev. 1.1
Signal/Function
M2_PCIE_RESET#
Pull-up to +3.3V S0
M2_CONFIG_1,
Pull-up to +3.3V S0
GND
GND
M2_CONFIG_2,
Pull-up to +3.3V S0
// 48
