6.8. Pigtail Battery Header (J22)

The 2-pin header has a 1.25 mm pitch.

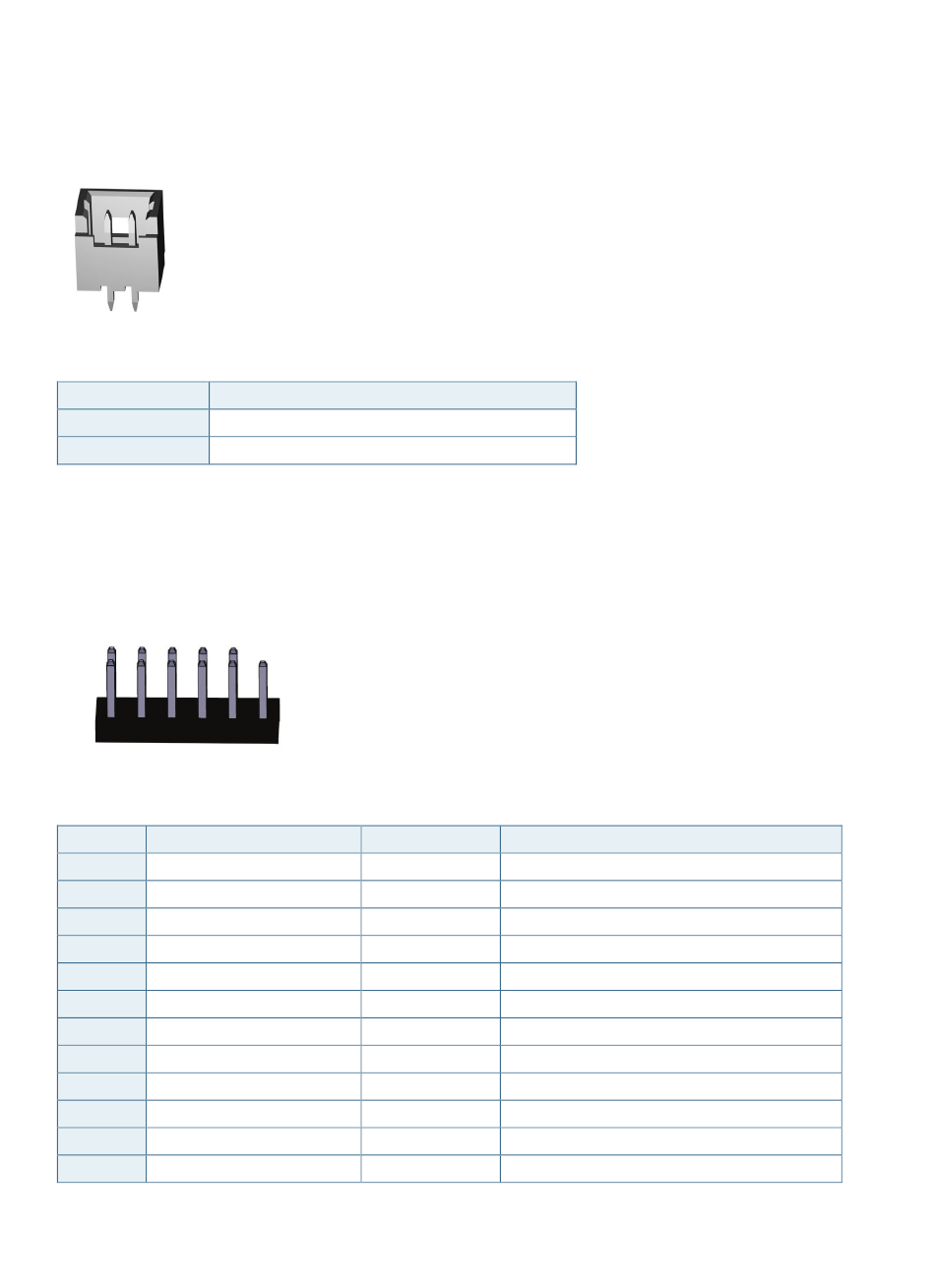

Figure 19: Pigtail Battery Header

1

Table 21: Pin Assignment

Pin Signal
1
V_BAT
2 GND

6.9. GPIO Connector (internal, J17)

Figure 20: GPIO Connector

1

Table 22: GPIO Connector

Pin Function
1 V_3V3_S0
2 GPIO0
3
GPIO1
4 GPIO2
5 GPIO3
6 GPIO4
7 GPIO5
8 GPIO6
9 GPIO7
10 GND
11 GND
12
V_BAT_GPIO
Direction Description
Power
IN/OUT Connects to iMX8M
IN/OUT
IN/OUT
IN/OUT
IN/OUT
IN/OUT
IN/OUT
IN/OUT
Ground
Ground
Power Connects to RTC battery power rail.
