Pin Function
15 DP0 TX2+
16 DP0 AUX+
17 DP0 TX2-
18 DP0 AUX-
19
GND
20
DP Power

6.17. SPDIF Internal Audio Header (J10)

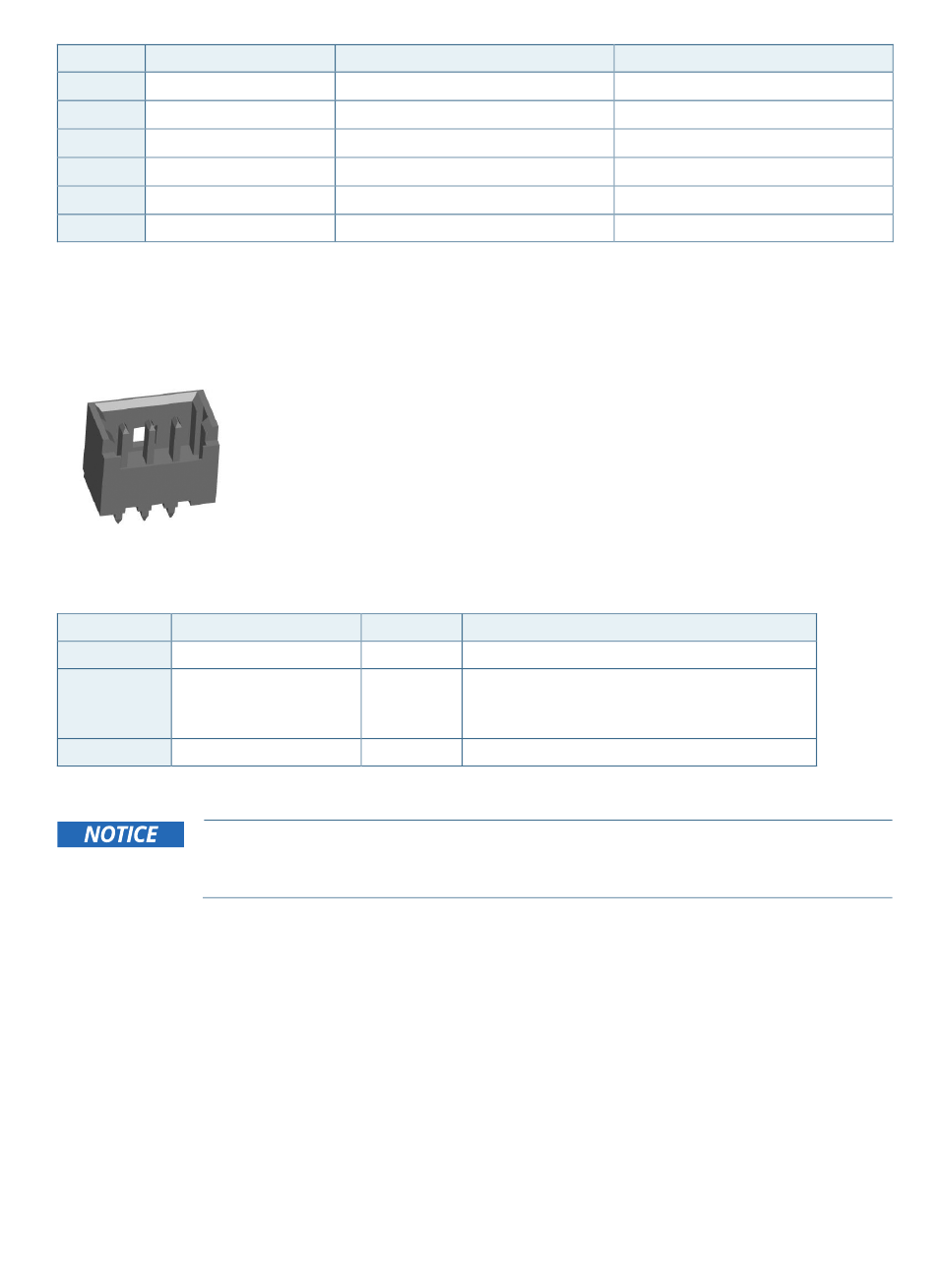

Figure 26: SPDIF Internal Header with 3 pins

1

Table 33: Pin Assignment

Pin Function
1
V_3V3_S0_SPDIF
2 SPDIF
3 GND
SPDIF is a Sony/Philips Digital Interface 3.3 V VIO. Other levels below +3.3V VIO are possible
via resistor divider (assembly option).
Direction
Out
In/Out
Out
In/Out
Ground
Power Out
Direction Description
Power Fused 3.3 V power distribution. I max 0.75 A.
Out Sony/Philips Digital Interface 3.3 V VIO (other
levels below +3.3 V VIO are possible via
resistor divider, assembly option)
Ground
Description
+3.3V, 0.75A max
