6.7.1. DC Power Jack Connector (12 Vin Ext., J15)

The pITX-iMX8M operates with a 12 V DC +/- 10% power supply.

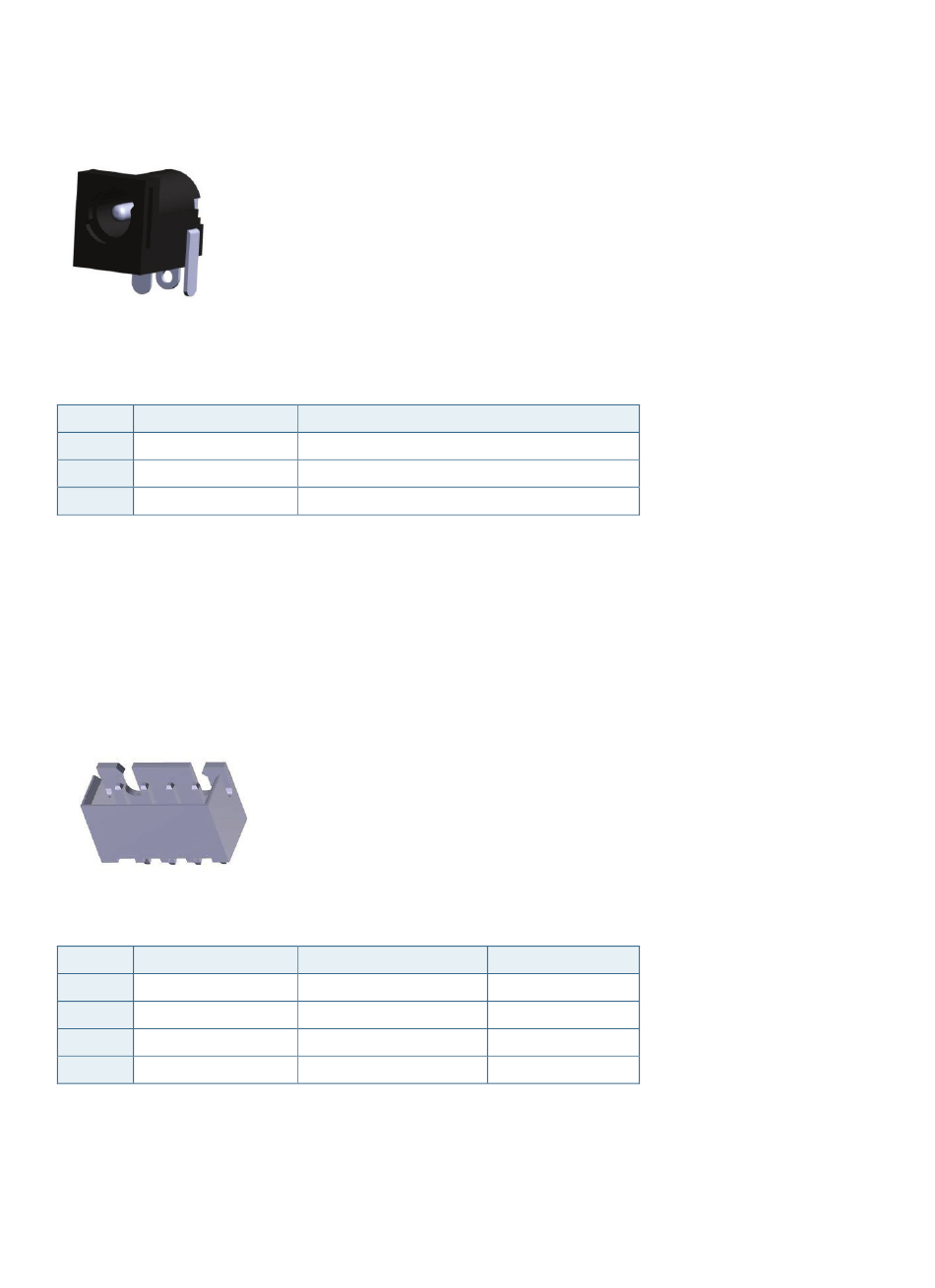

Figure 17: Power Jack Connector

Table 19: Power Jack Connector

Pin Function
1 VIN 12VDC
2 RTN_12V
3 RTN_12V
The 12 Vin Ext. power connector has Vin to the center pin and mates with Ø 6.3 mm DC Power jack with Ø 2.0 mm pin
hole. (DC Connector RA 2 mm locking type). Maximum allowed current is 5 A.

6.7.2. Internal Power Connector (Vin Int., J16)

Figure 18: Internal Power Connector

1

Table 20: Internal Power Connector

Header Pin
1 +12 V
2 +12 V
3 RTN_12V
4 RTN_12V
Maximum allowed current on each pin is 5 A.
Direction
Ground
Ground
Signal
+12 V power input
+12 V power input
Power Ground
Power Ground
Description
PWR
PWR
PWR
PWR
