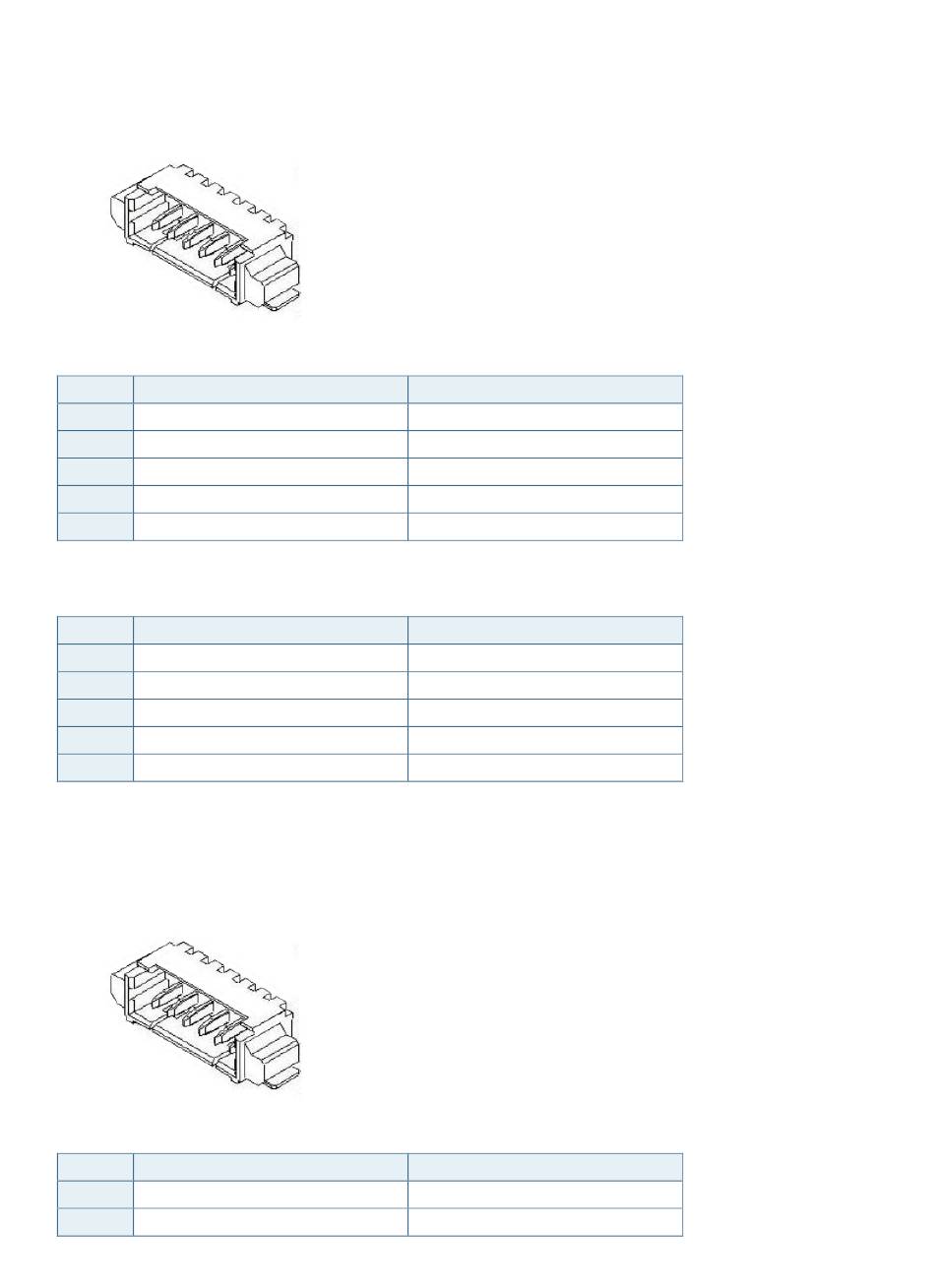

6.21. Serial COM P2 (J3)
Figure 29: Serial Wafer Socket COM P2
1
Table 37: Pin Assignment
Pin
Signal
1
RS232_P2_TXD
2
RS232_P2_RXD
3
NC
4
NC
5
GND
Table 38: Pin Assignment (assembly option)
Pin
Signal
1
NC
2
NC
3
RS232_P2_TXD
4
RS232_P2_RXD
5
GND
6.22. Serial COM P3 (J19)
Figure 30: Serial Wafer Socket COM P3
1
Table 39: Pin Assignment RS232 only
Pin
Signal
1
RS232_P3_TXD
2
RS232_P3_RXD
Direction
OUT
IN
Ground
Direction
OUT
IN
Ground
Direction
OUT
IN
www.kontron.com
pITX-iMX8M – Rev. 1.1
// 49
