6.10. Jumper LVDS Panel Voltage (J18)

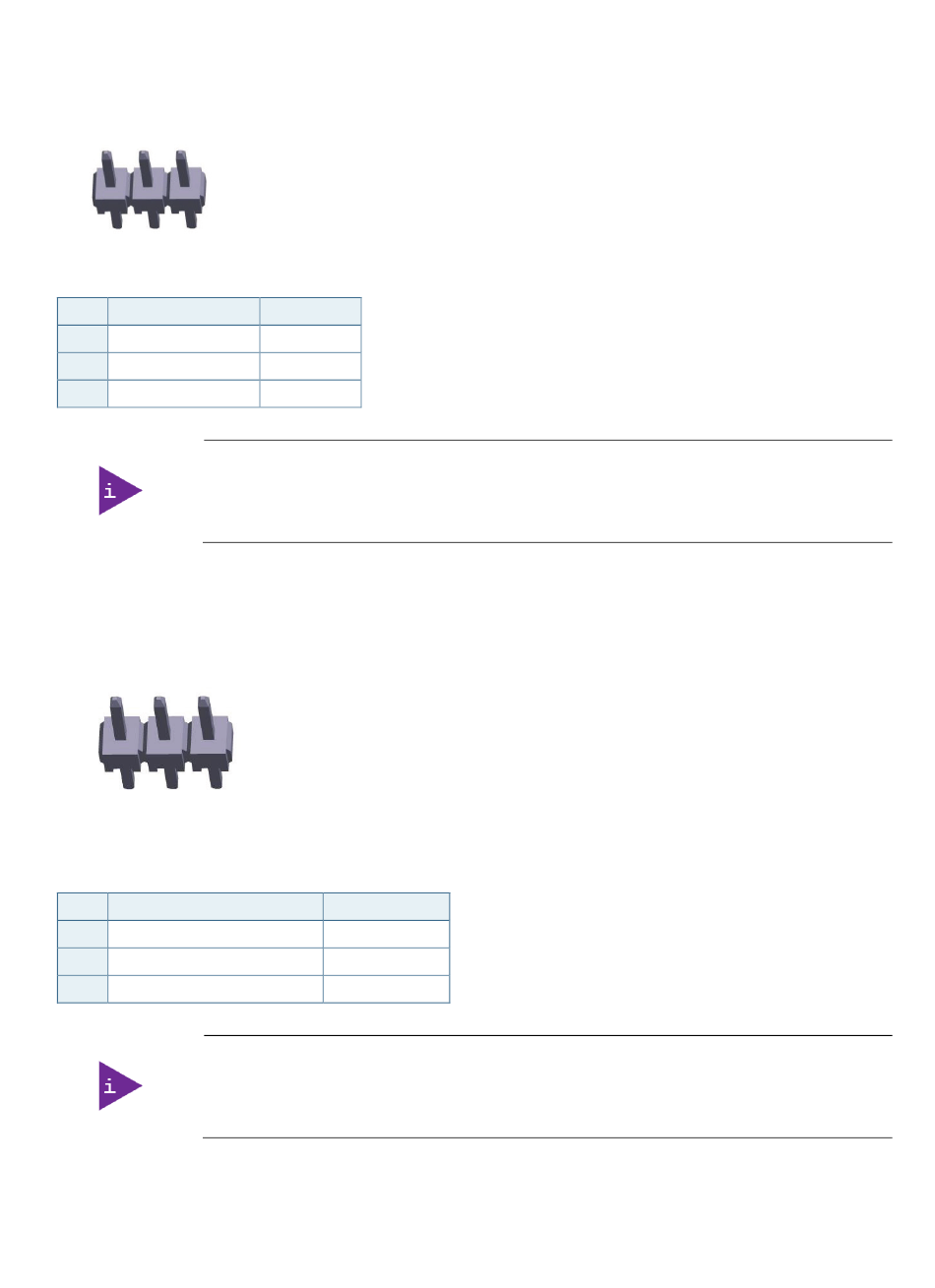

Figure 21: LVDS Panel Voltage

1

Table 23: LVDS Panel Voltage

Pin Function
1 V_5V_S0
2 V_5V0_3V3_JP
3 V_3V3_S0
Function:
Pin 1-2: 5V LVDS Panel Voltage is 5.0 V
Pin 2-3: 3.3V LVDS Panel Voltage (Default)

6.11. Jumper LVDS Backlight Voltage (J29)

Figure 22: LVDS Backlight Voltage Select Jumper

1

Table 24: LVDS Panel Voltage

Pin Function
1 V_5V_S0
2 V_5V0_12V_BL_JP
3 V_12V_S0
Function:
Pin 1-2: LVDS backlight voltage is +5.0 V
Pin 2-3: LVDS backlight voltage is +12.0 V (Default)
Direction
Power
Power
Power
Direction
Power
Power
Power
