2.4.5.3 Windows XP USB Driver Installation
The Windows XP USB driver must first be installed before using the
ADSP-21160 EZ-KIT Lite evaluation system for the first time.
To install the USB Driver:
1. Insert the EZ-KIT Lite disc into the CD-ROM drive.
The connection of the device to the USB port will activate the Windows XP
"Found New Hardware Wizard" as shown in Figure 2-15.

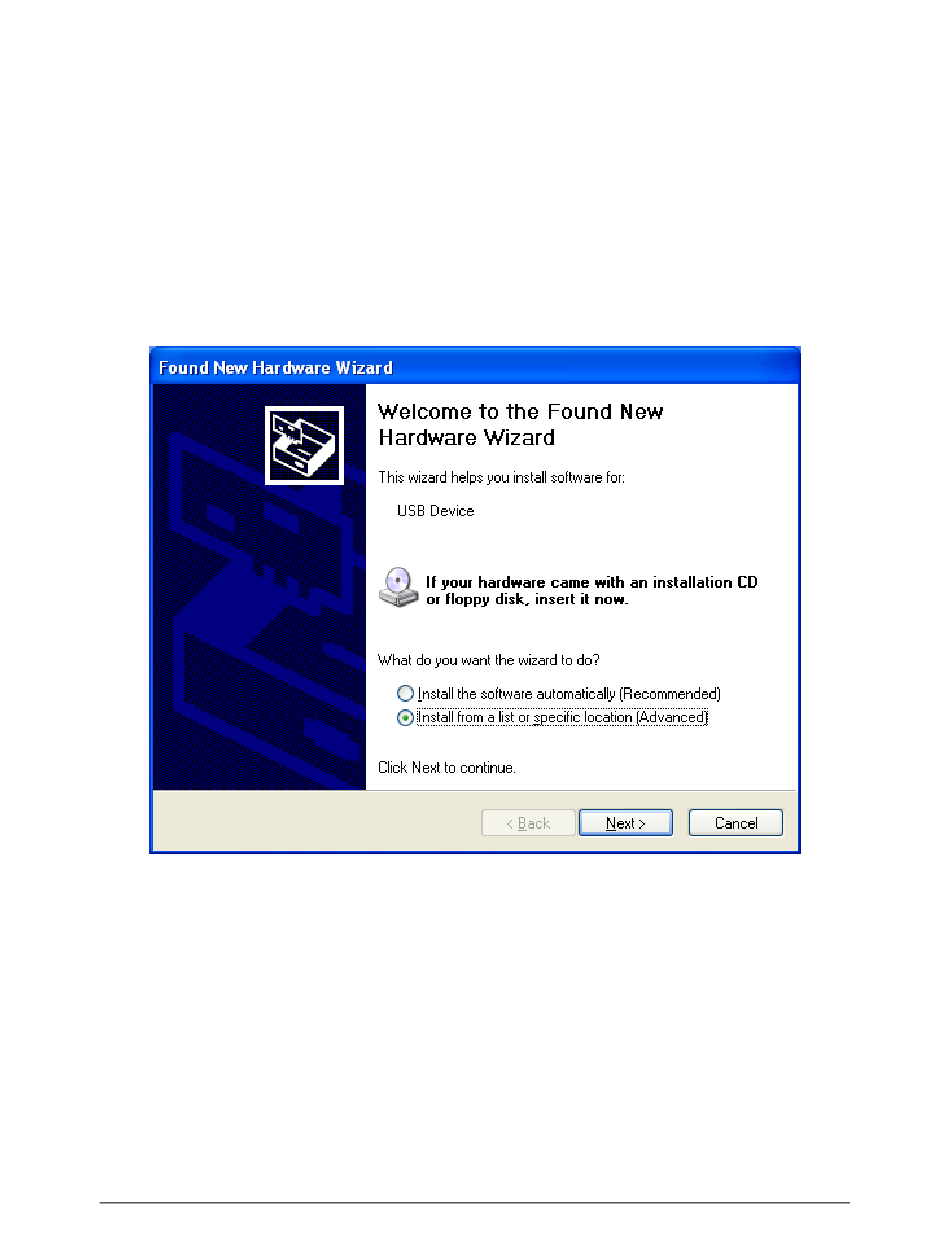

Figure 2-15: Found New Hardware Wizard

2. Select Install from a list or specific location.
3. Click Next.
2-20
ADSP-21160 EZ-KIT Lite Evaluation System Manual
