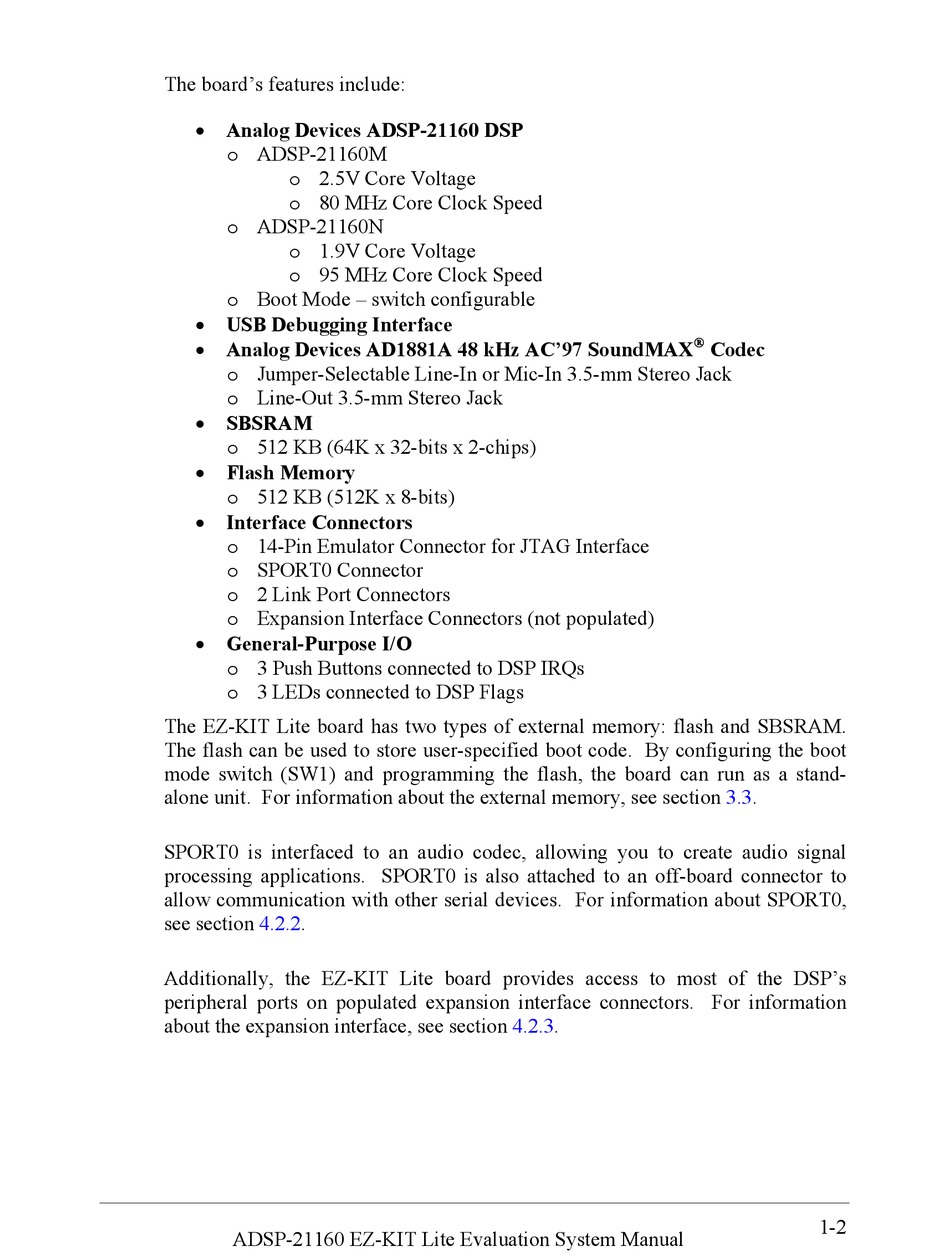

The board's features include:
• Analog Devices ADSP-21160 DSP
o ADSP-21160M
o 2.5V Core Voltage
o 80 MHz Core Clock Speed
o ADSP-21160N
o 1.9V Core Voltage
o 95 MHz Core Clock Speed
o Boot Mode – switch configurable
• USB Debugging Interface
• Analog Devices AD1881A 48 kHz AC'97 SoundMAX
o Jumper-Selectable Line-In or Mic-In 3.5-mm Stereo Jack
o Line-Out 3.5-mm Stereo Jack
• SBSRAM
o 512 KB (64K x 32-bits x 2-chips)
• Flash Memory
o 512 KB (512K x 8-bits)
• Interface Connectors
o 14-Pin Emulator Connector for JTAG Interface
o SPORT0 Connector
o 2 Link Port Connectors
o Expansion Interface Connectors (not populated)
• General-Purpose I/O
o 3 Push Buttons connected to DSP IRQs
o 3 LEDs connected to DSP Flags
The EZ-KIT Lite board has two types of external memory: flash and SBSRAM.
The flash can be used to store user-specified boot code. By configuring the boot
mode switch (SW1) and programming the flash, the board can run as a stand-
alone unit. For information about the external memory, see section 3.3.
SPORT0 is interfaced to an audio codec, allowing you to create audio signal
processing applications. SPORT0 is also attached to an off-board connector to
allow communication with other serial devices. For information about SPORT0,
see section 4.2.2.
Additionally, the EZ-KIT Lite board provides access to most of the DSP's
peripheral ports on populated expansion interface connectors. For information
about the expansion interface, see section 4.2.3.
