4.4 LEDs and Push Buttons

This section describes the function of all the LEDs and push buttons.
shows the location of all the LEDs and push buttons.

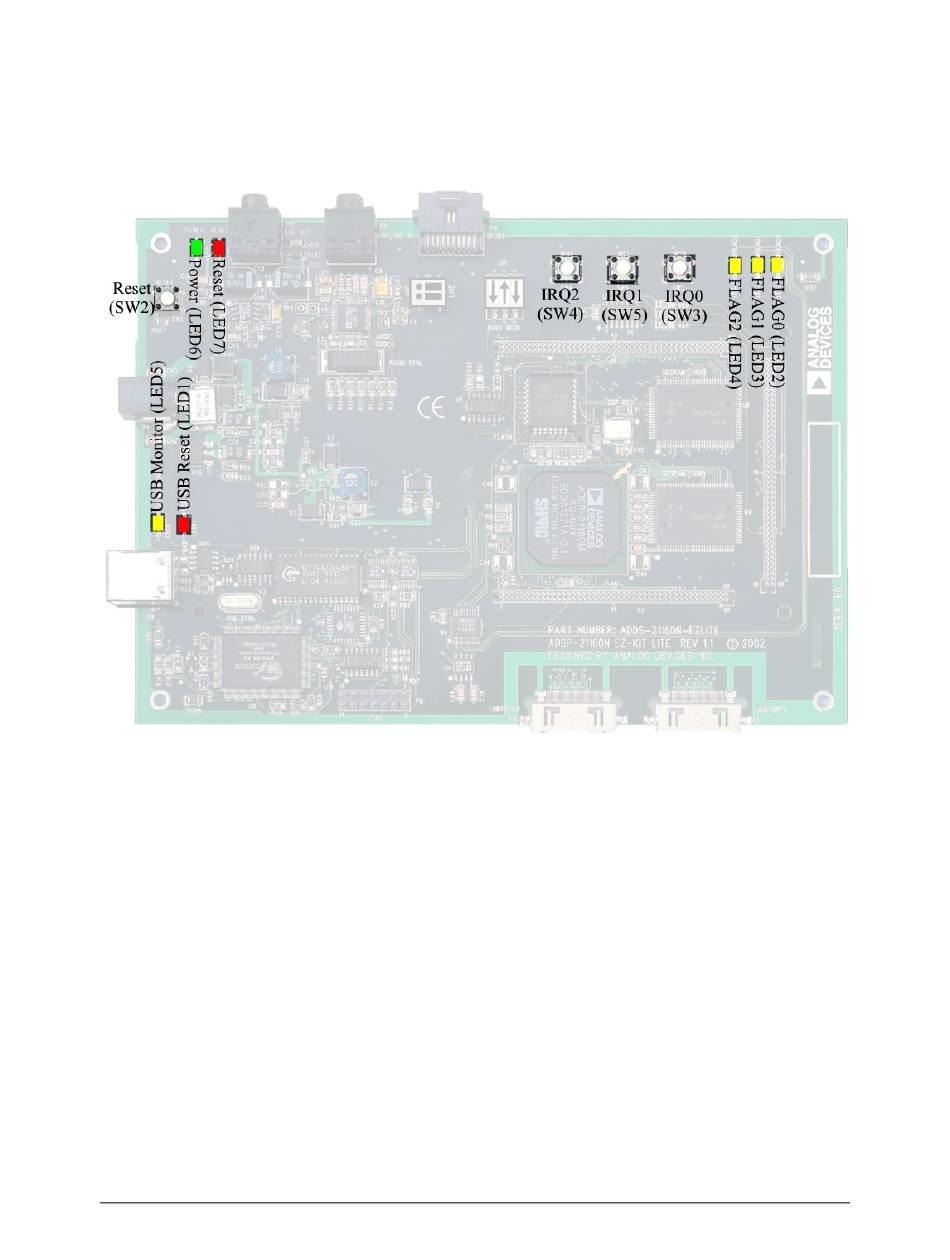

Figure 4-4: LED and Push Button Locations

4.4.1 Reset LEDs (LED1, LED7)

When LED7 is lit, it indicates that the master reset of all the major ICs is active.
When LED1 is lit, the USB interface chip (U11) is being reset. The USB chip
will reset on power-up and if USB communication has not been initialized.
ADSP-21160 EZ-KIT Lite Evaluation System Manual
Figure 4-4
4-33
