1. Remove the EZ-KIT Lite board from the package. Be careful when
handling the board to avoid the discharge of static electricity, which may
damage some components.
2.

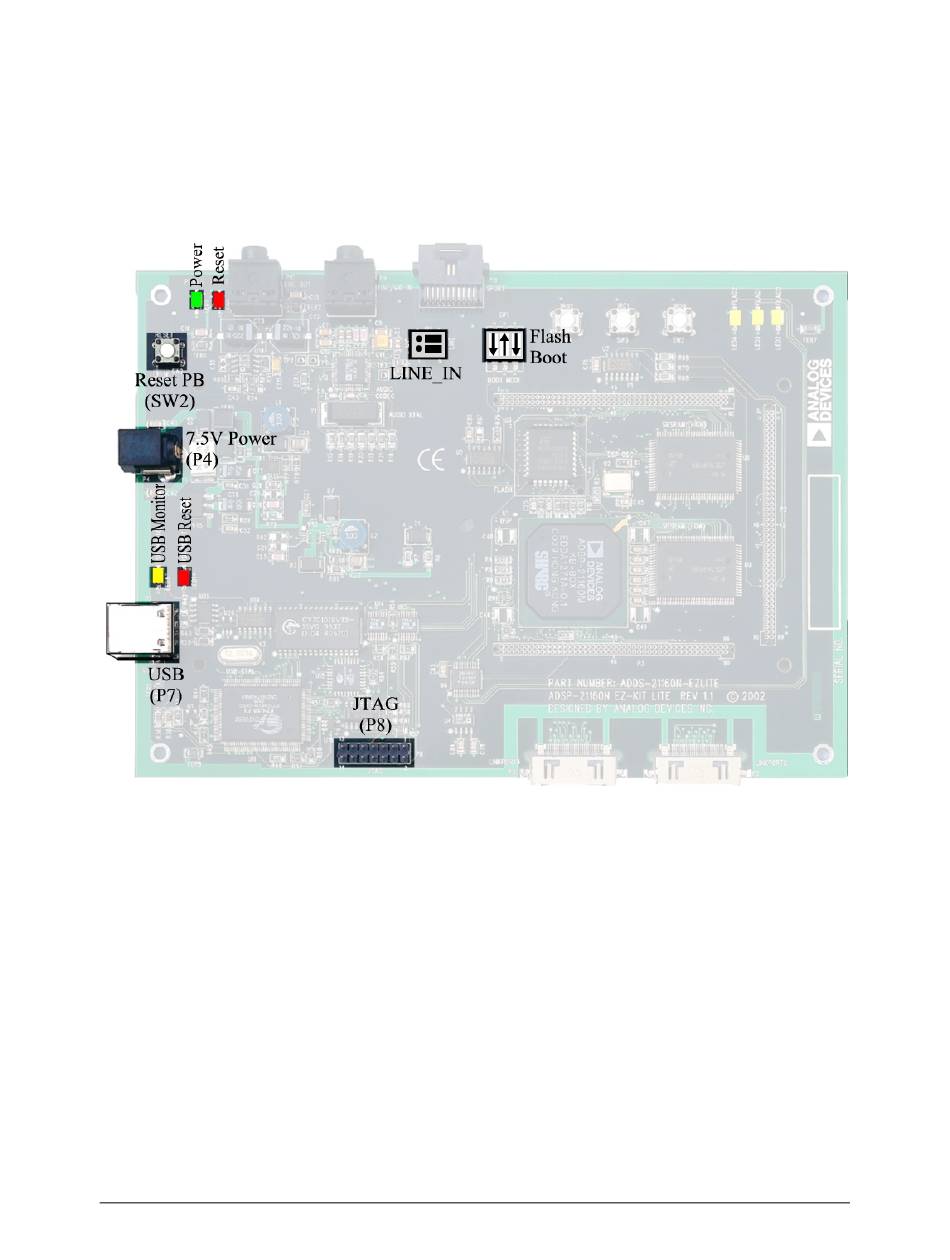

Figure 2-1
shows the default jumper settings, DIP Switch, connector
locations, and LEDs used in installation. Confirm that your board is set up
in the default configuration before continuing.
Figure 2-1: EZ-KIT Lite Hardware Setup
3. Plug the provided power supply into P4 on the EZ-KIT Lite board.
Visually verify that the green power LED (LED6) is on. Also verify that
the two red reset LEDs (LED1 and LED8) go on for a moment and then
go off.
ADSP-21160 EZ-KIT Lite Evaluation System Manual
2-9
