4. Connect the USB cable to an available full-speed USB Port on your PC
and to P7 on the ADSP-21160 EZ-KIT Lite board.

2.4.5 Installing the EZ-KIT Lite USB Driver

The EZ-KIT Lite evaluation system can be installed on Windows 98, Windows
2000, And Windows XP and requires one full-speed USB port. Section
describes the installation on Windows 98.
installation under Windows 2000. Section
Windows XP.
2.4.5.1 Windows 98 USB Driver Installation
The Windows 98 USB driver must first be installed before using the ADSP-21160
EZ-KIT Lite evaluation system for the first time.
To install the USB driver:
1. Insert the EZ-KIT Lite disc into the CD-ROM drive.
The connection of the device to the USB port will activate the Windows 98 "Add
New Hardware Wizard" as shown in
2. Click Next.
ADSP-21160 EZ-KIT Lite Evaluation System Manual
Figure

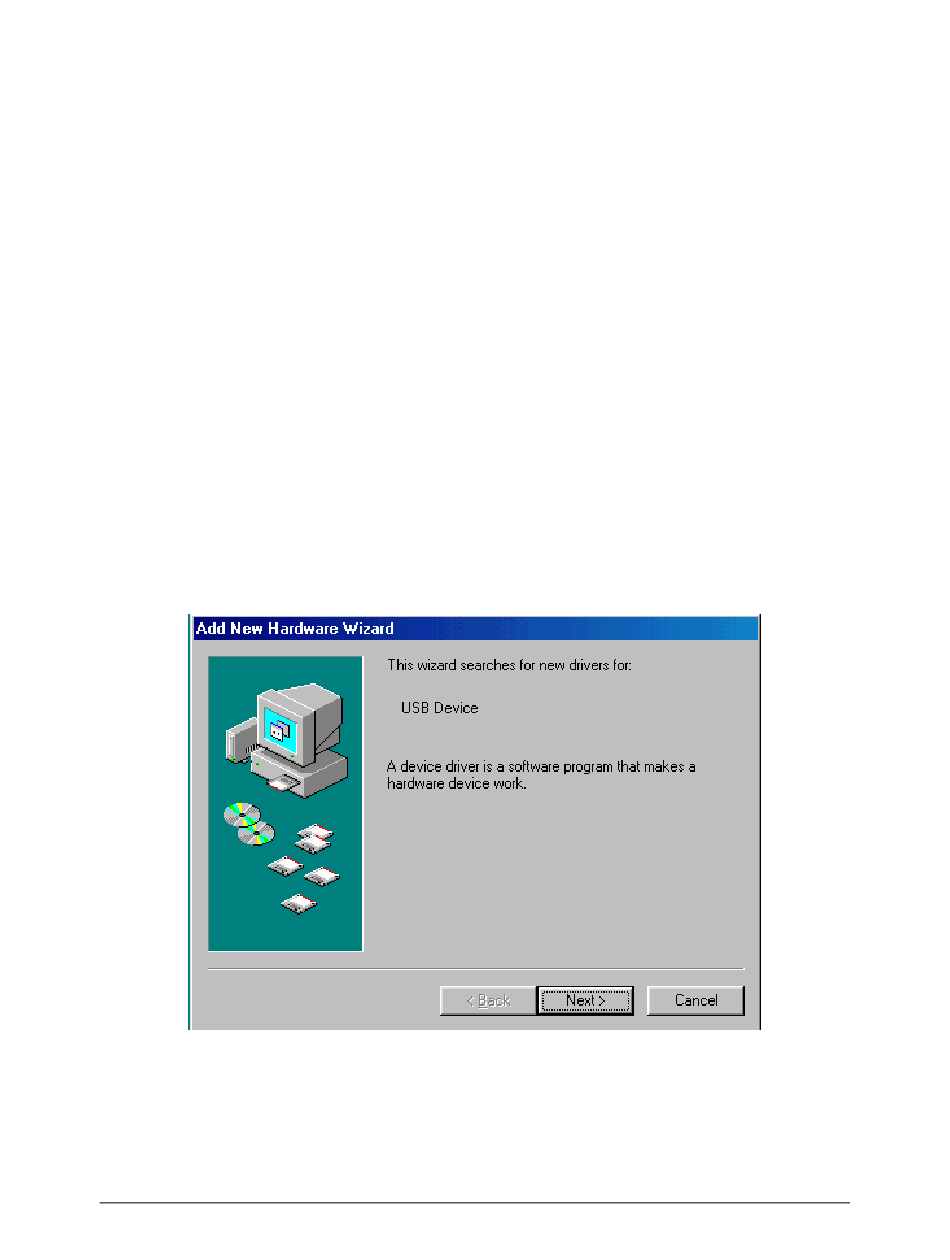

Figure 2-2: Add New Hardware Wizard

Sections 2.4.5.2
2.4.5.2 describes the installation on
2-2.
2.4.5.1
describes the
2-10
