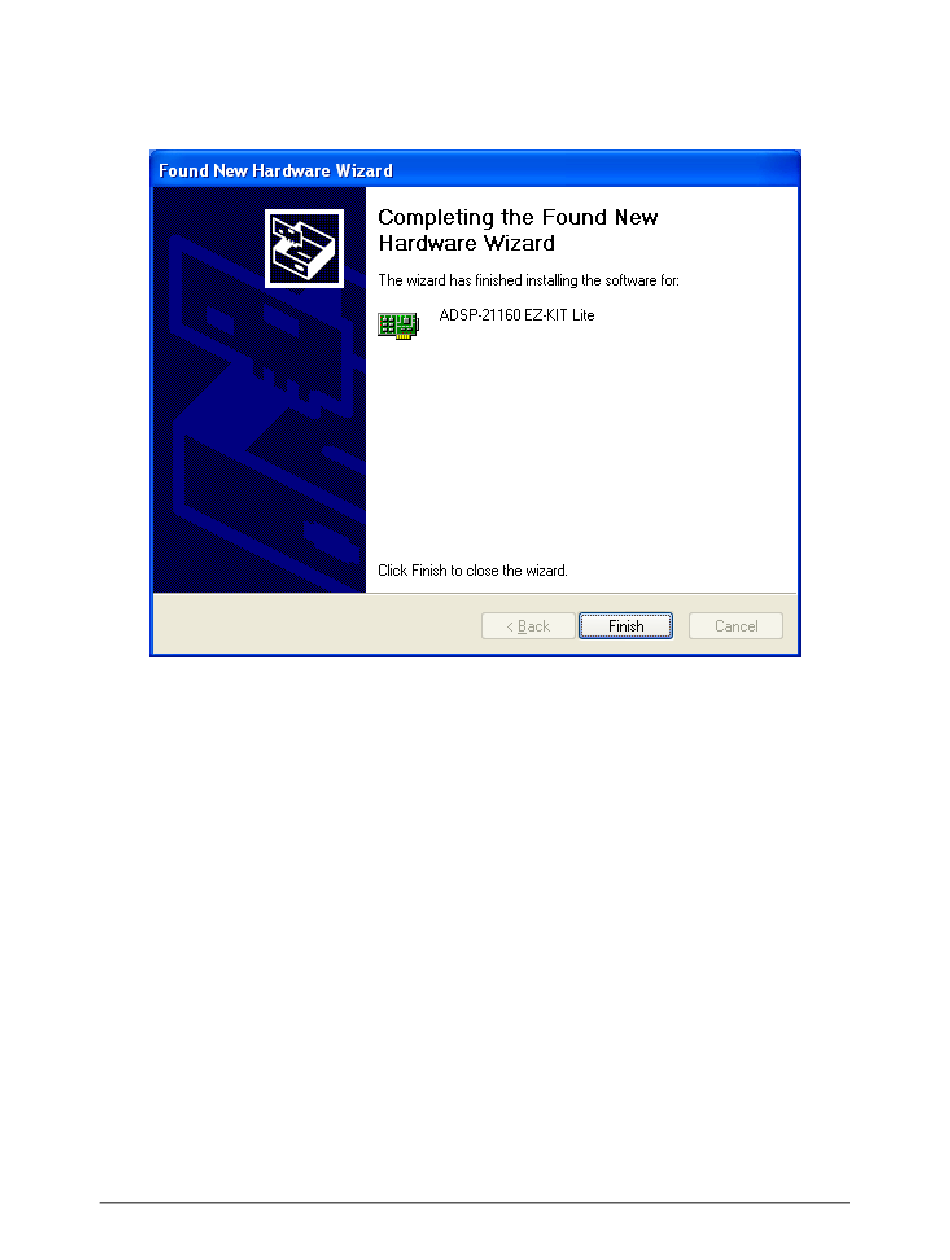

Windows XP will automatically install the ADSP-21160 EZ-KIT Lite driver. The

driver installation is now complete as shown in

7. Click Finish to exit the wizard.

Verify the installation by following the instructions in section 2.4.6.

2.4.6 Verifying Driver Installation

Before you use the EZ-KIT Lite evaluation system, verify that the USB driver

software is installed properly:

1. Ensure that the USB cable is connected to the evaluation board and the PC.

2. Verify that the yellow USB monitor LED (LED5) is lit. This signifies that the

board is communicating properly with the host PC and is ready to run

VisualDSP++.

ADSP-21160 EZ-KIT Lite Evaluation System Manual

Figure

2-17.

2-22
