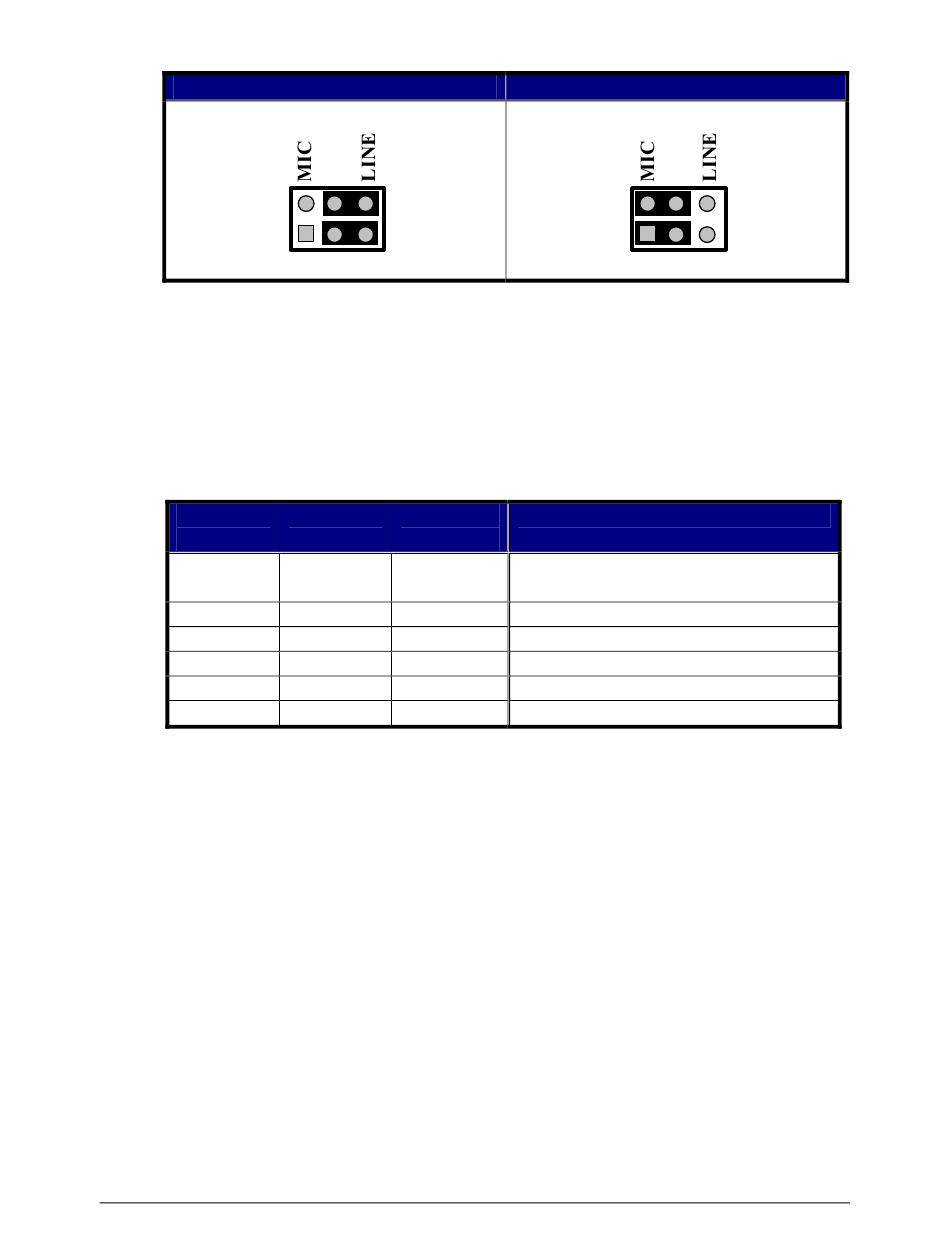

Figure 4-3: Audio Input Jumper Settings (JP1)

4.3.2 Boot Mode Select Switch (SW1)

The boot mode select switch determines how the DSP will boot.
the switch settings for the boot modes.

Table 4-2: Boot Mode Select Switch (SW1) Settings

EBOOT
Pin 3
Off
On
On
On
On
Off
ADSP-21160 EZ-KIT Lite Evaluation System Manual
JP1
6
5
LBOOT ~BMS
Pin 2 Pin 1
Off
On
(Output)
On Off (Input)
Off Off (Input)
On On (Input)
Off On (Input)
Off X (Input)
Mono MIC1
JP1
2
1
Function
Boot from 8-bit flash (Default)
Boot from host
Boot from Link Port
No Boot (execute from external)
Reserved
Reserved
