GC2e Wireless Security System | Installation and Programming Guide

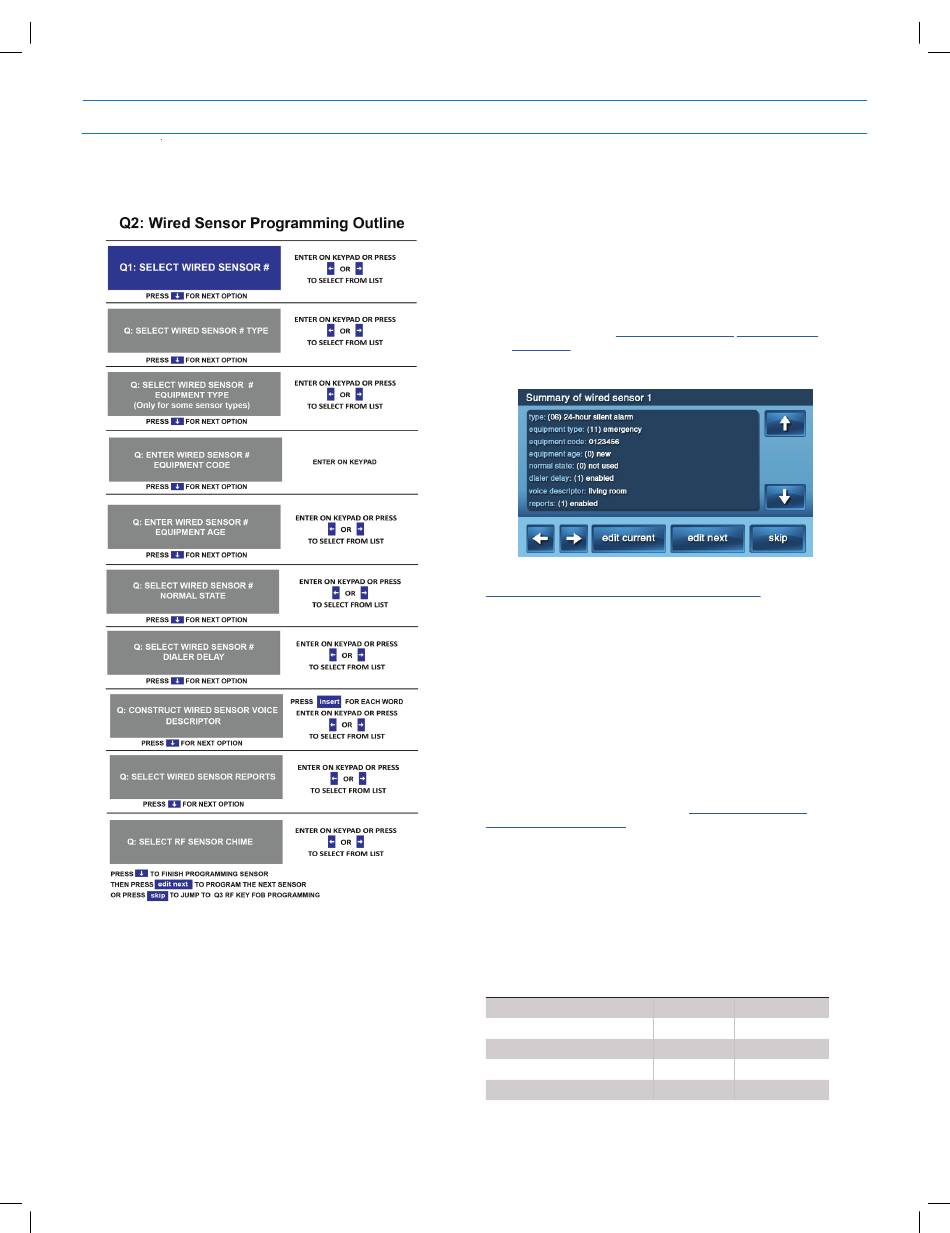

Q2: Wired Sensor Programming Outline
Figure 47
Wired Sensor Programming Outline
Scroll between op ons using the ← and → arrows. Move to
the previous or next prompt by tapping the ↑ and ↓ arrows.
To program another sensor tap Next .
1.
To exit programming, tap Skip then End and Exit . Upon
2.
exit, the panel takes several seconds to restart

Summary of Wired Sensor # Screen

After setting all the options for a sensor, the wired sensor
summary screen is displayed . The screen can also be displayed
for programmed sensors during wired sensor program editing by
tapping the Sum button.
• While programming each wired sensor remember that the
← and → arrow bu ons step through each of the wired
sensor numbers .
• To return to programming, tap Edit Current or Edit Next .
Tap Skip to go to question number Q3 (RF Key Fob
•
Programming) . See "Wireless (RF) Key Fob Programming"
on page 44 .
Figure 48
Summary of Wired Sensor # Screen
NOTE: For the detailed steps of programming a wired sensor, see
"Wired Sensor Programming Questions" on page

Wired Sensor Programming Questions

Q2: Select Wired Sensor # (1-2)
Two hardwired loops can be used as sensors with each Control
Panel. The options for each wired sensor are programmed with
sub-option questions.
• Begin by entering the wired sensor number or select it using
the ← or → arrows.
• After selecting the wired sensor number, program the wired
sensor details by using the ↑ and ↓ arrows to select each
of the sub-options.
NOTE: To skip wired sensor programming, tap Skip to jump
from question Q2 to question Q3. See
Programming" on page 44 .
Q: Select Wired Sensor# Type
DEFAULT: (00) Unused
Each wired sensor needs to be assigned to a sensor type . Select
the sensor type that matches the wired sensor's function using the
← or → arrows or enter the sensor type number directly on the
keypad .
In the table below, a "YES" indicates the sensor type can be used
for the wired sensor. An "NO" indicates the sensor type is not used.
Sensor Types (Zone) RF Sensors
(00) Unused Yes
(01) Exit/Entry 1 Yes
(02) Exit/Entry 2 Yes
(03) Perimeter Yes
Copyright © 2018 Nortek Security & Control
Installer Programming
41 .
"Wireless (RF) Key Fob
Wired Sensors
Yes
Yes
Yes
Yes
