GC2e Wireless Security System | Installation and Programming Guide

Control Panel Wiring

The third-hand hanging strap allows you to hang the
Control Panel on the mounting plate during installation.
Hang the Control Panel on the mounting plate by the
1.
third-hand hanger strap.
Connect the hardwire loop and external sounder to
2.
the Control Panel's terminal block .

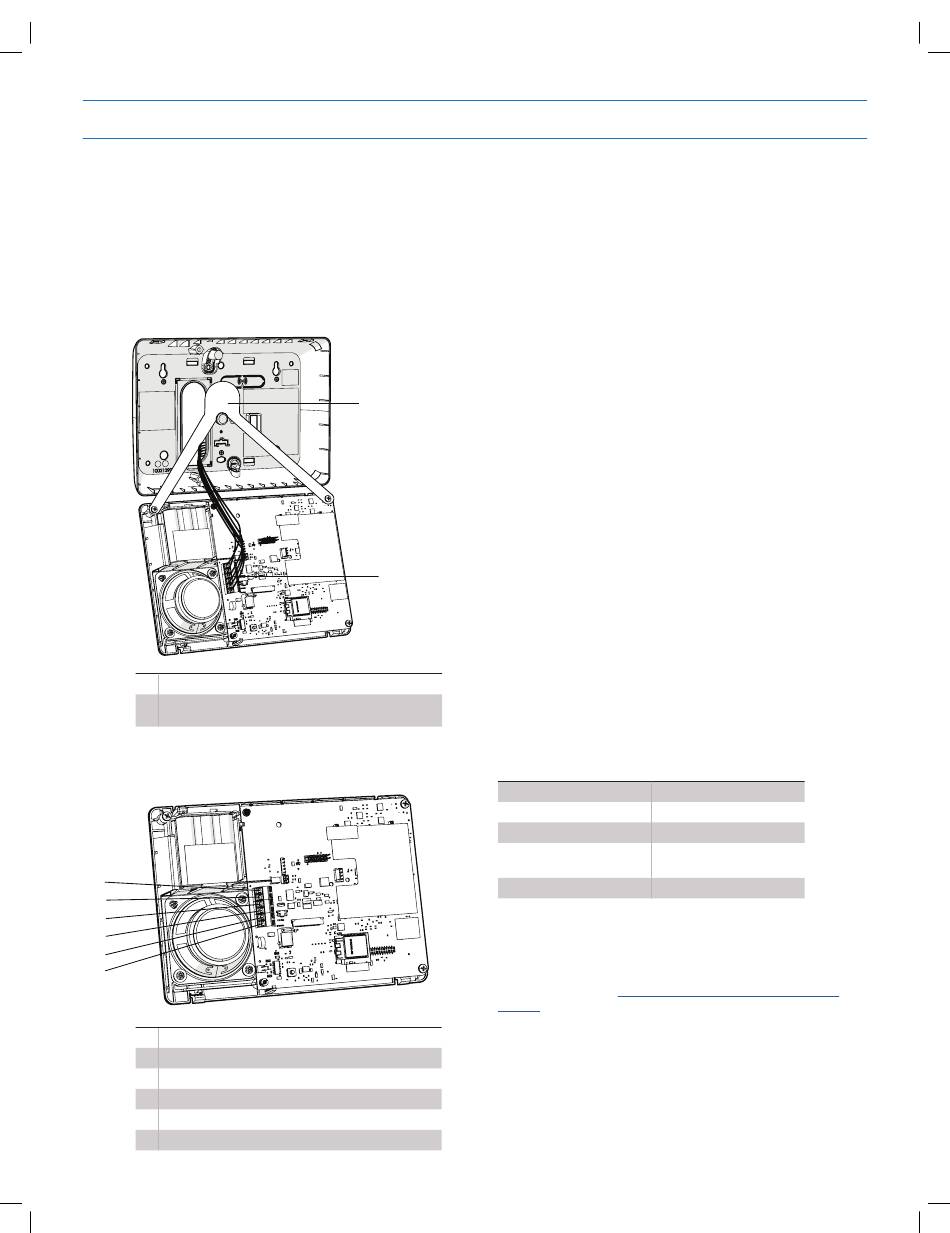

Figure 11
Third-Hand Hanging Strap
A
Third-hand hanging strap
Hardwire loops and external sounder connected to
B
terminals.

Terminal Block Wiring Diagram

Figure 12
Terminal Block Wiring Diagram
6
5
4
3
2
1
1
14 VDC Power Input (+)
2
14 VDC Power Input (-)
3
Common Ground (GND)
4
Bell (+)
5
Bell (-)
6
Hardwired Zone
Backup Battery Connection and Power
Supply Wiring
The backup battery connects to the Control Panel's circuit board
with a two (2)-pin header assembly.
The power supply features a two (2)-position terminal block
for connecting the power supply to the Control Panel power
terminals (connection wire not included).
Locate an unswitched wall outlet for the plug-in power
1.
supply .
WARNING: Never connect the power supply to switch-
controlled outlet .
Route two (2)-conductor wire from the power supply
2.
location to the Control Panel mounting plate. For wire size
A
and maximum length, see "Wired Size and Length", below.
Being careful to observe polarity, connect the wire to the
3.
power supply's DC+ and DC- terminals. Do NOT plug the
power supply into an outlet at this time.
Being careful to observe polarity, connect the wire to the
4.
Control Panel input terminals 14VDC (+) Terminal 1 and
14VDC (-) Terminal 2.
NOTE: Grounding of the Control Panel is NOT required for proper
operation.
Plug the backup battery pack's connector into the connector
5.
on the Control Panel's circuit board . The Control Panel does
B
not recognize that the battery is connected until AC power
is connected to the power supply .
NOTE: The standard backup battery that is included with all
2GIG Control Panels does not support UL 985 installations.
To comply with the secondary supply requirement in UL
985: Household Fire Warning System Units, install the 2GIG
Console Battery Pack (This is a high-capacity 2600mAh Ni-MH
replacement battery pack).

Wire Size and Length

To ensure proper operation, do NOT exceed the following
maximum length for the wire size installed:
Wire Size
22 AWG
20 AWG
22 AWG 2-pairs
(19 AWG equivalent)
18 AWG
TIP: To ensure that the appropriate wire size and length is
installed, measure the voltage between the power connection
terminals at the back of the Control Panel . The voltage measured
must not fall below 11 volts DC or the Control Panel may display
nuisance "AC Power Loss" messages and send AC Loss Reports
to the Central Station.
page
53 .
Maximum Length
55 ft (16.8)
85 ft (25.9 m)
110 ft (33.5 m)
135 ft (41.1 m)
See "Q52: AC Loss Reports to CS (0‐1)" on
