System Status Icons

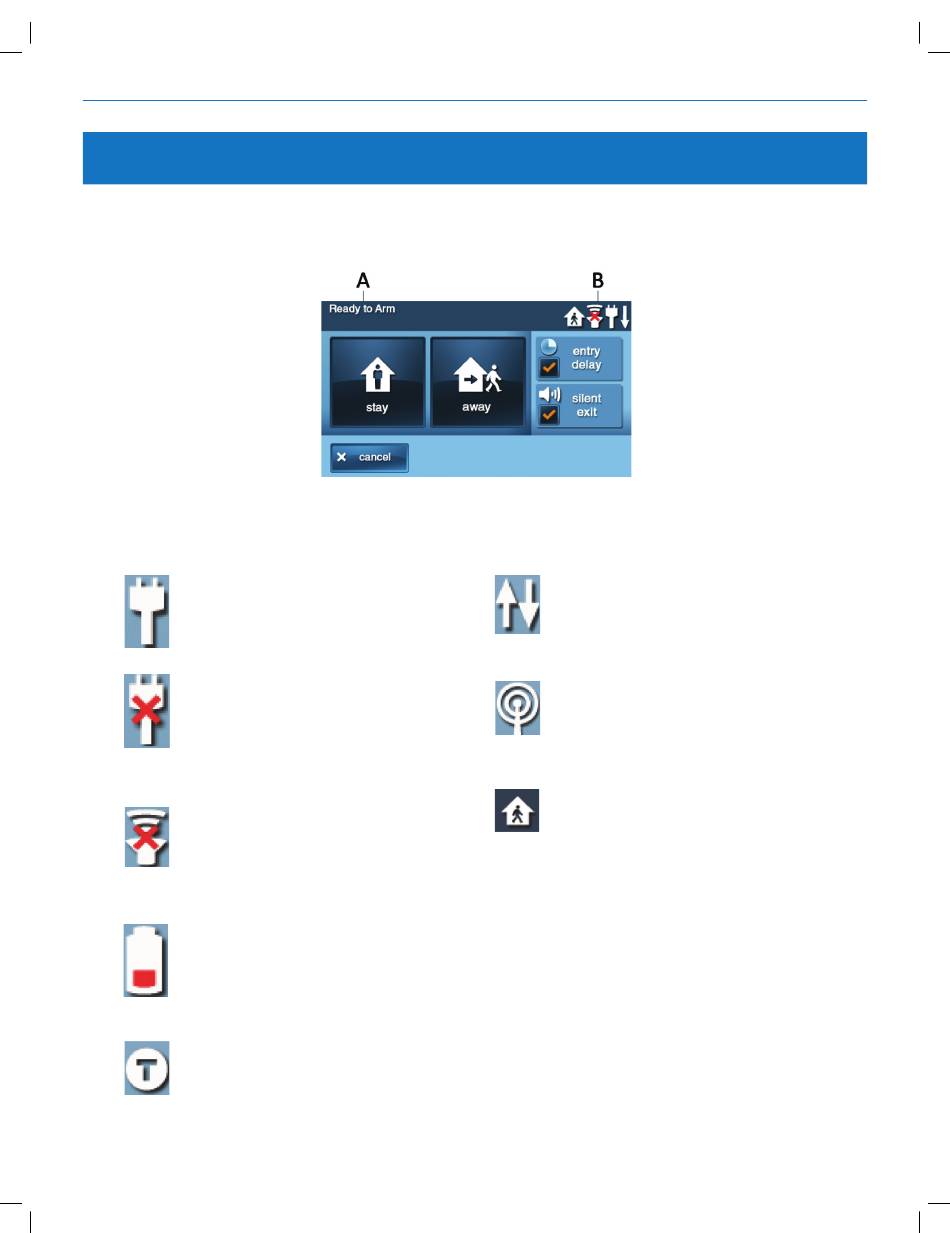

The top line of the Control Panel's display is the status bar that shows the current system mode, the status of the sensors, and any current
system trouble alerts. Special icons are displayed on the right side to provide visual indications of the system's current condition.
A Status Bar
B Status Icons
AC Power On/OFF
Figure 30 AC Power ON
The AC Power icon shows the status of the
AC power to the Control Panel . A WHITE plug
appears when AC power is present .
Figure 31 AC Power OFF
The AC Power icon shows the status of the AC
power to the Control Panel. A RED "X" appears
over the WHITE plug when AC power is absent .
Sounder Disabled
Figure 32 Sounder Disabled
If the system's internal sounder has been
lowered and external sounder has been
disabled by the installer for testing, the sounder
disabled icon appears. It also flashes to indicate
silent arming .
Low Backup Battery
Figure 33 Low Backup Battery
If the Control Panel's backup battery tests low,
the low backup battery icon appears.
Test Mode
Figure 34 Test Mode
This icon displays when the system is in Walk
Test mode .
Figure 29
System Status Icons
Touch Screen Keypad Traffic
Figure 35 Touch Screen Keypad Traffic
An up arrow indicates the panel is sending
information to the touch screen keypad (if installed).
A down arrow indicates the touch screen keypad is
sending information to panel.
Cell Radio
Figure 36 Cell Radio
If the option LTE (Cellular) Radio Module is installed,
the Cell Radio icon appears while the Control Panel
is receiving Over-the-Air (OTA) firmware updates.
Interior sensor open
Figure 37 Interior Sensor Open
If an interior sensor is open (or a motion detector
has just been activated) this icon appears. As a
warning, the icon flashes during arming.
