GC2e Wireless Security System | Installation and Programming Guide
NOTE: In the United States, wiring routed inside walls, ceilings,
and floors must comply with requirements of ANSI/NFPA 70:
National Electrical Code (NEC) and local building codes . For
wiring from the output of the 2GIG Class II Power Supply, wiring
rated CL2, CL2X, CL2R, or PLTC is recommended to satisfy these
requirements . If this wiring is installed in an air plenum (space
used for environmental air exchange) it must be rated CL2P
(plenum-rated).

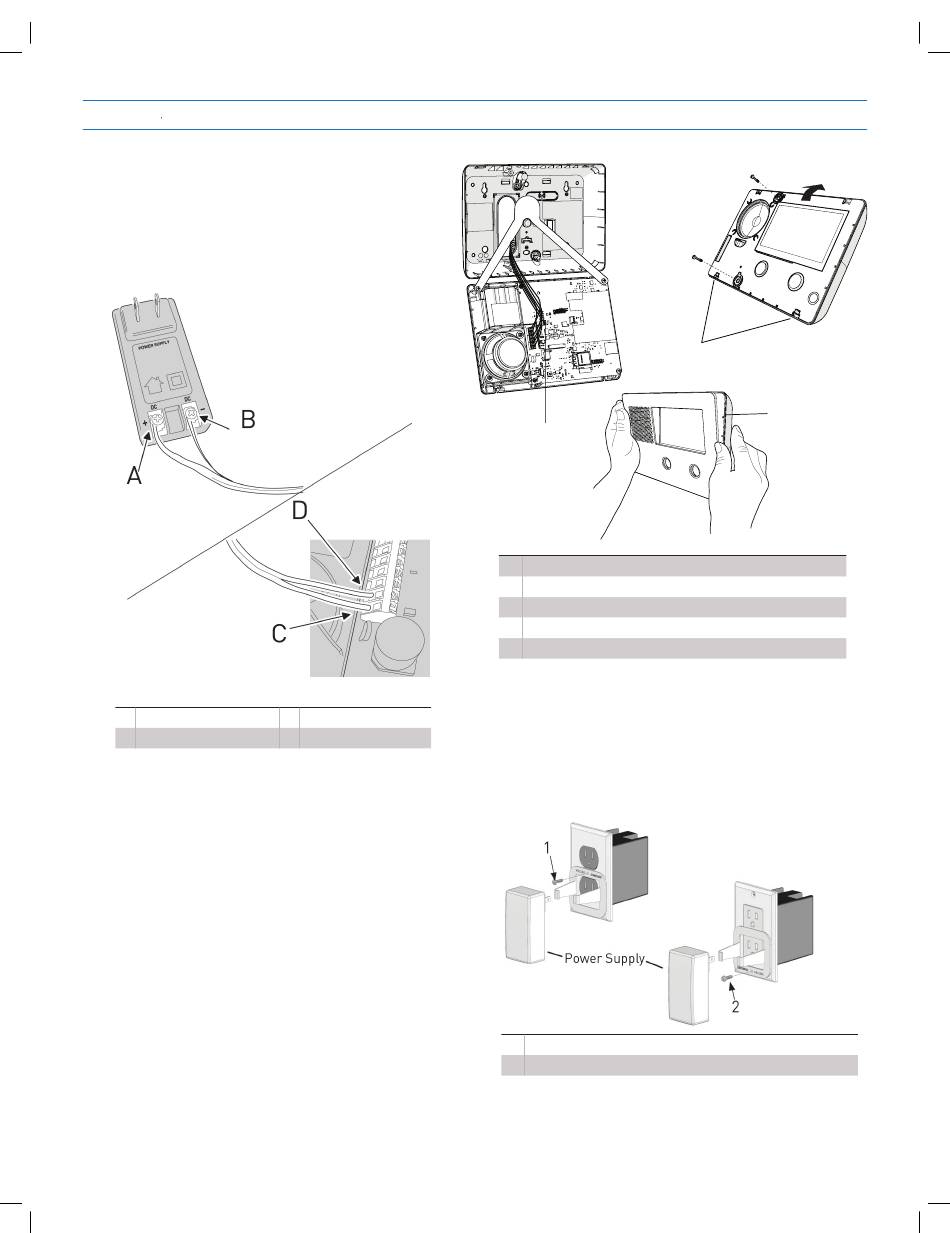

Figure 13
Power Supply Wiring
A Left Terminal 14 VDC (+)
B Right Terminal 14 VDC (-)

Control Panel and Power Supply Mounting

After all the wiring complete, follow these steps to power up the
Control Panel:
Place the bottom of the Control Panel over the lower lip
1.
of the backplate and flip the Control Panel upwards. Then
push the Control Panel over the mounting bracket until it
snaps into place, then secure it with the retaining screw .
Peel off the adhesive backing from the power supply
2.
retaining bracket and attach the bracket to the outlet with a
wall plate screw .
C 14 VDC (+) Terminal 1
D 14 VDC () Terminal 2
Figure 14
Connecting Battery and Closing Panel
D
A
A Connect battery
B Align mounting plate tabs inside of console bottom edge
C Swing console up and snap into the mounting plate
D Secure console with two screws in retaining mode
E Align face plate and press into place
Spread the retaining bracket ears and plug the Control
3.
Panel's power supply into the unswitched wall outlet . Slots
are provided on the bracket to secure the power supply
with a zip-tie.
After about five (5) seconds, the Control Panel indicates
4.
that power has been applied . If the Control Panel does not
power up, check the power supply polarity .
Figure 15
Securing the Power Supply
1 Place the screw here for a bracket on a standard style outlet.
2 Place the screw here for a bracket on a decora style outlet.
NOTE: In the United States (and other countries where it is
required), use the power supply retaining bracket . In Canada, the
power supply retaining bracket is not required .
Copyright © 2018 Nortek Security & Control
Installation
D
C
B
E
18
