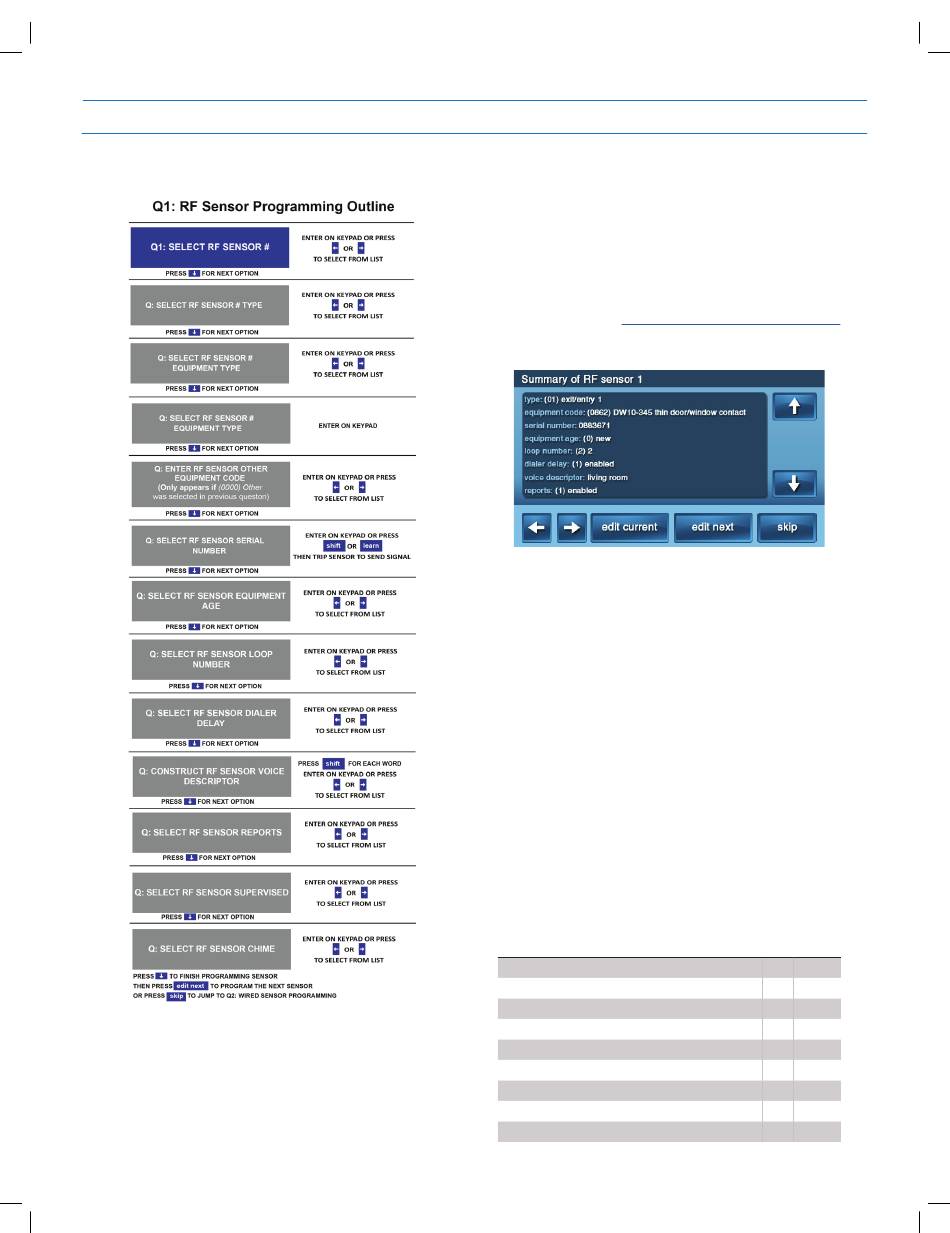

Q1: RF Sensor Programming Outline
Figure 45
RF Sensor Programming Outline
Scroll between op ons using the ← and → arrows. Move to
the previous or next prompt by tapping the ↑ and ↓ arrows.
To program another sensor tap Next .
1.
1
To exit programming, tap Skip then End and Exit . Upon
2.
exit, the panel takes several seconds to restart . *Only use
d for "other" equipment
**Tap Insert for each word . To select from the list, you can use
the keypad or tap the ← or → arrows.
Summary of RF Sensor # Screen
After setting all the options for a sensor, the RF sensor summary
screen is displayed . The screen can also be displayed for
programmed sensors during RF sensor program editing by tapping
the Sum button.
•
While programming each RF sensor remember that the ←
and → arrow bu ons step through each of the RF sensor
numbers .
•
To return to programming, tap Edit Current or Edit Next .
Tap Skip to go to question number Q2 (Wired Sensor
•
Programming) . See
"Wired Sensor Programming" on page
Figure 46
Summary of RF Sensor # Screen
RF Sensor Programming Questions
Q1: Select RF Sensor # (01-48, 63-74)
Up to 60 wireless RF sensors can be used with each Control Panel.
The options for each sensor are programmed with sub-option
questions.
Enter the RF sensor number or tap the ← or → arrows to
1.
select it .
Program the sensor details by using the ↑ and ↓ arrows to
2.
select each of the sub-options.
NOTE: To skip Q1 and jump directly to Q2 for Wired Sensor
Programming, tap Skip .
Q: Select RF Sensor # Type
DEFAULT: (00) Unused
Answer this question to define the sensor type (zone). Simply
enter the appropriate code (see table below) or tap the ← or →
arrows to select the desired zone .
In the table below, a "Y" indicates the sensor type can be assigned.
A "N" indicates the sensor type is not used, an d an asterisk (*)
denotes that selecting this sensor type also requires you to answer
the Q: Select RF Sensor # Equipment Type question.
Sensor Types (Zone)
(00) Unused
(01) Exit/Entry 1
(02) Exit/Entry 2
(03) Perimeter
(04) Interior Follower*
(05) Day Zone
(06) 24-Hour Silent Alarm*
(07) 24-Hour Audible Alarm*
