1.6.11 Pin assignment ITC8xxxDS15
Figure 9
PIN
Function
TEC element
8
TEC - (ground)
7
TEC +
Temperature sensor
6
AD 590 +
13
AD 590 -
14
Thermistor ground
15
Thermistor
Laser diode
11
Laser diode anode (polarity CG)
3
Laser diode ground
10
Laser diode cathode (polarity AG)
Monitor diode
2
Monitor diode ground
4
Monitor diode anode or cathode / Bias
Measurement input for laser diode voltage
9
U
– (cathode)
LD
12
U
+ (anode)
LD
Interlock
1
Interlock
5
Interlock ground
_____________________________________________________________________________________________________
© 2010
Thorlabs
9-10-11-12-13-14-15
1-2-3-4-5-6-7-8

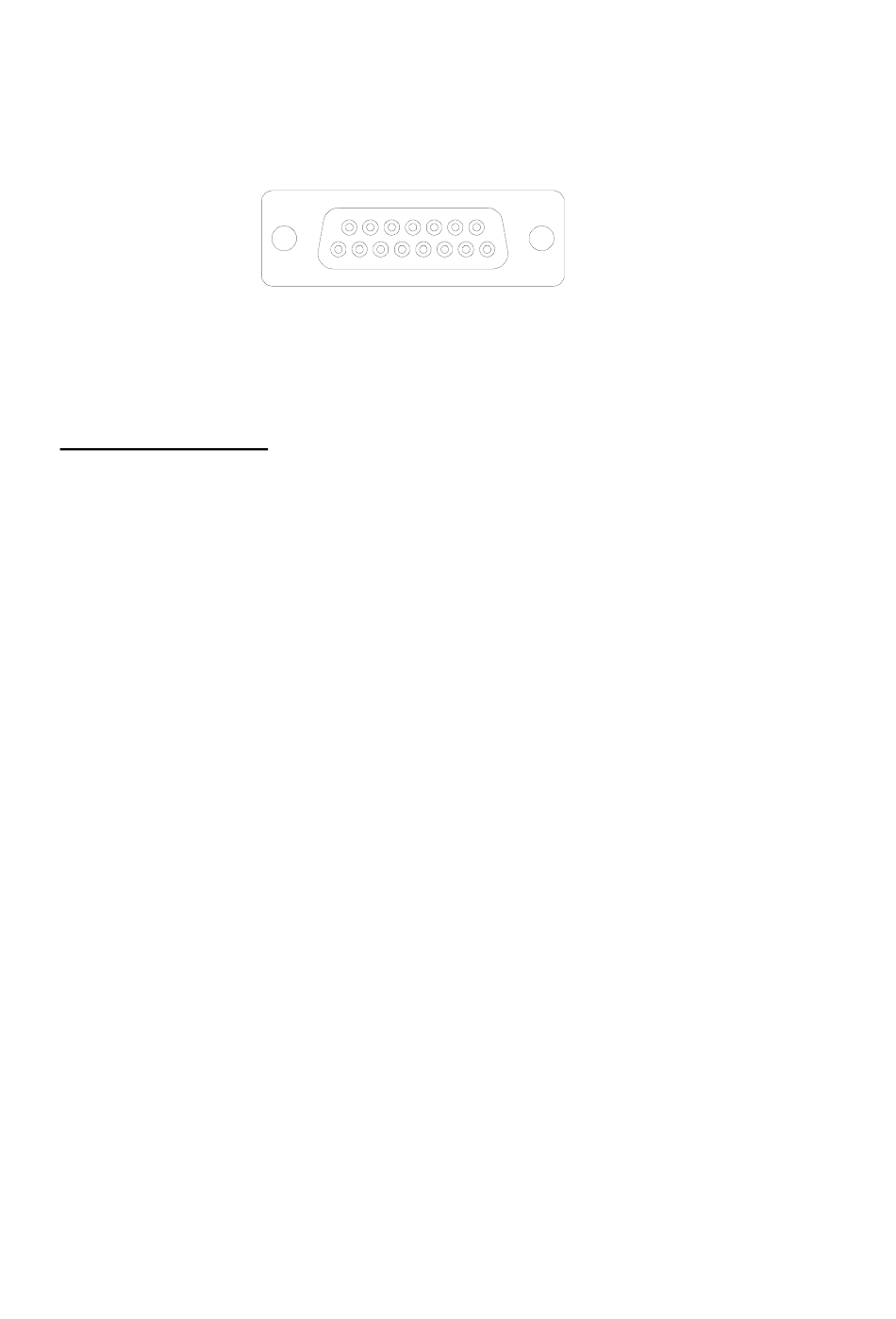

ITC8xxxDS15 D-SUB I/O jack (female)
Connecting components
