Operation Manual
Thorlabs Instrumentation
PRO8000 (-4) / PRO800
Optical Sources
WDM8xxxx
LS8xxxx
2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDM8 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THORLABS WDM8 Series

Summary of Contents for THORLABS WDM8 Series

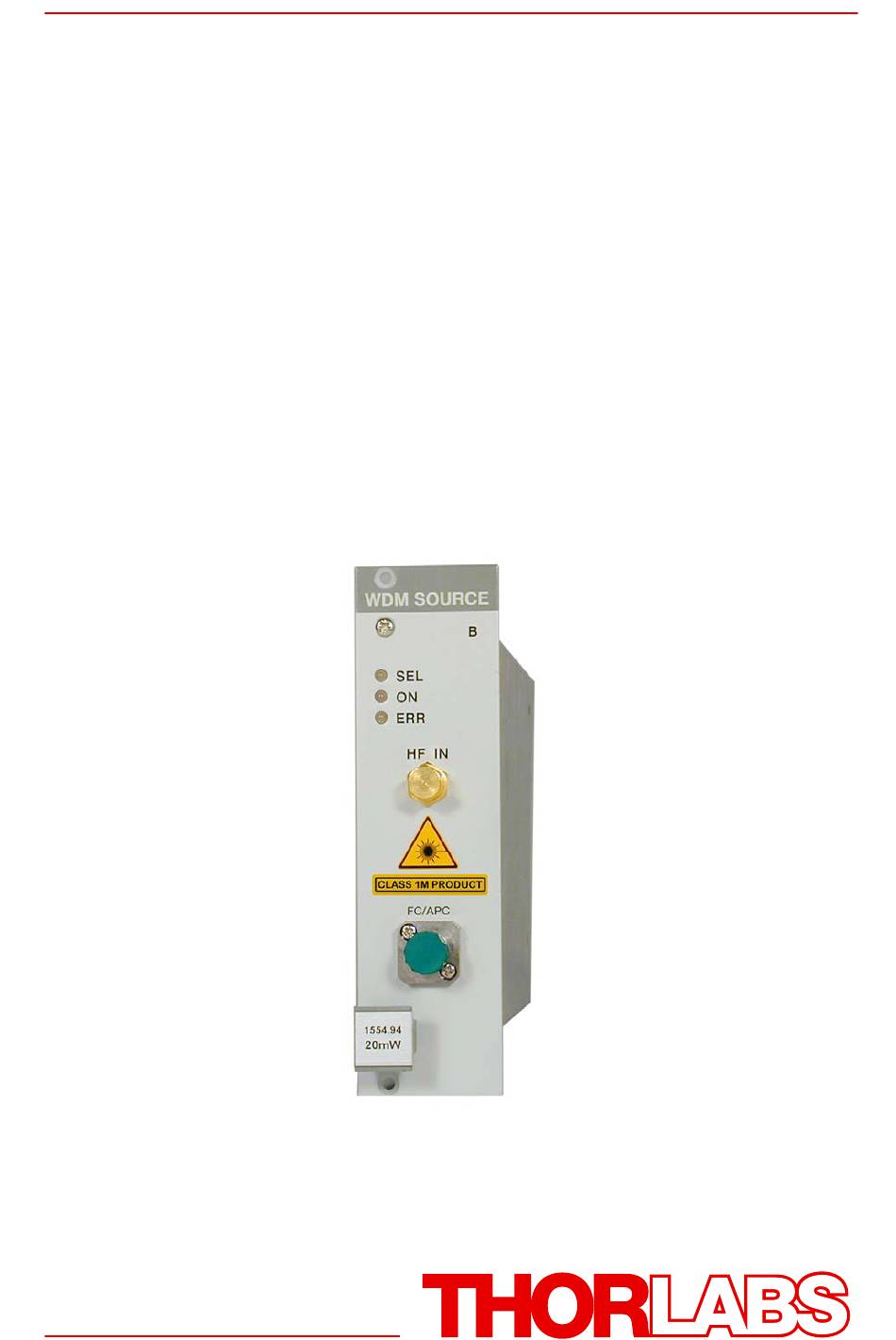

  • Page 1 Operation Manual Thorlabs Instrumentation PRO8000 (-4) / PRO800 Optical Sources WDM8xxxx LS8xxxx 2010...
  • Page 2 ________________________________________________ Version: Date: 16.09.2010 © Copyright 2010, Thorlabs _______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 3: Table Of Contents

    3.2 Commands of the different optical source modules 3.2.1 Select the module slot 3.2.2 WDM Modules 3.2.3 LS modules 3.3 Status reporting 3.3.1 Standard event status register (ESR) 3.3.2 Standard event status enable register (ESE) 3.3.3 Status byte register (STB) ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 4 3.4 IEEE error messages Service and Maintenance 4.1 Troubleshooting 4.2 Recalibration Appendix 5.1 Warranty 5.2 Thorlabs “End of Life” policy (WEEE) 5.2.1 Waste treatment on your own responsibility 5.2.2 Ecological background 5.3 List of acronyms and abbreviations 5.4 List of figures 5.5 Certifications and compliances...
  • Page 5 In the displays shown by the PRO8 you may find the name PROFILE. PROFILE was the name of the manufacturer before it was acquired by Thorlabs and renamed to Thorlabs. Thorlabs This part of the instruction manual contains all the specific information on how to operate the optical source modules WDM8xxxx and LS8xxxx.

  • Page 6: General Description Of The Optical Source Modules

    1625 nm, according to ordered wavelength. Emitted optical power: up to 50 mW, according to ordered output power! Numerical aperture of the beam 0.11. CAUTION – The use of optical instruments with these products will increase eye hazard!! ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 7 Safety _________________________________________________________________________________ Attention The laser modules supplied by Thorlabs are class 1M laser systems. However, if you collimate or focus the laser beam you will create a class 3R or class 3B laser system! In that case additional safety measures have to be observed!
  • Page 8 PRO8000, PRO8000-4 or PRO800. All modules must only be operated with duly shielded connection cables. Only with written consent from Thorlabs may changes to single components be carried out or components not supplied by Thorlabs be used. This precision device is only dispatchable if duly packed into the complete original packaging including the plastic form parts.

  • Page 9: Properties

    • LabVIEW ® ® -and LabWindows/CVI drivers ® For the PRO8000 (-4) / PRO800 supplies LabVIEW and LabWin- Thorlabs ®- dows/CVI drivers for MS Windows 32. Please refer to our homepage for the latest driver updates. http://www.thorlabs.com ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 10: Features

    On request, all PRO8000 (-4) / PRO800 Optical Source Modules can be supplied in a variety of versions, e.g. with different powers or wavelengths or modulation options. (refer to chapter 1.3, “Technical data” starting on page 9) ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 11: Technical Data

    > 40 dB typ. (> 36 dB min.) RIN (Relative intensity noise) > 145 dB / Hz (typ.) Optical isolation > 35 dB 1) Subject to DFB laser diode availability, 50 GHz and 25 GHz grid on request. ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 12 Input Impedance 10 kΩ Connector Optical Parameters Optical output connector (standard) FC/APC Fiber Safety Class Triangle on request Other connector styles (SC, E2000...) and non-angled (PC) ferrule on request Connector key aligned to slow axis on request ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 13: Common Technical Data For The Ls8Xxxx Modules

    TTL (all modules synchronous, BNC at rear of mainframe) 0 … 10 kHz Analog modulation input (option, SMA) DC … 50 kHz Optical parameters Optical output connector (standard) FC/APC Other connector styles (SC, E2000...) and non-angled (PC) ferrule on request ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 14: Operating The Pro8000 (-4) / Pro800 Optical Source Modules

    2 Operating the PRO8000 (-4) / PRO800 optical source modules 2.1 Operating elements on front panel LED display "module selected" LED display "module switched on" LED display "error" Modulation input (SMA, optional) Optical output (FC/APC) Figure 1 Front view of the WDM plug-in module ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 15: Connecting An Optical Fiber

    5% amplitude modulation. This results in a maximum gauss- shaped line-broadening of typ. more than 1 GHz. NOTE Percentage setting and bandwidth are not in strict linear relationship to each other! Triangular on request ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 16: Analog Modulation By An External Signal Source (Option)

    Wavelength stability with external modulation When using external modulators a retroaction on the laser module is excluded as far as possible if an optical isolator is used. Nevertheless, the consequent use of angle polished connectors is recommended. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 17: Operating A Wdm8Xxx Module

    Optical power CH1 1559.31 +3.00dBm Press the key again to turn off the module. The LED “ON” at the module extinguishes. CH1 1559.31 Attention Never switch on the laser output with no fiber installed! ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 18 CH2 -0.12°C λ TUNE: λ The softkey ( ) selects the wavelength, the softkey ( ) selects the optical power. The selected value can be adjusted by means of the tuning knob. Press make new settings valid. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 19: Error Messages

    Possible error messages (depending on the type of module) are: a) Display messages while operation failure: Internal supply voltage failure. Please contact <CHn Vcc fail > OK Thorlabs! Over Temperature Protection. Module has been <CHn OTP > OK switched off due to overheating. Operation is possi-...

  • Page 20: Functions In The Channel Menu

    Press (CHANGE) to change the wavelength. Adjust the wavelength with the tuning knob. The actual wavelength follows your input. Press to finish the wavelength tuning and saves the data even if the PRO800/PRO8000 (-4) is switched off. ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 21 Select the respective line with the cursor: f =193.100THz LD on 6.02dBm 4.000mW CHANGE Press (CHANGE) to change the optical power. Adjust the power with the tuning knob. Press to make settings valid and store the data in a non-volatile memory. ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 22 In the case of square modulation, the modulation never extinguishes the laser function of the diode, whereas the ' ' option is a real on/off modulation. Pulse Therefore the Modulation amplitude cannot be changed here, the amplitude display shows: ' Pulse ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 23 With noise modulation no frequency change is possible. The display only shows ‘ ’. noise 2.5.3.8 Display the serial number of the unit The last line of the menu shows the serial number, here CW module #1030-003. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 24: Operating A Ls8000 Module

    CH1 +0.00°C TUNE 2.6.1.2 Selecting a module Select a module for further input with the cursor using the softkeys e.g. : Pressing will lead to the channel menu (refer to chapter”2.5.1.2”, page 15) ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 25 The selected value can be adjusted by means of the tuning knob. Press make new settings valid. NOTE With the module switched off only the temperature can be selected. For presetting the optical power, enter the channel menu, see 2.6.3 ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 26: Error Messages

    Error messages are shown in the bottom line of the display regardless of which menu you are in. If an error occurs, the display shows for example: Po = +0.00dBm LD on Po =1.0000 mW δT =+0.150 °C <CH2 OTP > Channel causing the error Error message ok to confirm ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 27 Possible error messages (depending on the type of module) are: a) Display messages while operation failure: Internal supply voltage failure. Please contact <CHn Vcc fail > OK Thorlabs! Over Temperature Protection. Module has been <CHn OTP > OK switched off due to overheating. Operation is possi-...

  • Page 28: Functions In The Channel Menu

    To set the optical power (either in dBm or in mW) in the channel menu the respective line is selected with the cursor: Po = +0.00dBm LD on Po =1.0000 mW δT =+0.150 °C CHANGE Po = +0.00dBm LD on Po =1.0000 mW δT =+0.150 °C CHANGE ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 29 WDM and LS modules in the unit and is a 100% on/off modulation 2.6.3.5 Display the serial number of the unit The last line of the menu shows the serial number, here LS module #1030-003. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 30: Communication With A Control Computer

    A or ABGRS or A125TG or A1.23456A (Refer to IEE488.2 (8.7.1)) Numeric response data Type 1 (<NR1>) Is a numerical value with sign in integer notation. Examples: 1 or +1 or -22 or 14356789432 (Refer to IEE488.2 (8.7.2)) ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 31: Commands Of The Different Optical Source Modules

    ") :LFMOD :LFAMP This command has the same function as: :LFMOD:TYPE NOISE :LFMOD:ENABLE ON :LFAMP XX Programming: Programs modulation degree ":COHERENCE:SET <NR3>" coherence control Reading: Reads the modulation degree (%) for coherence ":COHERENCE:SET?" control [:COHERENCE:SET <NR3><LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 32 [:LAMBDA:MAX <NR3><LF>] 3.2.2.3 Turning the laser on and off Programming: Turns the laser output on ":LASER ON" Turns the laser output off ":LASER OFF" Reading: Reads status of the laser output ":LASER?" [:LASER ON<LF>] [:LASER OFF<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 33 [:LFAMP:MAX 7.000000E+001<LF>] 3.2.2.6 Selecting the modulation frequency Programming: Select the modulation frequency [Hz] ":LFFREQ:SET<NR3>" Reading: Reads selected modulation frequency ":LFFREQ:SET?" [:LFFREQ:SET 3.939536E+003<LF>] Reads minimum modulation frequency ":LFFREQ:MIN?" [:LFFREQ:MIN 2.000000E+001<LF>] Reads maximum modulation frequency ":LFFREQ:MAX?" [:LFFREQ:MAX 5.000000E+004<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 34 Reads the minimum output power allowed ":P_DBM:MIN?" [:P_DBM:MIN <NR3><LF>] Reads the maximum output power allowed ":P_DBM:MAX?" [:P_DBM:MAX <NR3><LF>] Reads the start value (in dBm) for ELCH ":P_DBM:START?" [:P_DBM:START <NR3><LF>] Reads the stop value (in dBm) for ELCH ":P_DBM:STOP?" [:P_DBM:STOP <NR3><LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 35 3.2.2.10 Activating the synchronous modulation Programming: Activates the participation of the module in ":SYNCMOD ON" synchronous modulation Deactivates the participation of the module in ":SYNCMOD OFF" synchronous modulation Reading: ":SYNCMOD?" [:SYNCMOD ON<LF>], [:SYNCMOD OFF<LF>] ELCH: Electrical Characterization ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 36 [:LAMBDA:MAX <NR3><LF>] 3.2.2.13 Switching the output on and off (LASER) Programming: Turns the laser output on ":LASER ON" Turns the laser output off ":LASER OFF" Reading: Reads status of the laser output ":LASER?" [:LASER ON<LF>] :LASER OFF<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 37 Reads maximum modulation amplitude (%) ":LFAMP:MAX?" [:LFAMP:MAX 7.000000E+001<LF>] 3.2.2.16 Selecting the modulation frequency Programming: Select modulation frequency ":LFFREQ:SET<NR3>" Reading: Reads selected modulation frequency ":LFFREQ:SET?" [:LFFREQ:SET 3.539536E+003<LF>] Reads minimum modulation frequency ":LFFREQ:MIN?" [:LFFREQ:MIN 2.000000E+001<LF>] Reads maximum modulation frequency ":LFFREQ:MAX?" [:LFFREQ:MAX 5.000000E+004<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 38 Reads the maximum output power allowed ":P_DBM:MAX?" of the module [:P_DBM:MAX <NR3><LF>] Reads the start value (in W) for ELCH ":P_DBM:START?" [:P_DBM:START <NR3><LF>] Reads the stop value (in W) for ELCH ":P_DBM:STOP?" [:P_DBM:STOP <NR3><LF>] ELCH: Electrical Characterization ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 39 3.2.2.20 Activating the synchronous modulation Programming: Activate the participation of the module in ":SYNCMOD ON" synchronous modulation Deactivate the participation of the module in ":SYNCMOD OFF" synchronous modulation Reading: ":SYNCMOD?" [:SYNCMOD ON<LF>], [:SYNCMOD OFF<LF>] ELCH: Electrical Characterization ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 40 Reads plug-in module ID (should be 243) ":TYPE:ID?" [:TYPE:ID 243<LF>] Reads plug in sub-type (here 4) ":TYPE:SUB?" [:TYPE:SUB 4<LF>] Reads plug-in module ID in text form, e.g. ":TYPE:TXT?" [:TYPE:TXT WDM81550 CCDM 20mW<LF>] Reads plug-in module serial number, e.g. ":TYPE:SN?" [:TYPE:SN 1030-004<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 41: Ls Modules

    [:DTEMP:MAX <NR3><LF>] 3.2.3.2 Switching the output on and off (OUTP) Programming: Turns the laser output on ":LASER ON" Turns the laser output off ":LASER OFF" Reading: Reads status of the laser output ":LASER?" [:LASER ON<LF>] [:LASER OFF<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 42 Programming the output power (in W) Programming: Programs the output power (in W) ":P_W:SET <NR3>" Programs the start value (in W) for ELCH ":P_W:START <NR3>" Programs the stop value (in W) for ELCH ":P_W:STOP <NR3>" ELCH: Electrical Characterization ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 43 Reads plug-in module ID (should be 249) ":TYPE:ID?" [:TYPE:ID 249<LF>] Reads plug in sub-type (here 7) ":TYPE:SUB?" [:TYPE:SUB 7<LF>] Reads plug-in module ID in plaintext, e.g. ":TYPE:TXT?" [:TYPE:TXT WDM81300 SLED <LF>] Reads plug-in module serial number, e.g. ":TYPE:SN?" [:TYPE:LSLD 1030-004<LF>] ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 44: Status Reporting

    Figure 8) and four 8 bit registers ESR, STB, ESE and SRE (see Figure 9) to program various service request functions and status reporting. (Please refer to the IEEE488.2-1992 standard chapter 11) (:STAT:DECn?) n: Slot number Figure 3 The 16-Bit Device error registers DEC, DEE and EDE ______________________________________________________________________________________________________ © 2010 Thorlabs...
  • Page 45 Status reporting _________________________________________________________________________________ Output buffer ERROR Queue or serial poll Service Request Generation Figure 4 The 8-Bit registers “ESR, STB, ESE and SRE” ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 46: Standard Event Status Register (Esr)

    “OR”-function, so that any "hit" leads to a logical 1 of bit 5 (ESB) of the STB. As any bit of the STB can assert an SRQ, every event (bit of the ESR) can be used to assert an SRQ. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 47: Status Byte Register (Stb)

    3.3.7 Reading the STB by serial poll If the controller does not support auto serial poll, the service request can also be detected via manual serial poll. If bit 6 is logical 1, a service request was asserted. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 48: Device Error Condition Register (Dec)

    DEE by logical "AND". These 8 results are combined by logical "OR", so that any "hit" leads to a logical 1 of bit 3 (DES) of the STB. As any bit of the STB can assert an SRQ, every error (bit of the DEE) can be used to assert an SRQ. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 49: Ieee Error Messages

    Over Temperature Protection. Module is overheated and cannot be switched on. [1202,"Internal power failure"] Possible reason: Severe hardware error. Contact Thorlabs. [1203, "Temperature is out of window"] Possible reason: The operating temperature of the laser module is not yet reached while attempting to switch on the module.

  • Page 50: Service And Maintenance

    Make sure the fiber is not broken and tighten the FC/APC connector. Do you use the right FC/APC-connector? If not, change the fiber connector to a APC-type. Is the desired output power programmed correctly? Adjust the desired output power on the display (refer to chapter 2.5.1.4) ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 51: Recalibration

    (refer to section 5.6, “Addresses ” on page 56) 4.2 Recalibration The WDM8 and LS8000 laser sourdce modules do not need any maintenance by the user. In order to ensure best performance, accuracy and reliable operation, Thorlabs recommends a recalibration cycle of 24 months. ______________________________________________________________________________________________________ © 2010...

  • Page 52: Appendix

    5.1 Warranty warrants material and production of the WDM8xxxx modules for a Thorlabs GmbH period of 24 months starting with the date of shipment. During this warranty period will see to defaults by repair or by exchange if these are entitled to Thorlabs GmbH warranty.

  • Page 53: Thorlabs "End Of Life" Policy (Weee)

    5.2.1 Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.

  • Page 54: Ecological Background

    Thorlabs “End of Life” policy (WEEE) ________________________________________________________________________________ 5.2.2 Ecological background It is well known that WEEE pollutes the environment by releasing toxic products during decomposition. The aim of the European RoHS directive is to reduce the content of toxic substances in electronic products in the future.

  • Page 55: List Of Acronyms And Abbreviations

    Numeric Response data of type 3 Message AVailable) Master Summary Status Personal Computer Physical Contact Photo Diode Radio Frequency ReQuest Service Message Service Request Enable Register Service ReQuest STatus Byte Register ThermoElectric Cooler (Peltier Element) Transistor-Transistor Logic Wavelength Division Multiplex ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 56: List Of Figures

    Front view of the WDM plug-in module Figure 2 External electro-optical modulation Figure 3 The 16-Bit Device error registers DEC, DEE and EDE Figure 4 The 8-Bit registers “ESR, STB, ESE and SRE” Figure 5 Crossed out “wheelie bin” symbol ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 57: Certifications And Compliances

    Compliance demonstrated using high-quality shielded interface cables. Compliance demonstrated with the WDM8x, C81x, and LS8x series modules installed in the Thorlabs PRO8x series of mainframes. Test configuration included a Thorlabs GmbH POL8000 Polarization Controller. Emissions, which exceed the levels required by these standards, may occur when this equipment is connected to a test object.

  • Page 58: Copyright

    All rights reserved. This manual may not be reproduced, transmitted or translated to another language, either as a whole or in parts, without the prior written permission of Thorlabs GmbH. Status: 2010 © Thorlabs GmbH. All rights reserved. ______________________________________________________________________________________________________ © 2010 Thorlabs...

  • Page 59: Addresses

    435 Route 206 North Newton, NJ 07860 Sales and Support Phone: +1-973-579-7227 Fax: +1-973-300-3600 Email: sales@thorlabs.com techsupport@thorlabs.com Web: www.thorlabs.com Japan Thorlabs Japan Inc. 3-6-3, Kitamachi, Nerima-ku, Tokyo 179-0081 Japan Sales and Support Phone: +81-3-6915-7701 Fax: +81-3-6915-7716 Email: sales@thorlabs.jp Web: www.thorlabs.co.jp ______________________________________________________________________________________________________ ©...
  • Page 60 Web: www.thorlabs.com Our company is also represented by several distributors and sales offices throughout the world. Please call our hotline, send an Email to ask for your nearest distributor or just visit our homepage http://www.thorlabs.com ______________________________________________________________________________________________________ © 2010 Thorlabs...
