1.6.4 Pin assignment TEC connector

Figure 4
Pin
Function
TEC element
5,6
TEC element +
13,14,15 TEC element - (ground)
Status LED
1
Status-LED anode
8
Status-LED cathode (ground)
Temperature sensor
3
Thermistor - (ground)
4
Thermistor +
10
AD590 – (PT100 for ITC8xxxPT)
11
AD590 + (PT100 for ITC8xxxPT)
Connect the TEC element and the temperature sensor with shielded cables to the
TEC connector.
The shielding of the cable must be connected to ground (pin 13,14,15).
_____________________________________________________________________________________________________
© 2010
Thorlabs
15
14
13
12
11
10
9

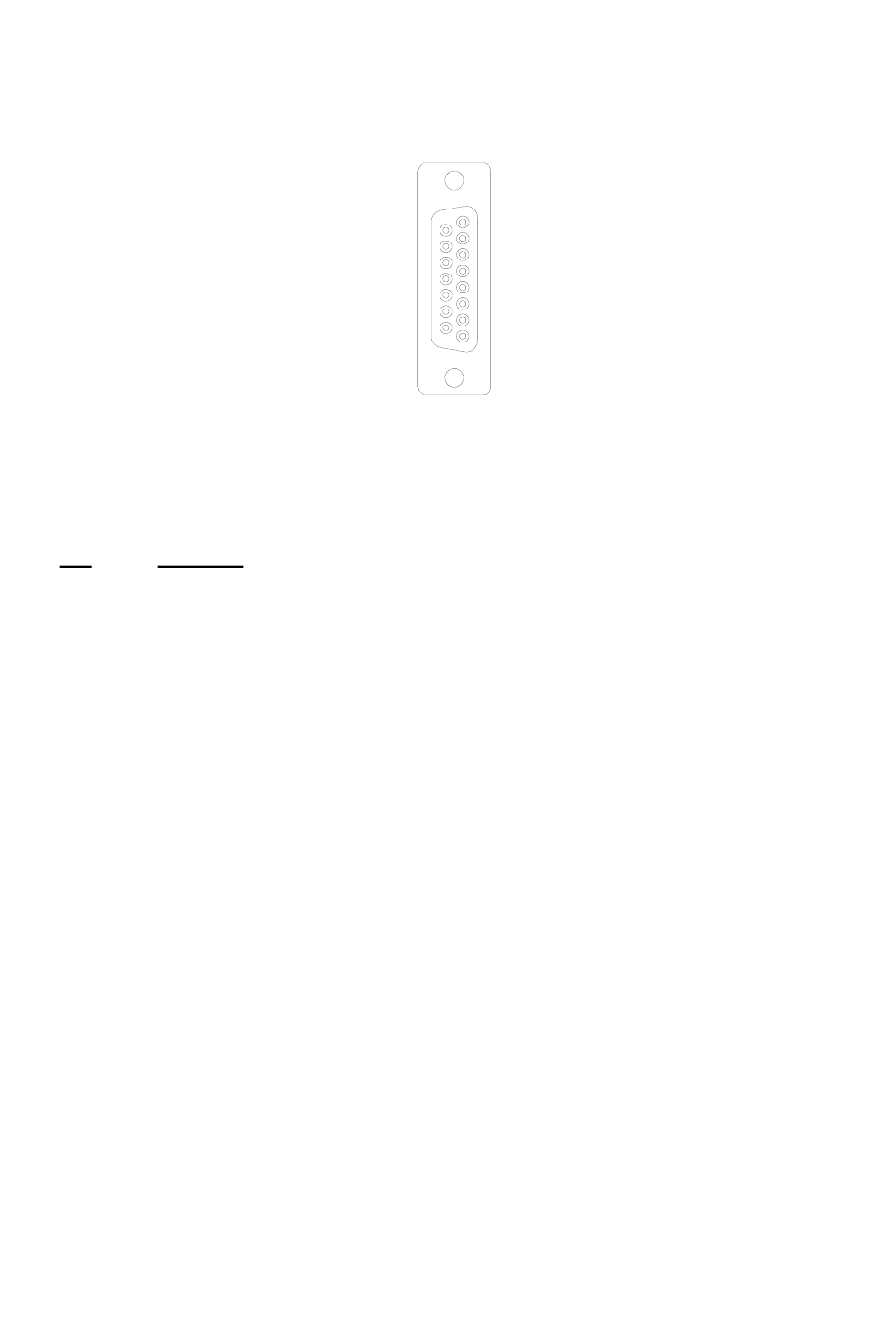

Pin assignment of the TEC connector (female)
Connecting components
8
7
6
5
4
3
2
1
19
