Rear Panel Features

4
A A
B B
C C
D D

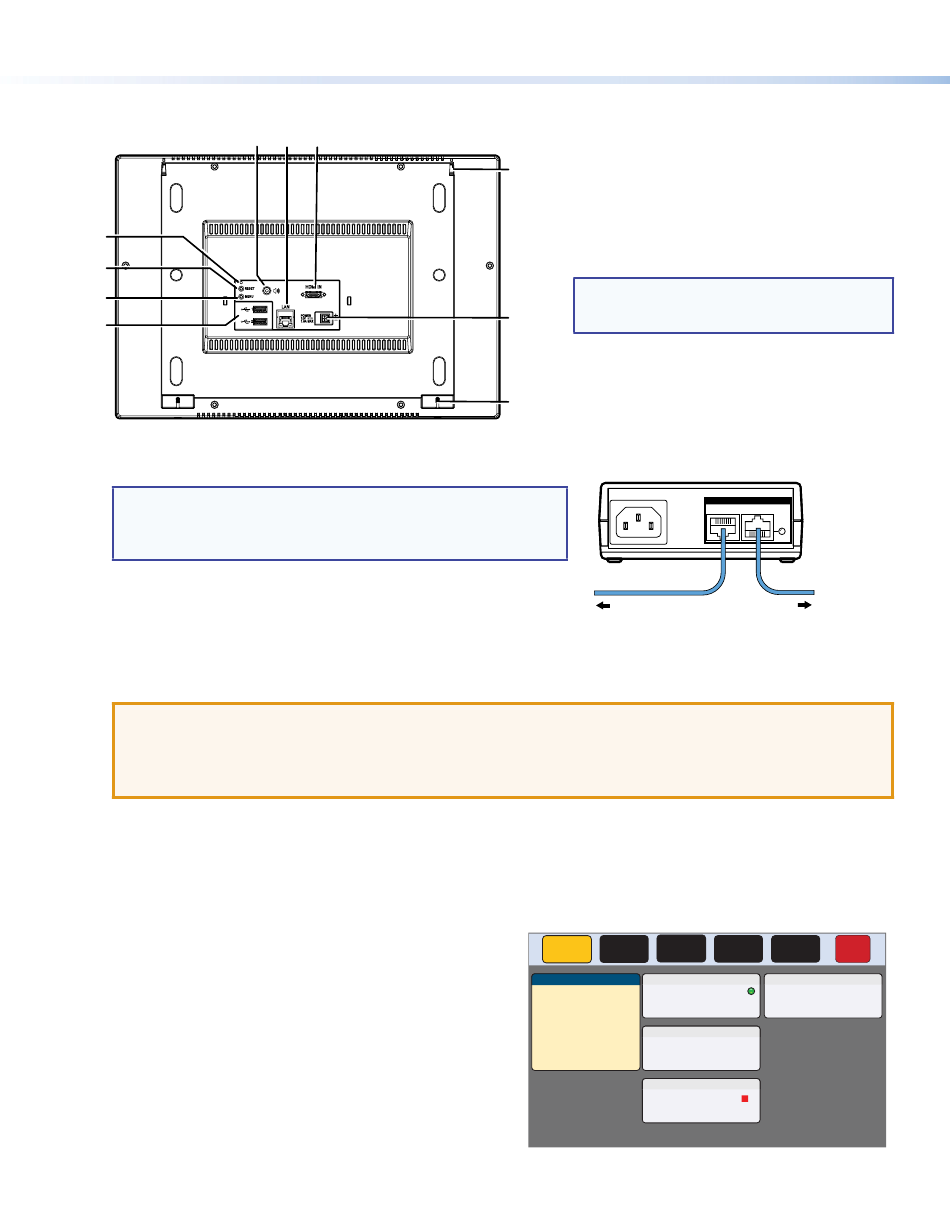

FPC 6000 Rear Panel
Figure 4.
F
XTP/LAN/PoE Input
NOTE:
power injector or a 12 VDC, 3.0 A power supply (which must be
purchased separately). Do not remotely power the touchpanel using
an XTP device.
XTP input — Do not connect the FPC 6000 directly to an XTP source.
•
LAN input — If you use the provided 12 VDC power supply, connect
•
the FPC 6000 directly to the network using a twisted pair cable,
terminated with an RJ-45 connector.
PoE input — If you use the provided PoE power injector, connect the
•
FPC 6000 to the power injector output and connect the power injector
input to the LAN (see figure 4).
ATTENTION:
•
Do not power on the touchpanels or control processors until you have read the Attention in the "Rear Panel Features"
section of the FPC 6000 User Guide.
•
Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « Rear Panel
Features » du FPC 6000 User Guide.
G
HDMI Input — No function in FPC 6000.
H
Mounting Slot (2) — Used to attach the mounting plate to the FPC 6000.
I
12 VDC Power Supply Input — If you are not using PoE, connect a 12 VDC, 3.0 A power supply to this captive screw connector.
The power supply must be purchased separately. Extron recommends the PS 1230 Limited Power Source (LPS).
J
Mounting Screw Slot (2) — Used to secure the mounting plate to the FPC 6000.

Setup Menu

Press the FPC Settings link on the Login screen to open the
setup menu. Select any of the five available screens ( Status ,
Network , Display , Audio , and Advanced ) by pressing the
appropriate button in the navigation bar at the top of the screen
(for more information, see the FPC 6000 User Guide ).
The setup menu is used to configure the network settings for
the FPC 6000.
