Computer SMART III

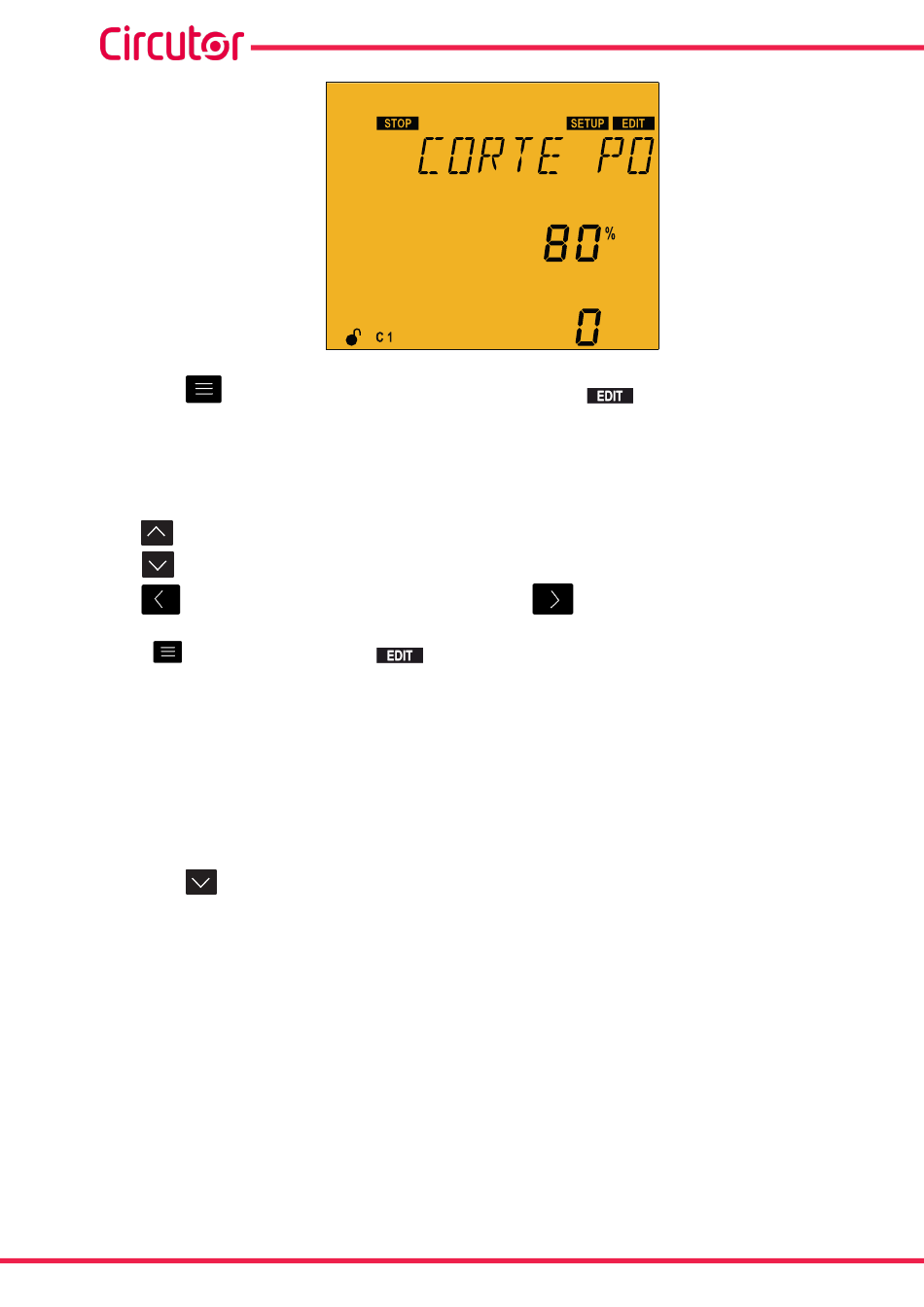

Press the
key to enter edit mode. It is identified by the
symbol and the flashing of the
digits to be modified.
The voltage threshold is programmed as a percentage of the configured primary voltage's value ("
5.12.-
").
VOLTAGE TRANSFORMATION RATIO
The
key increases the digit value or shows the next option.
The
key reduces the digit value or shows the next option.
The
key skips to the previous parameter and the
key skips to the next parameter.
Press
to validate the data; the
symbol disappears from the display.
Maximum value: 0 %.
Minimum value: 100 %.
Note: If 0% is programmed, the functionality is disabled.
Note: The value displayed in the fourth row (0 in the image) is not editable and indicates the number
of times that the Undervoltage trip function has been activated. This value is reset each time the value
is reconfigured.
Press the
key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen,
"5.30.- SIMULATION
.
SCREEN"
92
Instruction Manual
