Computer SMART III
3�5�5�- 3 voltages + neutral and 1 current, Computer SMART III 12 model
Power Supply
A1
Power Supply
L1
L2
L3
N

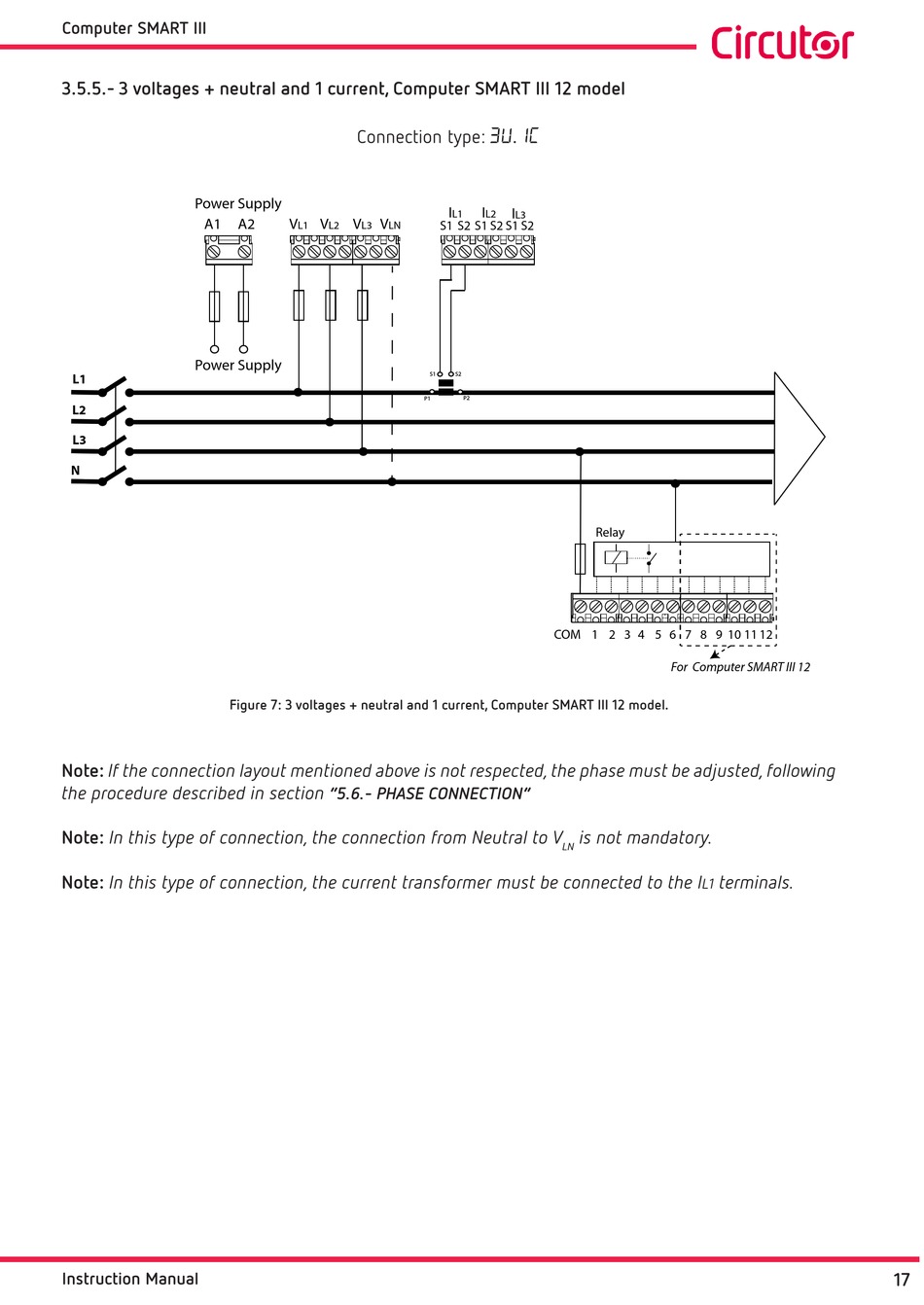

Figure 7: 3 voltages + neutral and 1 current, Computer SMART III 12 model�
Note: If the connection layout mentioned above is not respected, the phase must be adjusted, following
the procedure described in section
Note: In this type of connection, the connection from Neutral to V
Note: In this type of connection, the current transformer must be connected to the I
Instruction Manual
Connection type:
A2 V V V V
L1 L2 L3 LN
"5.6.- PHASE CONNECTION"
3U.1C
I I
I
L1 L2
L3
S1 S2 S1 S2 S1 S2
S1 S2
P2
P1
Relay
COM 1 2 3 4 5 6 7 8 9 10 11 12
is not mandatory.
LN
For Computer SMART III 12
terminals.
L1
17
