5�30�- Simulation Screen - Circutor Computer SMART III 6 Instruction Manual

Computer SMART III
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen,
.
SCREEN"

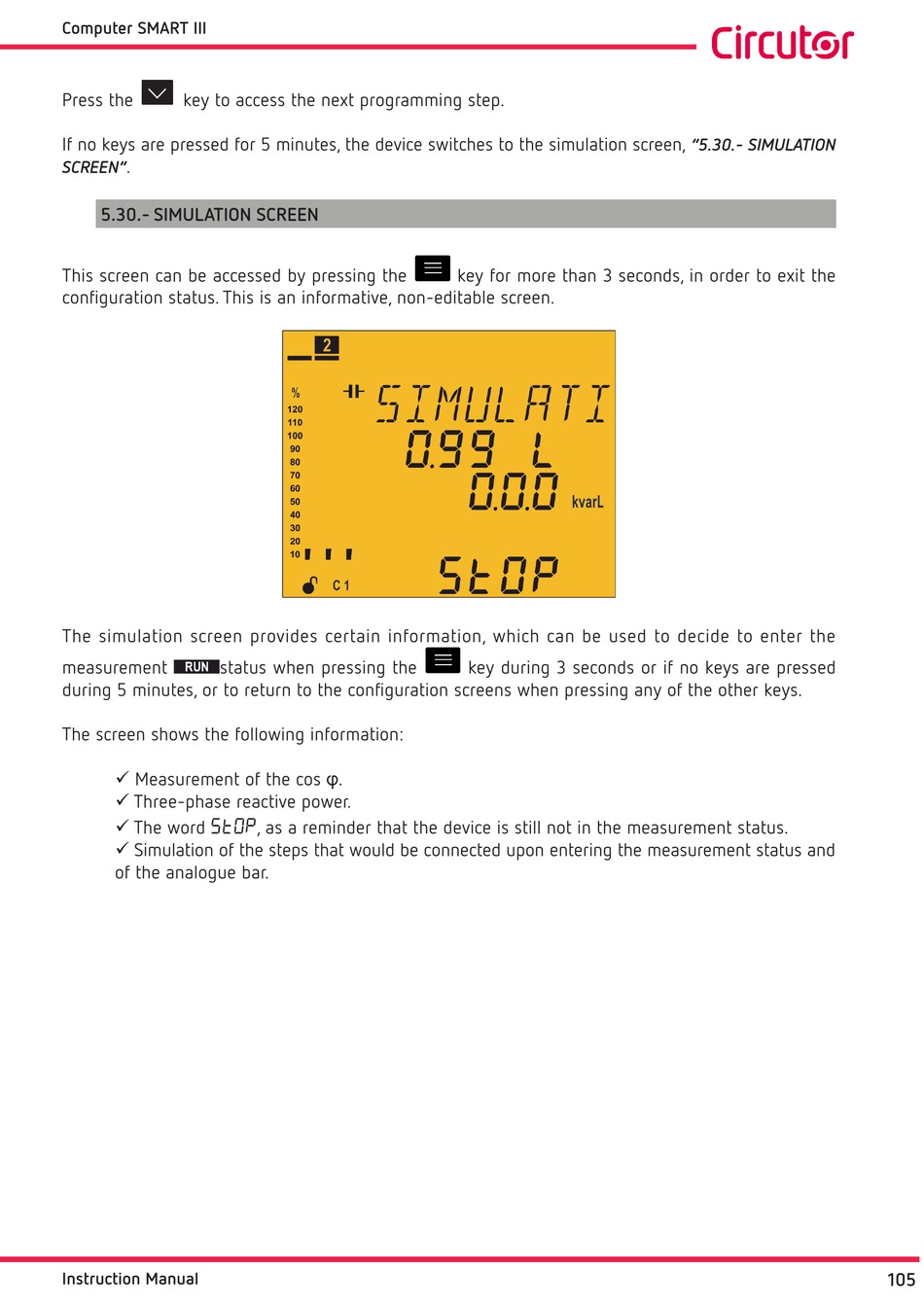

5�30�- SIMULATION SCREEN
This screen can be accessed by pressing the
configuration status. This is an informative, non-editable screen.
The simulation screen provides certain information, which can be used to decide to enter the
measurement status when pressing the
during 5 minutes, or to return to the configuration screens when pressing any of the other keys.
The screen shows the following information:
 Measurement of the cos φ.
 Three-phase reactive power.
STOP
 The word
 Simulation of the steps that would be connected upon entering the measurement status and
of the analogue bar.
Instruction Manual
, as a reminder that the device is still not in the measurement status.
key for more than 3 seconds, in order to exit the
key during 3 seconds or if no keys are pressed
"5.30.- SIMULATION
