Computer SMART III

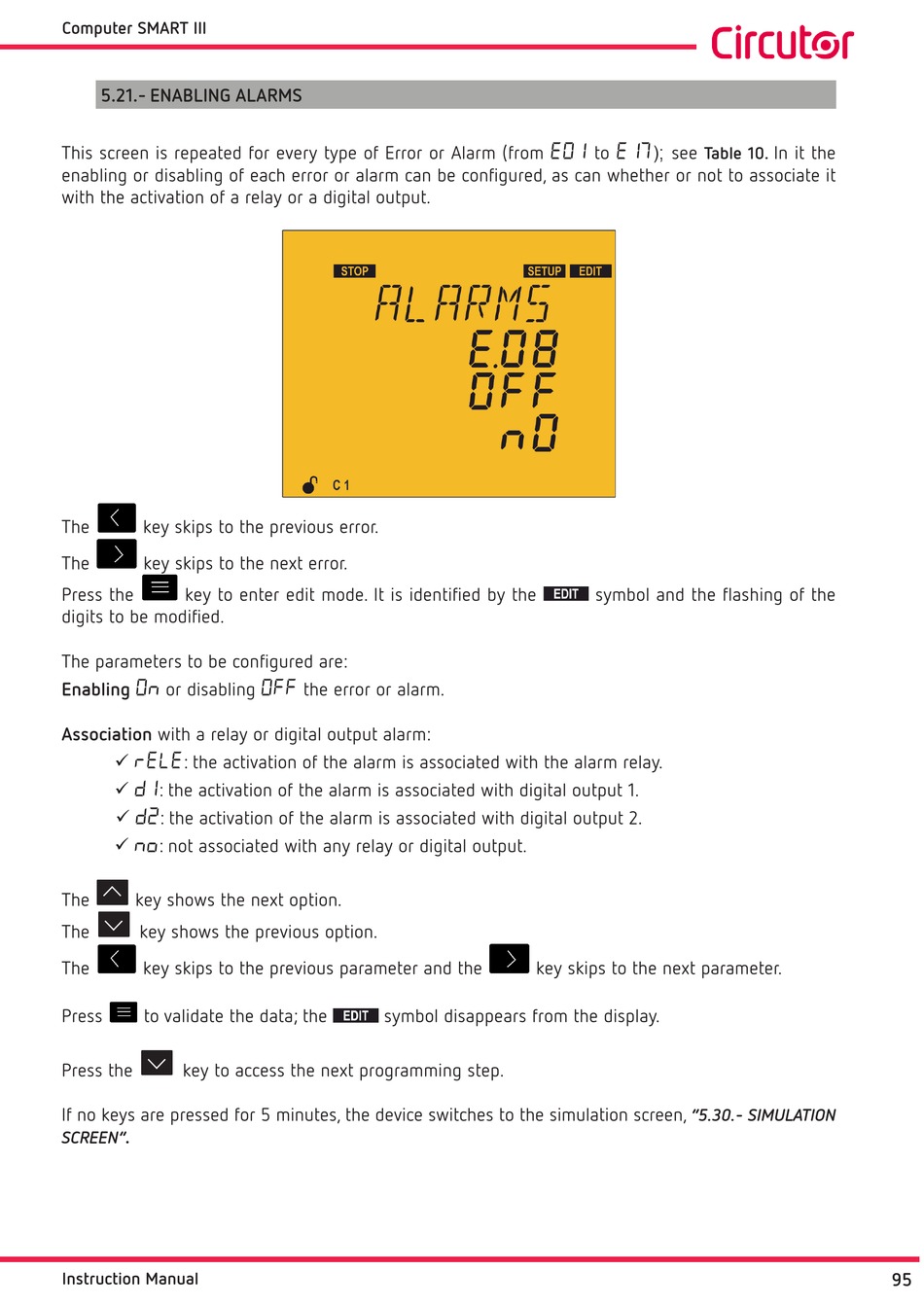

5�21�- ENABLING ALARMS
This screen is repeated for every type of Error or Alarm (from
enabling or disabling of each error or alarm can be configured, as can whether or not to associate it
with the activation of a relay or a digital output.
The key skips to the previous error.
The key skips to the next error.
Press the key to enter edit mode. It is identified by the
digits to be modified.
The parameters to be configured are:
ON
Enabling or disabling
Association with a relay or digital output alarm:
reLe
: the activation of the alarm is associated with the alarm relay.

d1
: the activation of the alarm is associated with digital output 1.

d2
: the activation of the alarm is associated with digital output 2.

no
: not associated with any relay or digital output.

The key shows the next option.
The key shows the previous option.
The key skips to the previous parameter and the
Press to validate the data; the
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen,
.
SCREEN"
Instruction Manual
OFF
the error or alarm.
symbol disappears from the display.
E01 E17
); see
to
Table 10�
symbol and the flashing of the
key skips to the next parameter.
"5.30.- SIMULATION
In it the
95
