Computer SMART III

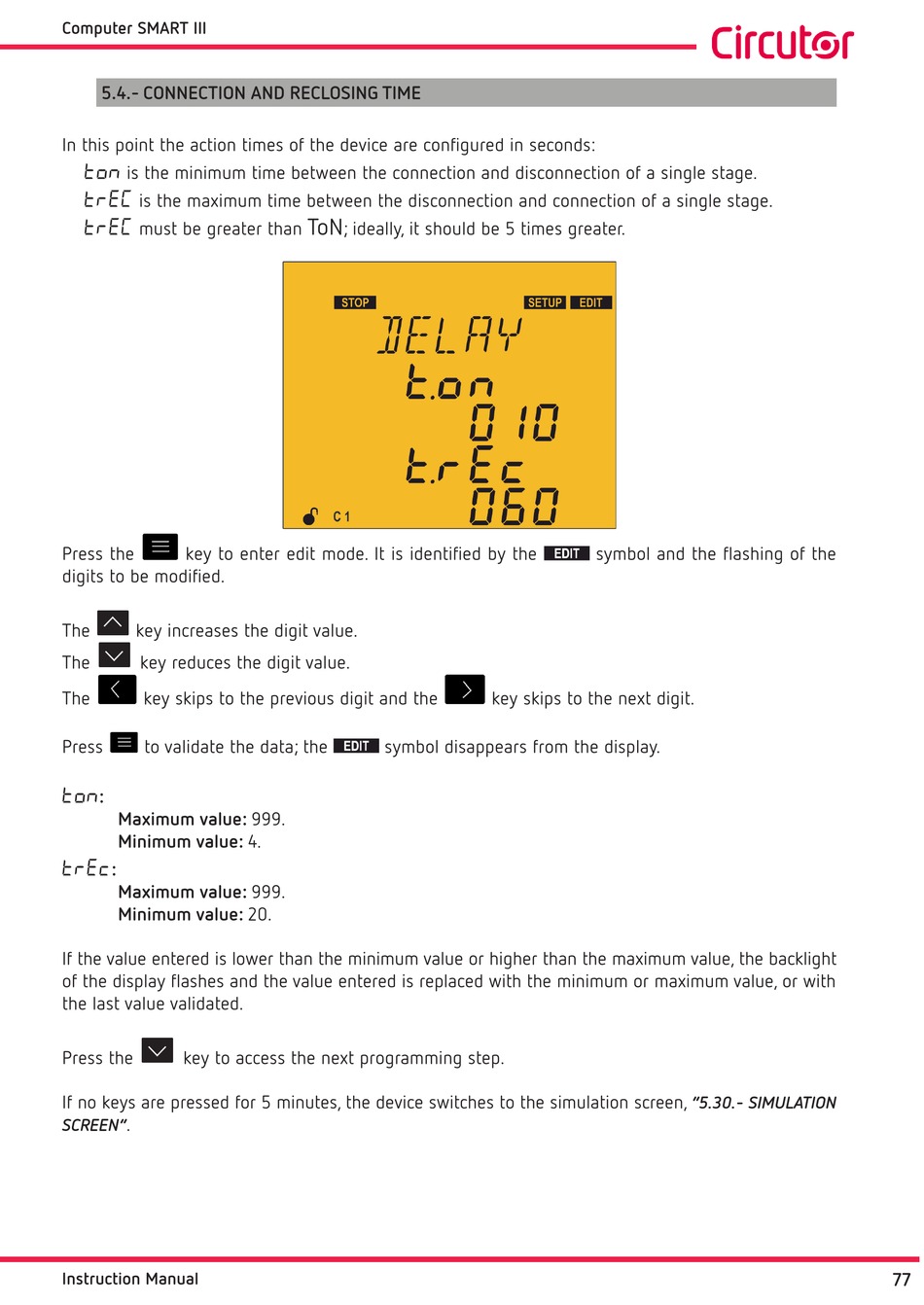

5�4�- CONNECTION AND RECLOSING TIME
In this point the action times of the device are configured in seconds:
Ton
is the minimum time between the connection and disconnection of a single stage.
TREC
is the maximum time between the disconnection and connection of a single stage.
TREC
must be greater than
Press the key to enter edit mode. It is identified by the
digits to be modified.
The key increases the digit value.
The key reduces the digit value.
The key skips to the previous digit and the
Press to validate the data; the
Ton
:
Maximum value: 999.
Minimum value: 4.
Trec
:
Maximum value: 999.
Minimum value: 20.
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen,
.
SCREEN"
Instruction Manual
ToN
; ideally, it should be 5 times greater.
symbol disappears from the display.
symbol and the flashing of the
key skips to the next digit.
"5.30.- SIMULATION
