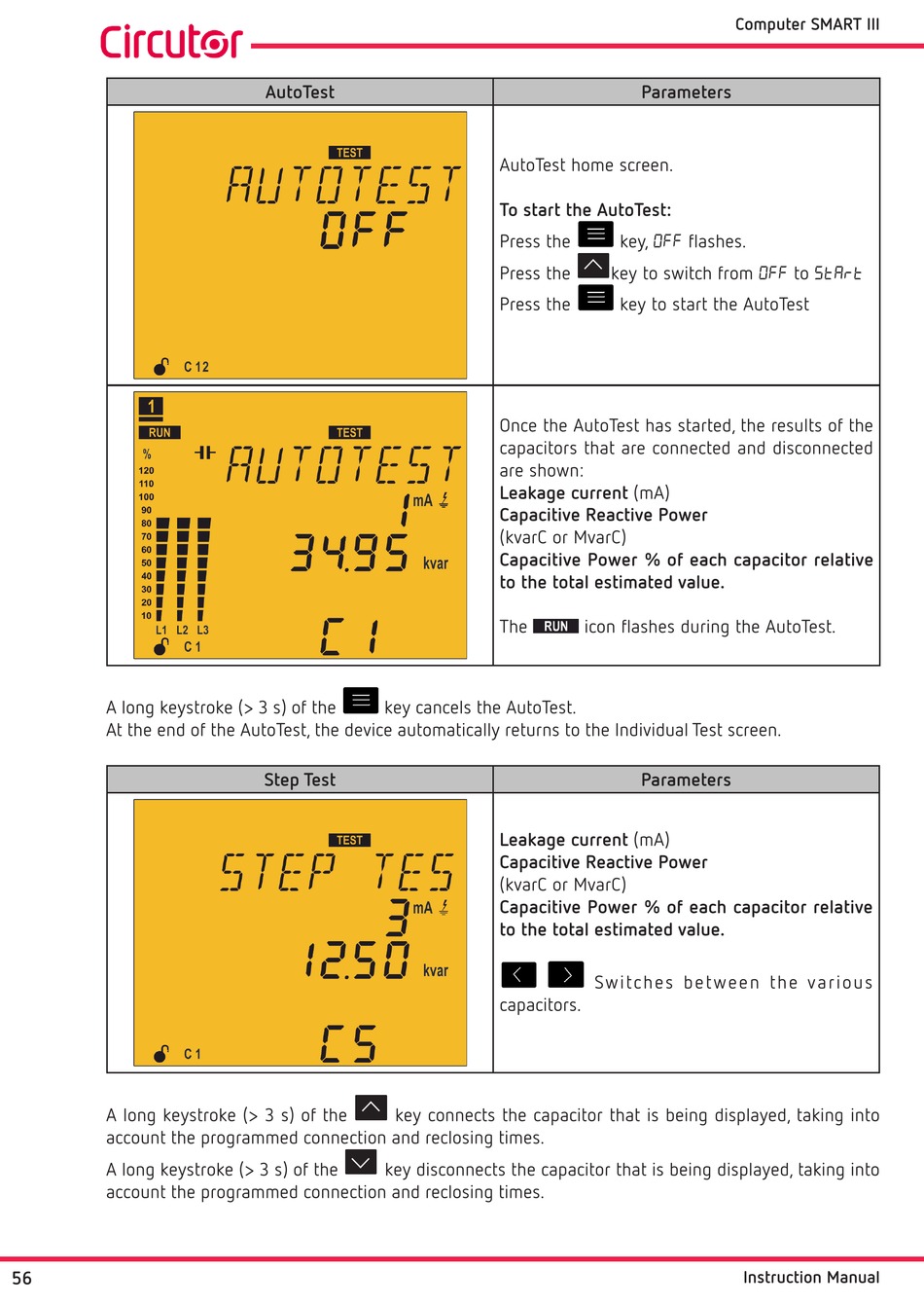

Circutor Computer SMART III 6 Instruction Manual page 56

A long keystroke (> 3 s) of the
At the end of the AutoTest, the device automatically returns to the Individual Test screen.
A long keystroke (> 3 s) of the
account the programmed connection and reclosing times.
A long keystroke (> 3 s) of the
account the programmed connection and reclosing times.
56
AutoTest
key cancels the AutoTest.
Step Test
key connects the capacitor that is being displayed, taking into
key disconnects the capacitor that is being displayed, taking into
Parameters
AutoTest home screen.
To start the AutoTest:
Press the key, OFF flashes.
Press the key to switch from OFF to START
Press the key to start the AutoTest
Once the AutoTest has started, the results of the
capacitors that are connected and disconnected
are shown:
Leakage current (mA)
Capacitive Reactive Power
(kvarC or MvarC)
Capacitive Power % of each capacitor relative
to the total estimated value�
The icon flashes during the AutoTest.
Parameters
Leakage current (mA)
Capacitive Reactive Power
(kvarC or MvarC)
Capacitive Power % of each capacitor relative
to the total estimated value�
Switches between the various
capacitors.
