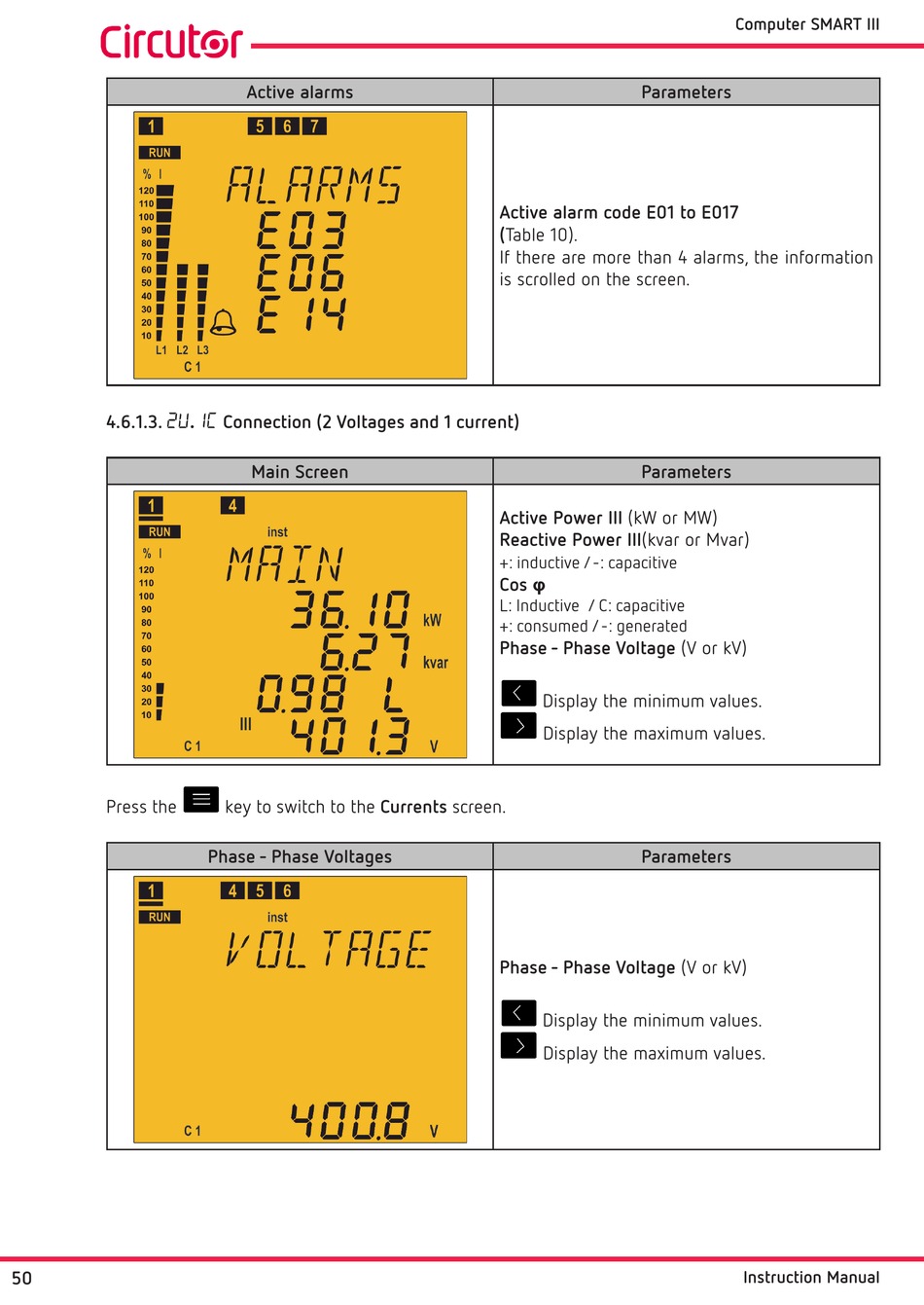

Circutor Computer SMART III 6 Instruction Manual page 50

4�6�1�3� 2U�1C
Press the
50
Active alarms
Connection (2 Voltages and 1 current)
Main Screen
key to switch to the Currents screen.
Phase - Phase Voltages
Parameters
Active alarm code E01 to E017
(Table 10).
If there are more than 4 alarms, the information
is scrolled on the screen.
Parameters
Active Power III (kW or MW)
Reactive Power III(kvar or Mvar)
+: inductive / -: capacitive
Cos
φ
L: Inductive / C: capacitive
+: consumed / -: generated
Phase - Phase Voltage (V or kV)
Display the minimum values.
Display the maximum values.
Parameters
Phase - Phase Voltage (V or kV)
Display the minimum values.
Display the maximum values.
