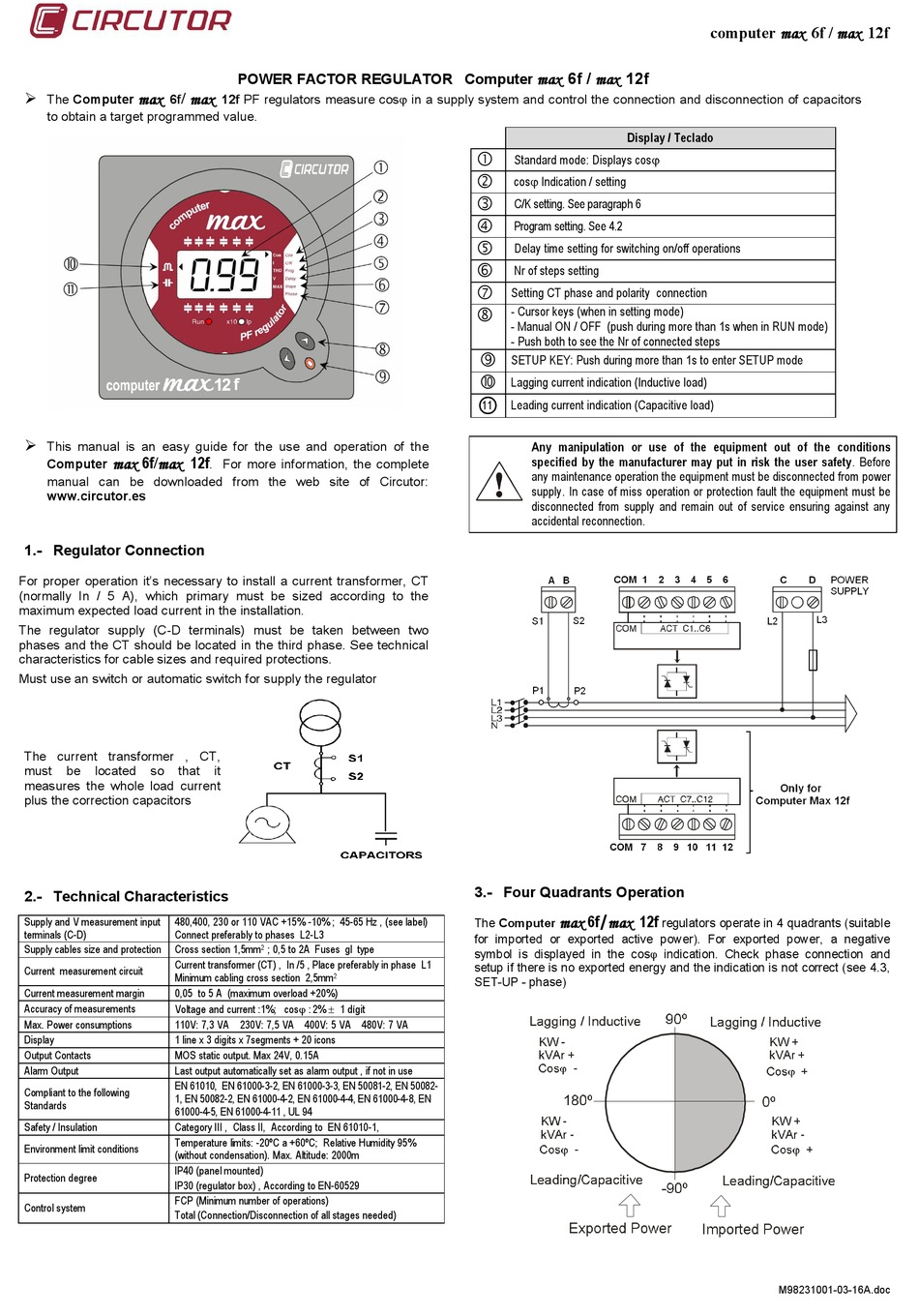

The Computer 6f
to obtain a target programmed value.

This manual is an easy guide for the use and operation of the
max 6f/max 12f
Computer
manual can be downloaded from the web site of Circutor:
www.circutor.es
1.- Regulator Connection
For proper operation it's necessary to install a current transformer, CT
(normally In / 5 A), which primary must be sized according to the
maximum expected load current in the installation.
The regulator supply (C-D terminals) must be taken between two
phases and the CT should be located in the third phase. See technical
characteristics for cable sizes and required protections.
Must use an switch or automatic switch for supply the regulator
The current transformer , CT,
must be located so that
measures the whole load current
plus the correction capacitors
2.- Technical Characteristics
Supply and V measurement input 480,400, 230 or 110 VAC +15% -10% ; 45-65 Hz , (see label)
terminals (C-D) Connect preferably to phases L2-L3
Supply cables size and protection Cross section 1,5mm
Current transformer (CT) , In /5 , Place preferably in phase L1
Current measurement circuit
Minimum cabling cross section 2,5mm
Current measurement margin 0,05 to 5 A (maximum overload +20%)
Accuracy of measurements Voltage and current :1%; cos : 2%  1 dígit
Max. Power consumptions 110V: 7,3 VA 230V: 7,5 VA 400V: 5 VA 480V: 7 VA
Display 1 line x 3 digits x 7segments + 20 icons
Output Contacts MOS static output. Max 24V, 0.15A
Alarm Output Last output automatically set as alarm output , if not in use
EN 61010, EN 61000-3-2, EN 61000-3-3, EN 50081-2, EN 50082-
Compliant to the following
1, EN 50082-2, EN 61000-4-2, EN 61000-4-4, EN 61000-4-8, EN
Standards
61000-4-5, EN 61000-4-11 , UL 94
Safety / Insulation Category III , Class II, According to EN 61010-1,
Temperature limits: -20ºC a +60ºC; Relative Humidity 95%
Environment limit conditions
(without condensation). Max. Altitude: 2000m
IP40 (panel mounted)
Protection degree
IP30 (regulator box) , According to EN-60529
FCP (Minimum number of operations)
Control system
Total (Connection/Disconnection of all stages needed)
POWER FACTOR REGULATOR Computer
12f PF regulators measure cos in a supply system and control the connection and disconnection of capacitors
. For more information, the complete
it
2 ; 0,5 to 2A Fuses gl type
2
max 6f / max 12f
Display / Teclado

Standard mode: Displays cos

cos Indication / setting

C/K setting. See paragraph 6

Program setting. See 4.2

Delay time setting for switching on/off operations

Nr of steps setting

Setting CT phase and polarity connection
 - Cursor keys (when in setting mode)
- Manual ON / OFF (push during more than 1s when in RUN mode)
- Push both to see the Nr of connected steps

SETUP KEY: Push during more than 1s to enter SETUP mode

Lagging current indication (Inductive load)
Leading current indication (Capacitive load)
11
Any manipulation or use of the equipment out of the conditions
specified by the manufacturer may put in risk the user safety. Before
any maintenance operation the equipment must be disconnected from power
supply. In case of miss operation or protection fault the equipment must be
disconnected from supply and remain out of service ensuring against any
accidental reconnection.
3.- Four Quadrants Operation
max 6f/max 12f
The Computer
for imported or exported active power). For exported power, a negative
symbol is displayed in the cos indication. Check phase connection and
setup if there is no exported energy and the indication is not correct (see 4.3,
SET-UP - phase)
computer max 6f / max 12f
regulators operate in 4 quadrants (suitable
M98231001-03-16A.doc
