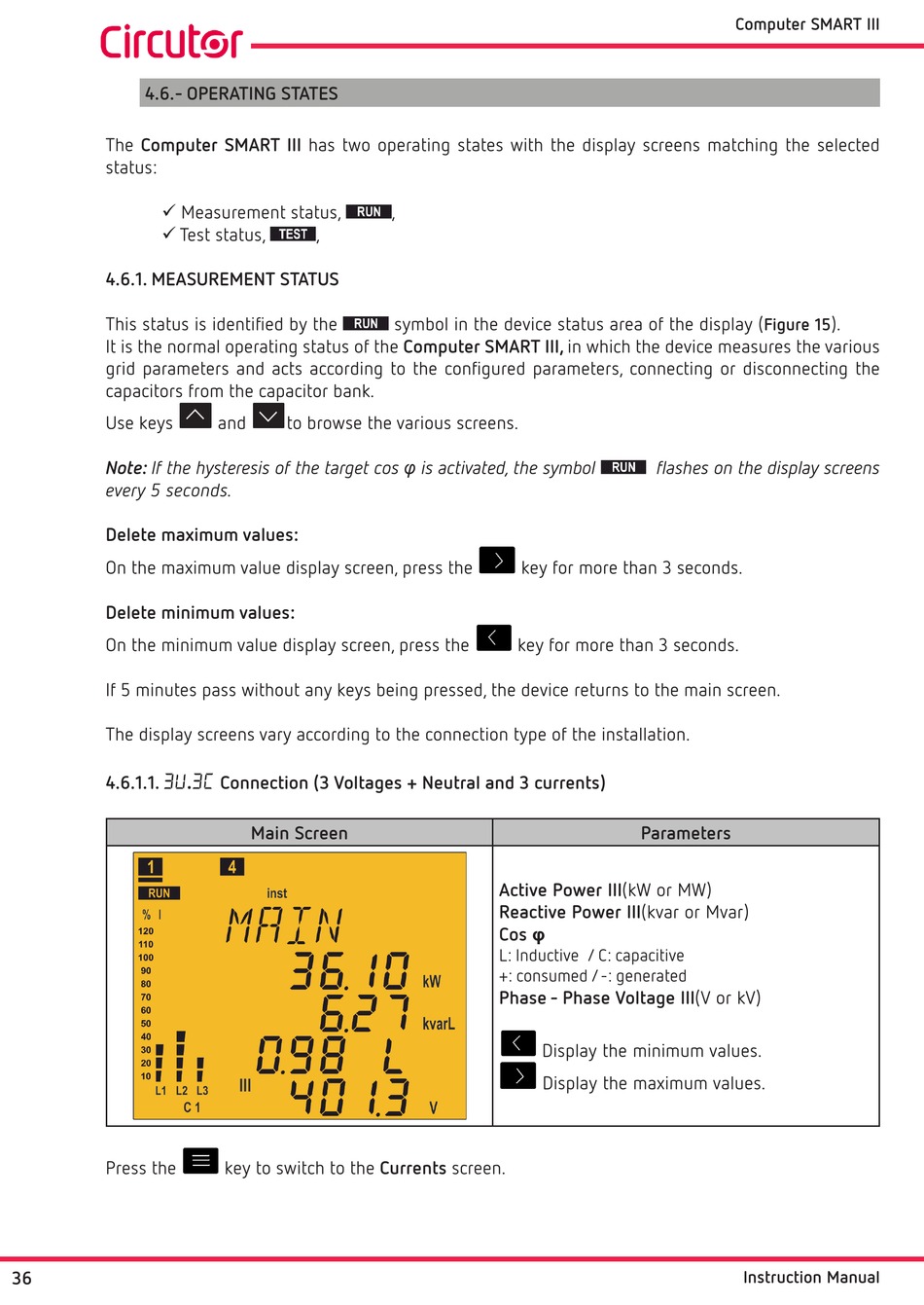

4�6�- OPERATING STATES
The Computer SMART III has two operating states with the display screens matching the selected
status:
 Measurement status,
 Test status,
4�6�1� MEASUREMENT STATUS
This status is identified by the
It is the normal operating status of the Computer SMART III, in which the device measures the various
grid parameters and acts according to the configured parameters, connecting or disconnecting the
capacitors from the capacitor bank.
Use keys
Note: If the hysteresis of the target cos φ is activated, the symbol
every 5 seconds.
Delete maximum values:
On the maximum value display screen, press the
Delete minimum values:
On the minimum value display screen, press the
If 5 minutes pass without any keys being pressed, the device returns to the main screen.
The display screens vary according to the connection type of the installation.
4�6�1�1� 3U�3C
Press the
36
,
,
and to browse the various screens.
Connection (3 Voltages + Neutral and 3 currents)
Main Screen
key to switch to the Currents screen.
symbol in the device status area of the display (
key for more than 3 seconds.
key for more than 3 seconds.
Active Power III(kW or MW)
Reactive Power III(kvar or Mvar)
Cos
φ
L: Inductive / C: capacitive
+: consumed / -: generated
Phase - Phase Voltage III(V or kV)
Display the minimum values.
Display the maximum values.
Computer SMART III
Figure 15
flashes on the display screens
Parameters
