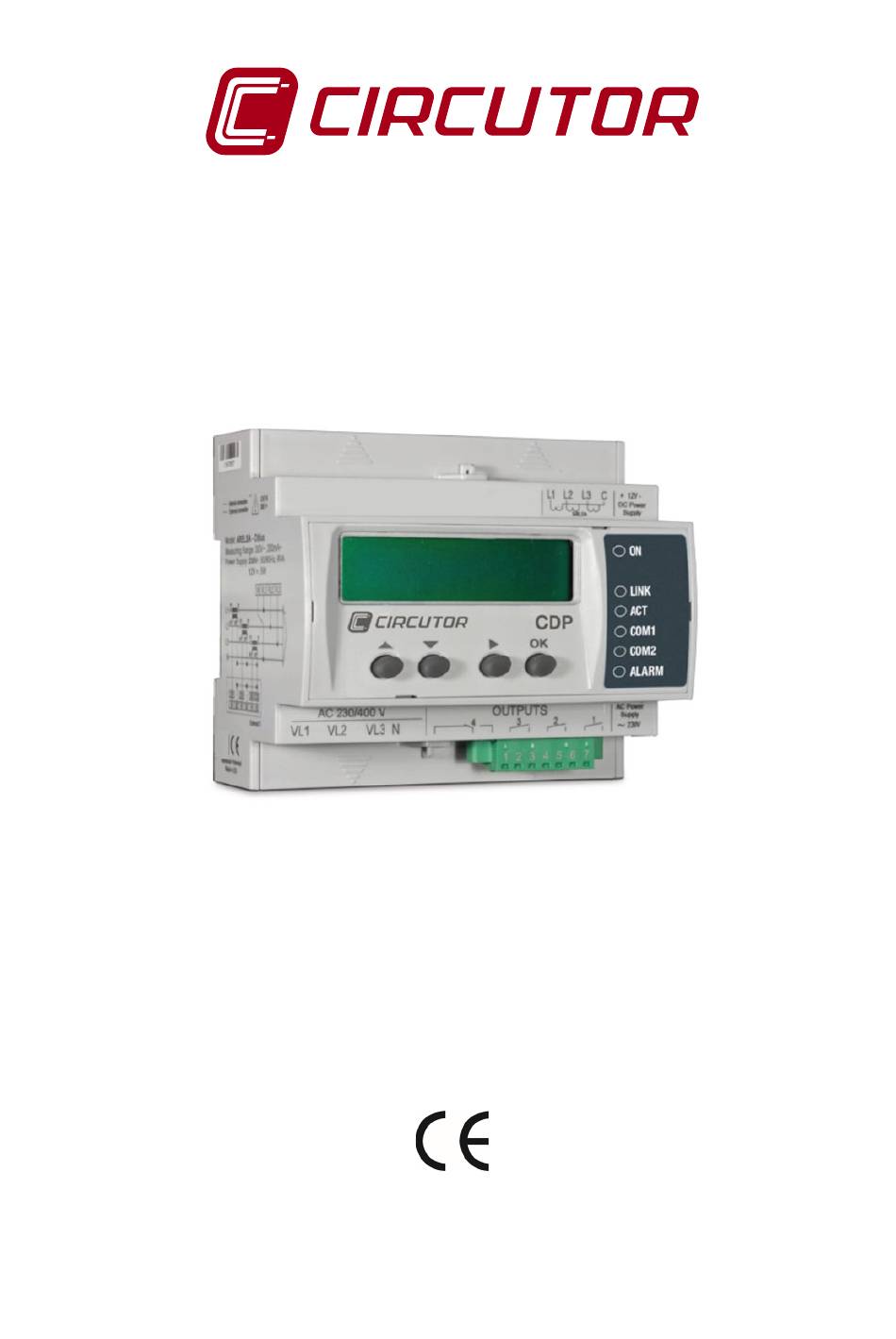

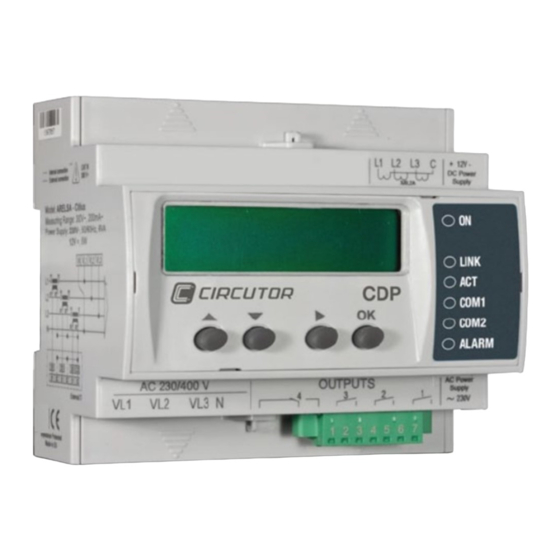

- Page 1 Connection and configuration of a CDP with Fronius MB inverters APPLICATION NOTES (M028E0601-03-19A)
- Page 2 Application notes...
-
Page 3: Safety Precautions
In this manual, if the instructions marked with this symbol are not respected or fol- lowed correctly, it can result in injury or damage to the unit and /or installations CIRCUTOR, SA reserves the right to modify features or the product manual without prior notification. DISCLAIMER CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. -
Page 4: Table Of Contents
3.1.- COMMUNICATION CABLE ......................12 3.1.1. INVERTER CONNECTION ....................12 3.1.2. CONNECTION OF SEVERAL INVERTERS ..............13 3.2.- INVERTER COMMUNICATION CONFIGURATION ...............14 4.- CDP CONFIGURATION ....................... 20 5.- COMMUNICATIONS TEST AND REGULATION ............... 22 5.1.- COMMUNICATIONS TEST ......................22 5.2.- REGULATION TEST ........................23 6.- MAINTENANCE AND TECHNICAL SERVICE ................24 7.- GUARANTEE .......................... -
Page 5: Log Of Revisions
LOG OF REVISIONS Table 1: Log of revisions. Date Revision Description 03/15 M028E0601-03-15A Original version Changes in the following sections: 09/15 M028E0601-03-15B 2.- 2.1.2. – 3.1.- 3.1.2.- 4.1.2. Changes in the following sections: 10/15 M028E0601-03-15C 1. – 2.1. – 3.1. – 4.1. – 4.2.1.- 5 – 6 Changes in the following sections: 11/15 M028E0601-03-15D... -
Page 6: Introduction
4. Fronius ECO WLAN (three-phase) 5. Fronius Primo WLAN (single-phase) The CDP stores the nominal power value of the inverter to be controlled in its configuration and periodically sends the inverter the percentage of said power to be generated. Consequently, when the CDP communicates with the Fronius inverter it is constantly sending it a regulation percentage. -
Page 7: Fronius Galvo, Primo, Symo And Eco Inverter With Wlan
Description Terminal The communications card has a final switch bus for communications between CDP and the inverter which is located on the bottom of the antenna WLAN that must be on “ON” position as shown in the Figure 2 Application notes... -
Page 8: Inverter Connection
Figure 2: Final switch bus position. 2.1.1. INVERTER CONNECTION Figure 3 shows the connection between the CDP and a single inverter. Connect the end bus terminal to the IN and OUT terminals. Figure 3: Connection between a CDP and a single Fronius inverter. -
Page 9: Connection Of Several Inverters
CDP and several inverters. Figure 5 Figure 5: Connection between a CDP and several Fronius inverters. The master / slave selector must be in the Master position (Figure 4). If there are several inverters, the communication cable connecting them must go from the “OUT”... -
Page 10: Inverter Communication Configuration
2.2.- INVERTER COMMUNICATION CONFIGURATION The following describes how to use the display to configure the inverter for ensuring correct communication with the CDP. The AC side of the inverter must be connected to the mains before it can turn on. -
Page 11: Protocol Type Configuration
2.2.2 PROTOCOL TYPE CONFIGURATION For correct communication between the CDP and the inverter, the inverter must be set up with the SOLAR NET protocol. Go to the following path to change the protocol of the inverter: Config DATCOM Protocol type ... -
Page 12: Fronius Ig Plus Inverter With Modbus Card
3.- FRONIUS IG PLUS INVERTER WITH MODBUS CARD The CDP and the inverter communicate via an RS-422 bus. This RS-422 bus can connect up to 100 inverters, although the number of inverters in the vast majority of domestic installations ranges from 1 to 3. -
Page 13: Connection Of Several Inverters
3.1.2. CONNECTION OF SEVERAL INVERTERS Figure 7 shows the connection between the CDP and several inverters. Figure 8: Connection between a CDP and several Fronius IG Plus inverters. If there are several inverters, the communication cable connecting them must go from the “IN”... -
Page 14: Inverter Communication Configuration
3.2.- INVERTER COMMUNICATION CONFIGURATION Three parameters need to be changed in this type of inverter in order to obtain correct communication between the CDP and the inverter. Table 6: Configuration parameters for communication with the CDP. Value for communication Description... - Page 15 Application notes...
- Page 16 Application notes...
- Page 17 Application notes...
- Page 18 Application notes...
- Page 19 Application notes...
-
Page 20: Cdp Configuration
The CDP has a configuration web site where all the parameters of the connected inverter have to be entered. To do so, enter "/setup" at the end of the navigation bar where the CDP is monitoring so that the following, for example, appears in the navigation bar: “10.0.110.212/setup”... - Page 21 The most important inverter parameters that have to be configured in the CDP are (Table 7): Table 7: Parameters to be configured in the CDP. Parameter Description Inverter model, in this case selecting: Fronius Inverter type Inverter power Total power to be controlled by the CDP.
-
Page 22: Communications Test And Regulation
The flashing rate is one flash per second (if there is one inverter) and 1/n if there are several inverters (where "n" is the number of inverters connected). If the COM1 LED is off, it means the CDP is not communicating with the inverter. In this case check the communication cables and the inverter communication configuration. -
Page 23: Regulation Test
Let us suppose a 3000W inverter generating 1400W. This value can be displayed on the inverter. If we now program the CDP indicating that the inverter power is 6000W, the CDP will send the inverter a new setpoint to change its MPPT and the inverter will reduce the photovoltaic generation by 50% and generate 700W. -
Page 24: Maintenance And Technical Service
CIRCUTOR accepts no liability due to the possible damage to the unit or • other parts of the installation, nor will it cover any possible sanctions de- rived from a possible failure, improper installation or "improper usage"... - Page 25 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.es...
